JW31-160 Ton Punching Press Machine for Metal

JW31-160 Ton Punching Press Machine for Metal thumbnail-1
JW31-160 Ton Punching Press Machine for Metal thumbnail-2
JW31-160 Ton Punching Press Machine for Metal thumbnail-3
JW31-160 Ton Punching Press Machine for Metal thumbnail-4
JW31-160 Ton Punching Press Machine for Metal thumbnail-5
JW31-160 Ton Punching Press Machine for Metal photo-1

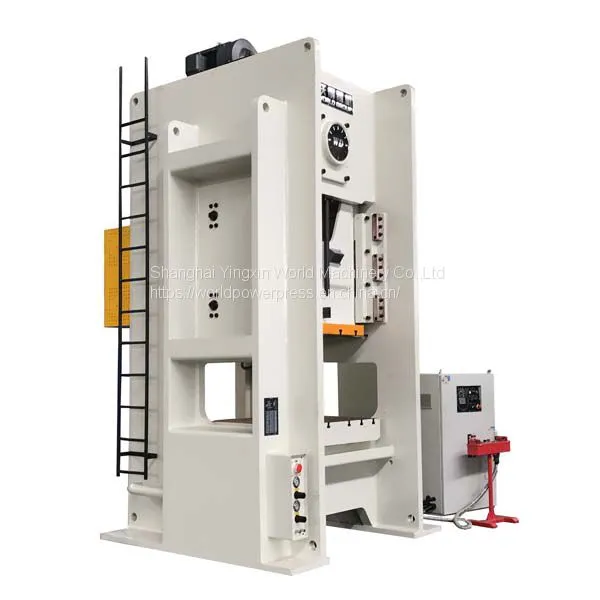

JW31-160 Ton Punching Press Machine for Metal photo-2

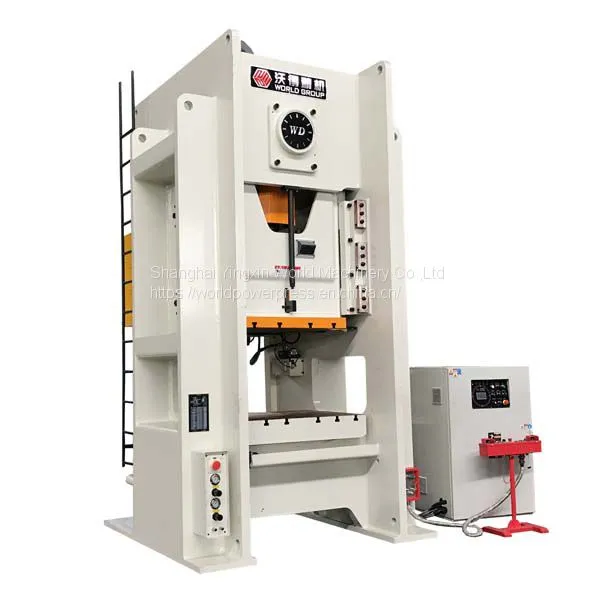

JW31-160 Ton Punching Press Machine for Metal photo-3

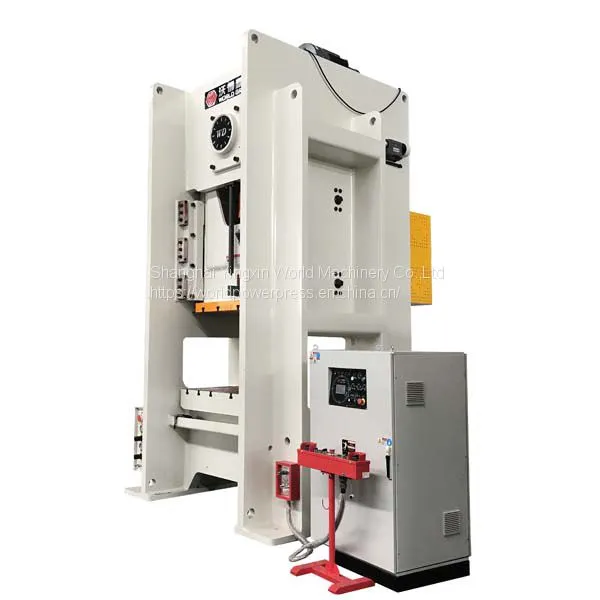

JW31-160 Ton Punching Press Machine for Metal photo-4
JW31-160 Ton Punching Press Machine for Metal photo-5
US$ 38000 - 45000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
WORLD
Place of Origin:
China
Model Number:
JW31-160
Contact Supplier Request Quote Chat Now
Shanghai Yingxin World Machinery Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China
Delivery Detail:
45 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name WORLD
Place of Origin China
Model Number JW31-160
Certification CE,ISO
After-sales Service Provided Engineers available to service machinery overseas
Warranty 12 months
Weight 16000 kg
Dimension(L*W*H) 2200*1780*3800 mm
Voltage 380 v
Condition New
Power(W) 15 kw
CNC or Not Normal
Power Source Mechanical



Item
Code
Unit
JW31-160
JW31-200
JW31-250
Nominal Capacity
Pe
kn
1600
2000
2500
Slide Stroke
s
mm
180
200
220

Slide Stroke Speed
Fixed
n
spm
45
35
30
Variable (Optional)
n
spm
35-55
35-55
20-35
Max. Die Shut Height
H2
mm
400
450
500
Die Shut Height Adjustment
t
mm
110
110
120

Side Window Size
F-B
E
mm
650
750
800
Height
F
mm
350
420
430
Distance Between Uprights
G
mm
1100
1200
1300

Table Size
F-B
D
mm
650
750
800
L-R
C
mm
1000
1100
1200
Thickness
H3
mm
165
180
190
Table Hole Diameter
mm
180
200
200

Slide Bottom Size
F-B
b
mm
600
700
750
L-R
a
mm
750
850
950
Table Surface Height
H1
mm
1005
1115
1205

Overall Dimensions
F-B
A
mm
2200
2300
2500
L-R
B
mm
1780
2000
2050
Height
H
mm
3800
4200
4500
Motor Power
kw
15
18.5
22
Weight (Approximate)
kg
16000
22000
27500
Item
Code
Unit
JW31-315
JW31-400
JW31-500
Nominal Capacity
Pe
kn
3150
4000
5000
Slide Stroke
s
mm
220
250
250

Slide Stroke Speed
Fixed
n
spm
30
25
20
Variable (Optional)
n
spm
20-35
20-30
15-25
Max. Die Shut Height
H2
mm
550
600
650
Die Shut Height Adjustment
t
mm
120
120
120

Side Window Size
F-B
E
mm
850
900
1000
Height
F
mm
480
520
650
Distance Between Uprights
G
mm
1350
1450
1650

Table Size
F-B
D
mm
850
900
1000
L-R
C
mm
1250
1350
1500
Thickness
H3
mm
190
200
220
Table Hole Diameter
mm
220
220
220

Slide Bottom Size
F-B
b
mm
800
850
950
L-R
a
mm
1000
1100
1250
Table Surface Height
H1
mm
1215
1225
1225

Overall Dimensions
F-B
A
mm
2600
2700
3100
L-R
B
mm
2200
2370
2600
Height
H
mm
4550
4900
5400
Motor Power
kw
30
37
45
Weight (Approximate)
kg
30000
36500
47500
Description:

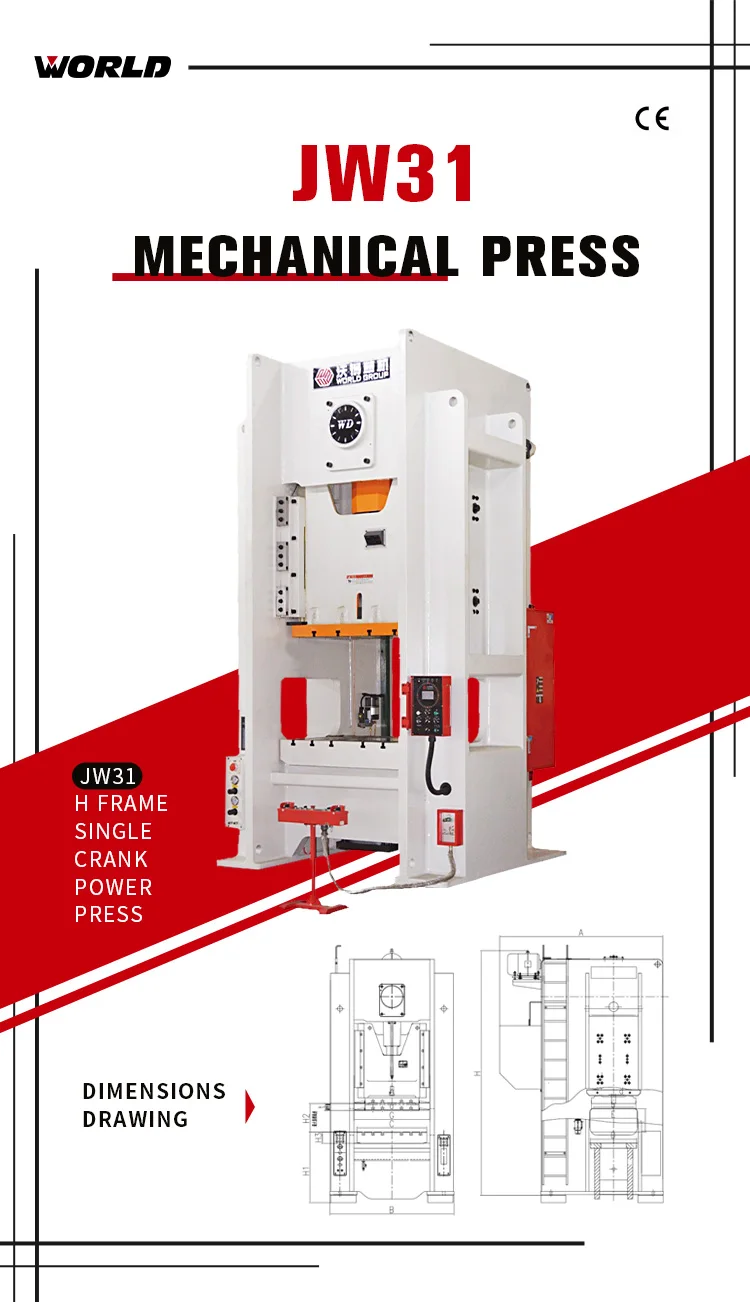

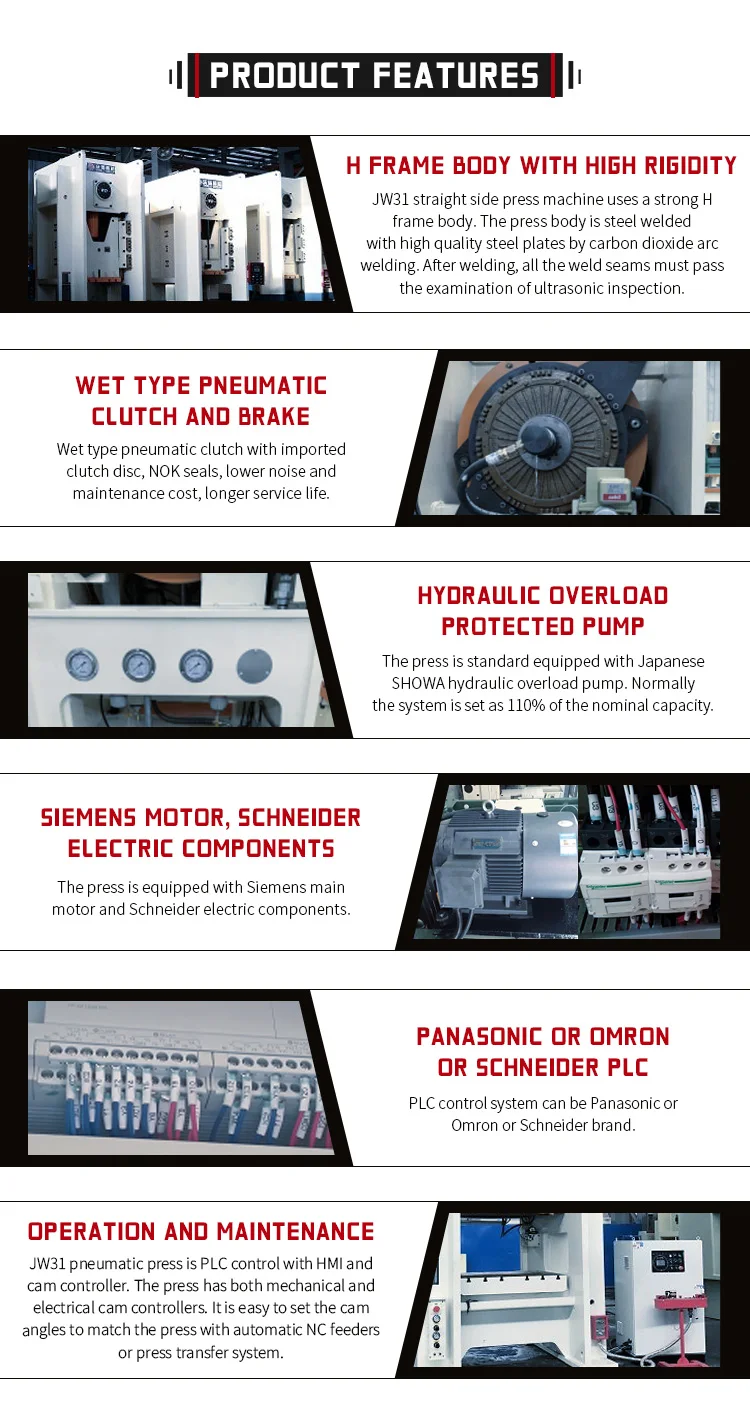

JW31 H frame single crank power press is applicable to light, thin material, for single, and progressive die application in blanking, piercing, bending, forming, interlink with ROT line or transfer unit. High rigidity frame, applications suitable for various kinds of stamping works. The press capacity is from 160 ton to 630 ton. Slide guide 8 faces for higher precision.




JH21-25 WORLD flywheel punch press machine


Product Tags: press machine , punching machine , press machine for metal , punching press machine , 160 ton press machine
