JH21-25 Ton Stamping Press Punch Machine

JH21-25 Ton Stamping Press Punch Machine thumbnail-1
JH21-25 Ton Stamping Press Punch Machine thumbnail-2
JH21-25 Ton Stamping Press Punch Machine thumbnail-3
JH21-25 Ton Stamping Press Punch Machine thumbnail-4
JH21-25 Ton Stamping Press Punch Machine thumbnail-5
JH21-25 Ton Stamping Press Punch Machine photo-1

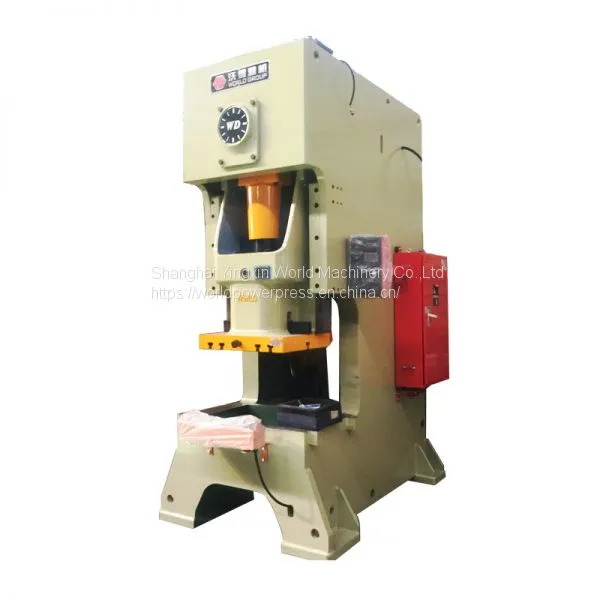

JH21-25 Ton Stamping Press Punch Machine photo-2

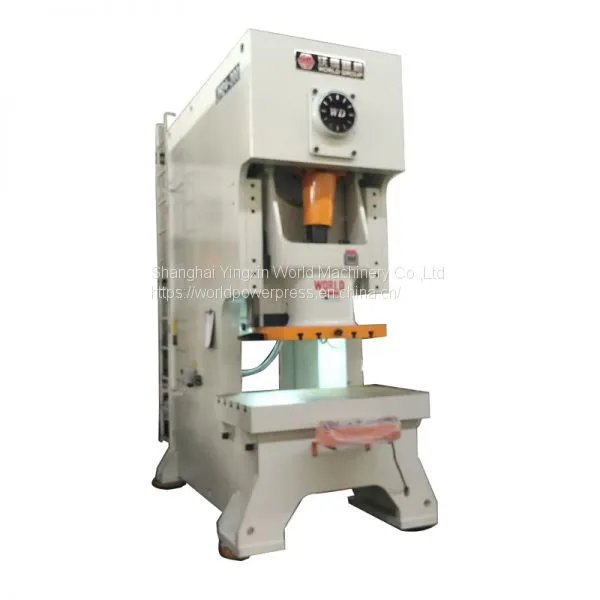

JH21-25 Ton Stamping Press Punch Machine photo-3

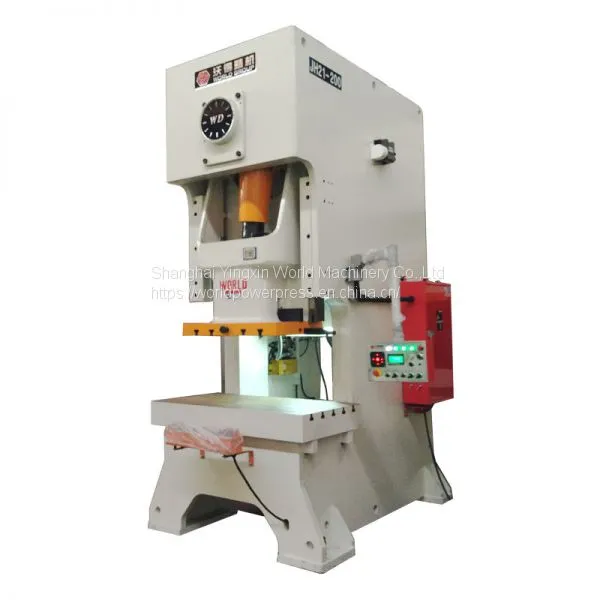

JH21-25 Ton Stamping Press Punch Machine photo-4

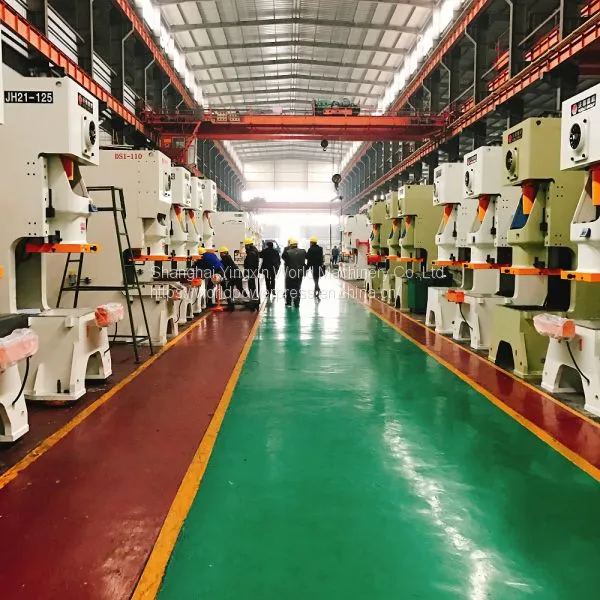

JH21-25 Ton Stamping Press Punch Machine photo-5
US$ 11000 - 12500 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
WORLD
Place of Origin:
China
Model Number:
JH21-25
Contact Supplier Request Quote Chat Now
Shanghai Yingxin World Machinery Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name WORLD
Place of Origin China
Model Number JH21-25
Certification ISO, CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty 12 Months
Weight 2450 kg
Dimension(L*W*H) 1500*945*2120 mm
Voltage 380 v
Condition New
Power(W) 3 kw
CNC or Not Normal
Power Source Mechanical

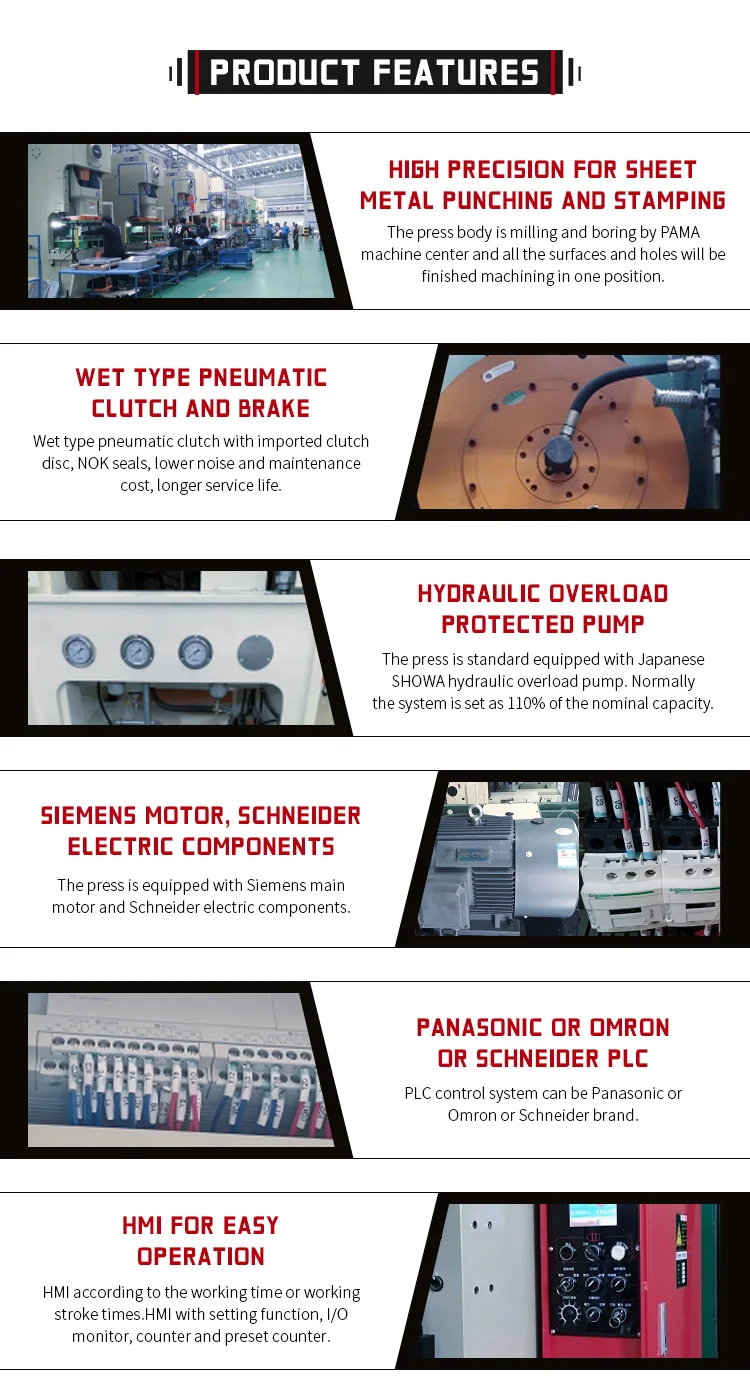

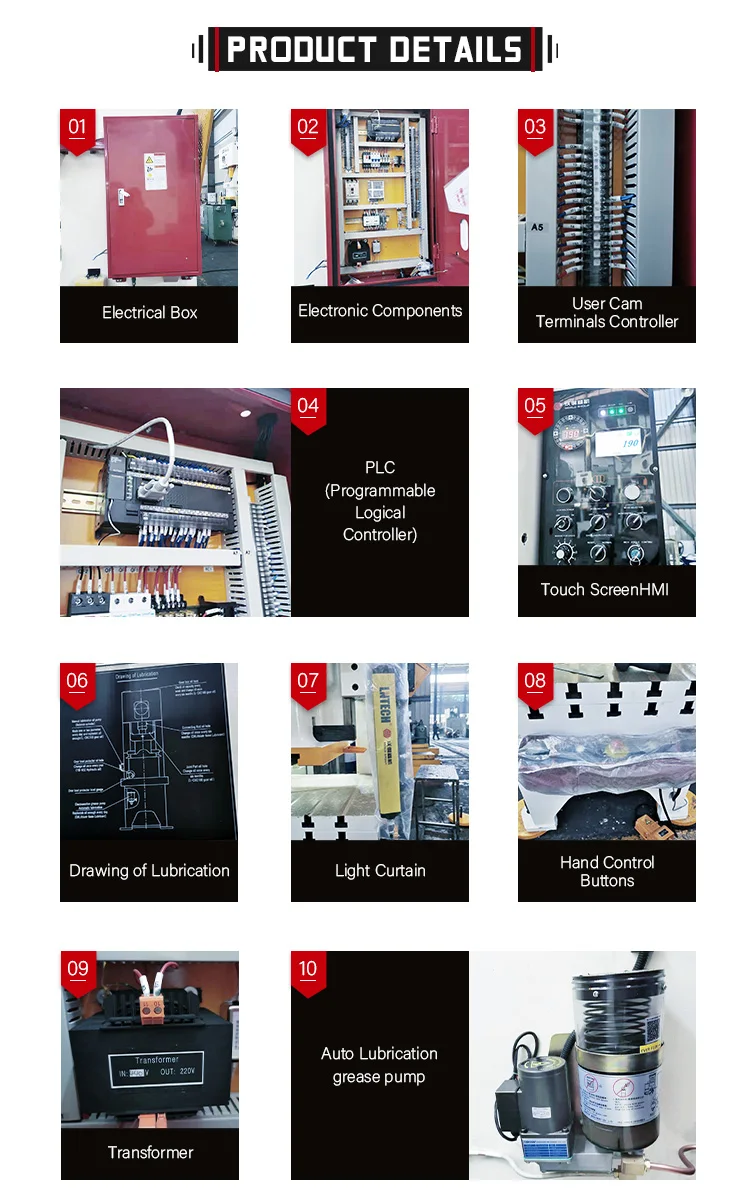

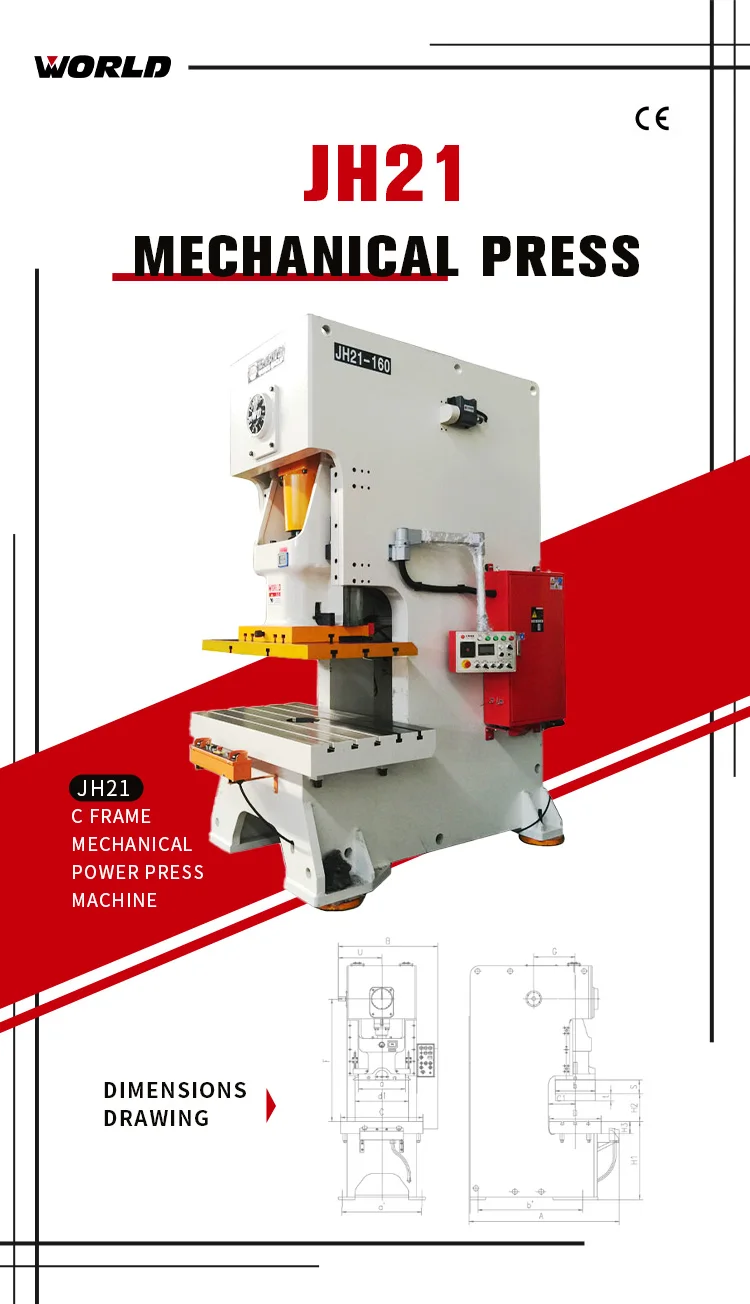

1,Steel welded body, tempering treatment, high rigidity, accuracy and stability.

  • Cross located crankshaft, compact structure.

  • 2,The crankshaft undergoes grinding treatment after high frequency quenching.

  • 3,Lengthened rectangular guide-way with a surface of bronze plate.

  • 4,Pneumatic dual balance cylinder, which balances the slide block and ounch weight to reduce noise and impact.

  • 5,PLC control and imported safety dual valve.

  • 6,Wet clutch and hydraulic overload protected pump.

  • 7,Both auto grease lubrication system and manual thin oil lubrication system.

  • 8,Both electrical and mechanical cam controller with encoder.

  •  9,Motorized slide adjustment (60ton and bigger presses).

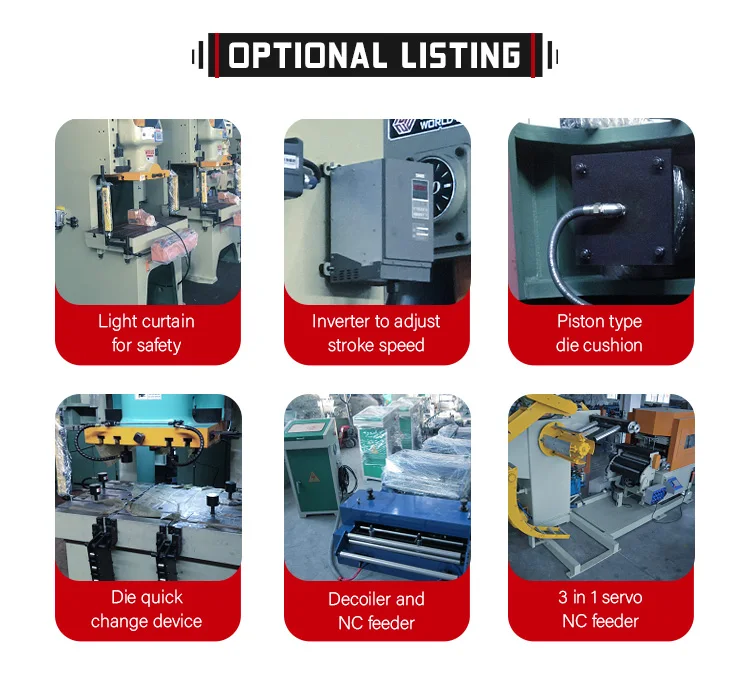

  • Item
    Code
    Unit
    JH21-25
    JH21-45
    JH21-60
    JH21-80
    JH21-100
    JH21-125
    Nominal Capacity
    Pe
    kn
    250
    450
    600
    800
    1000
    1250
    Slide Stroke Length
    S
    mm
    80
    120
    140
    160
    160
    180
    Slide Strokes
    Fixed
    spm
    100
    80
    70
    60
    55
    50
    Variable (optional)
    spm
    60-120
    50-95
    45-85
    40-75
    35-65
    35-65
    Max. Die Shut Height
    H2
    mm
    250
    270
    300
    320
    335
    350
    Die Shut Height Adjustment
    t
    mm
    50
    60
    70
    80
    90
    90
    Throat Depth
    C1
    mm
    210
    225
    270
    310
    330
    350
    Distance Between Uprights
    d1
    mm
    450
    515
    560
    610
    670
    670
    Slide Bottom Size
    FB
    b
    mm
    250
    340
    400
    460
    520
    520
    LR
    a
    mm
    360
    410
    480
    540
    620
    620
    Shank Hole Size
    Diameter
    d
    mm
    40
    50
    50
    50
    70
    70
    Depth
    I
    mm
    65
    60
    70
    65
    90
    90
    Table Size
    FB
    D
    mm
    400
    440
    520
    600
    640
    680
    LR
    C
    mm
    720
    825
    930
    950
    1060
    1100
    Thickness
    H3
    mm
    80
    110
    130
    140
    145
    155
    Table Hole Diameter
    ¢
    mm
    150
    150
    150
    180
    180
    200
    Overall Specs
    FB
    A
    mm
    1500
    1585
    1540
    1765
    2000
    2040
    LR
    B
    mm
    945
    1075
    1200
    1200
    1300
    1320
    Height
    H
    mm
    2120
    2390
    2570
    2725
    3010
    3035
    Motor Power
    kw
    3
    5.5
    5.5
    7.5
    7.5
    11
    Weight (approximate)
    kg
    2450
    3550
    5150
    6450
    8650
    9550
  • Item
    Code
    Unit
    JH21-160
    JH21-200
    JH21-250
    JH21-315
    JH21-400
    Nominal Capacity
    Pe
    kn
    1600
    2000
    2500
    3150
    4000
    Slide Stroke Length
    S
    mm
    200
    220
    220
    220
    250
    Slide Strokes
    Fixed
    spm
    45
    45
    30
    30
    30
    Variable (optional)
    spm
    30-55
    30-55
    20-35
    20-35
    20-35
    Max. Die Shut Height
    H2
    mm
    400
    450
    500
    500
    550
    Die Shut Height Adjustment
    t
    mm
    100
    110
    120
    120
    120
    Throat Depth
    C1
    mm
    400
    430
    450
    450
    490
    Distance Between Uprights
    d1
    mm
    736
    910
    980
    980
    1050
    Slide Bottom Size
    FB
    b
    mm
    580
    650
    700
    700
    750
    LR
    a
    mm
    700
    880
    950
    950
    1020
    Shank Hole Size
    Diameter
    d
    mm
    70
    70
    70
    70
    70
    Depth
    I
    mm
    100
    100
    130
    130
    130
    Table Size
    FB
    D
    mm
    760
    840
    880
    880
    950
    LR
    C
    mm
    1175
    1390
    1500
    1540
    1700
    Thickness
    H3
    mm
    165
    180
    190
    190
    210
    Table Hole Diameter
    ¢
    mm
    220
    240
    260
    260
    280
    Overall Dimension
    FB
    A
    mm
    2305
    2600
    2660
    2720
    2850
    LR
    B
    mm
    1420
    1540
    1640
    1680
    1750
    Height
    H
    mm
    3215
    3800
    3850
    3850
    4140
    Motor Power
    kw
    15
    18.5
    22
    30
    37
    Weight (approximate)
    kg
    13600
    19200
    23200
    26600
    29500


JH21-25 WORLD flywheel punch press machine
