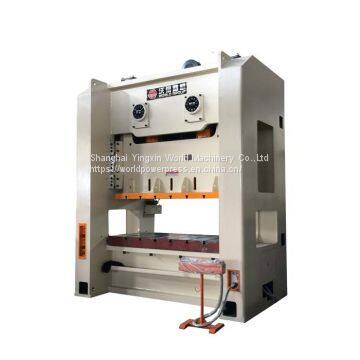

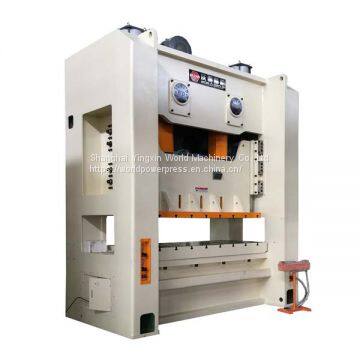

JW36-110 H Frame Double Point Sheet Metal Punching Machine

JW36-110 H Frame Double Point Sheet Metal Punching Machine thumbnail-1
JW36-110 H Frame Double Point Sheet Metal Punching Machine thumbnail-2
JW36-110 H Frame Double Point Sheet Metal Punching Machine thumbnail-3
JW36-110 H Frame Double Point Sheet Metal Punching Machine thumbnail-4
JW36-110 H Frame Double Point Sheet Metal Punching Machine thumbnail-5
JW36-110 H Frame Double Point Sheet Metal Punching Machine photo-1
JW36-110 H Frame Double Point Sheet Metal Punching Machine photo-2
JW36-110 H Frame Double Point Sheet Metal Punching Machine photo-3

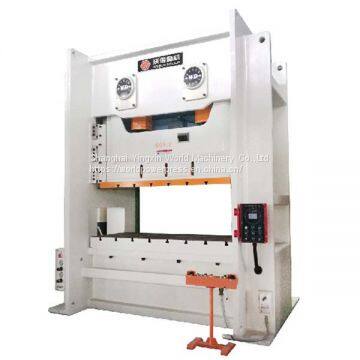

JW36-110 H Frame Double Point Sheet Metal Punching Machine photo-4

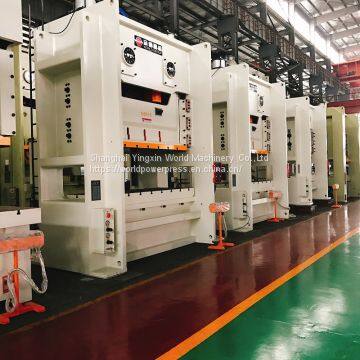

JW36-110 H Frame Double Point Sheet Metal Punching Machine photo-5
US$ 46000 - 49000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
WORLD
Place of Origin:
China
Model Number:
JW36-110
Contact Supplier Request Quote Chat Now
Shanghai Yingxin World Machinery Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai China
Delivery Detail:
45 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name WORLD
Place of Origin China
Model Number JW36-110
Certification ISO,CE
After-sales Service Provided Engineers available to service machinery overseas
Warranty 12 months
Weight 18000 kg
Dimension(L*W*H) 2050*2400*3450 mm
Voltage 380 v
Condition New
Power(W) 11 kw
CNC or Not Normal
Power Source Mechanical






Item
Code
Unit
JW36-110
JW36-160
JW36-200
JW36-250
Nominal Capacity

kn
1100
1600
2000
2500
Slide Stroke Length
S
mm
180
200
250
280
Slide Stroke Speed
Fixed

spm
50
45
35
30
Variable (Optional)

spm
35-55
35-55
25-40
20-35
Max. Die Shut Height
H2
mm
400
450
500
550
Die Shut Height Adjustment
t
mm
90
100
110
120
Side Window Size
F-B
E
mm
650
800
900
950
Height
F
mm
350
400
450
460
Distance Between Uprights
G
mm
1750
1900
2290
2570
Table Size
F-B
D
mm
700
760
900
1000
L-R
C
mm
1650
1800
2200
2500
Thickness
H3
mm
140
150
170
180
Slide Bottom Size
F-B
b
mm
600
700
800
900
L-R
a
mm
1350
1500
1900
2200
Table Surface Height
H1
mm
1035
1035
1135
1235
Overall Dimensions
F-B
A
mm
2050
2400
2650
2900
L-R
B
mm
2400
2650
3150
3450
Height
H
mm
3450
3950
4280
4800
Motor Power

kw
11
18.5
22
30
Weight (Approximate)

kg
18000
22000
33000
42000
Item
Code
Unit
JW36-315
JW36-400
JW36-500
Nominal Capacity

kn
3150
4000
5000
Slide Stroke Length
S
mm
280
300
300
Slide Stroke Speed
Fixed

spm
30
20
20
Variable (Optional)

spm
20-35
15-24
15-23
Max. Die Shut Height
H2
mm
550
600
650
Die Shut Height Adjustment
t
mm
120
130
130
Side Window Size
F-B
E
mm
950
1000
1100
Height
F
mm
460
550
600
Distance Between Uprights
G
mm
2570
2810
3200
Table Size
F-B
D
mm
1000
1100
1200
L-R
C
mm
2500
2700
3000
Thickness
H3
mm
190
200
210
Slide Bottom Size
F-B
b
mm
900
1000
1100
L-R
a
mm
2200
24000
2700
Table Surface Height
H1
mm
1285
1340
1340
Overall Dimensions
F-B
A
mm
3000
3150
3400
L-R
B
mm
3450
3700
4200
Height
H
mm
4900
5500
6000
Motor Power

kw
37
45
55
Weight (Approximate)

kg
43000
56000
77000
Description:

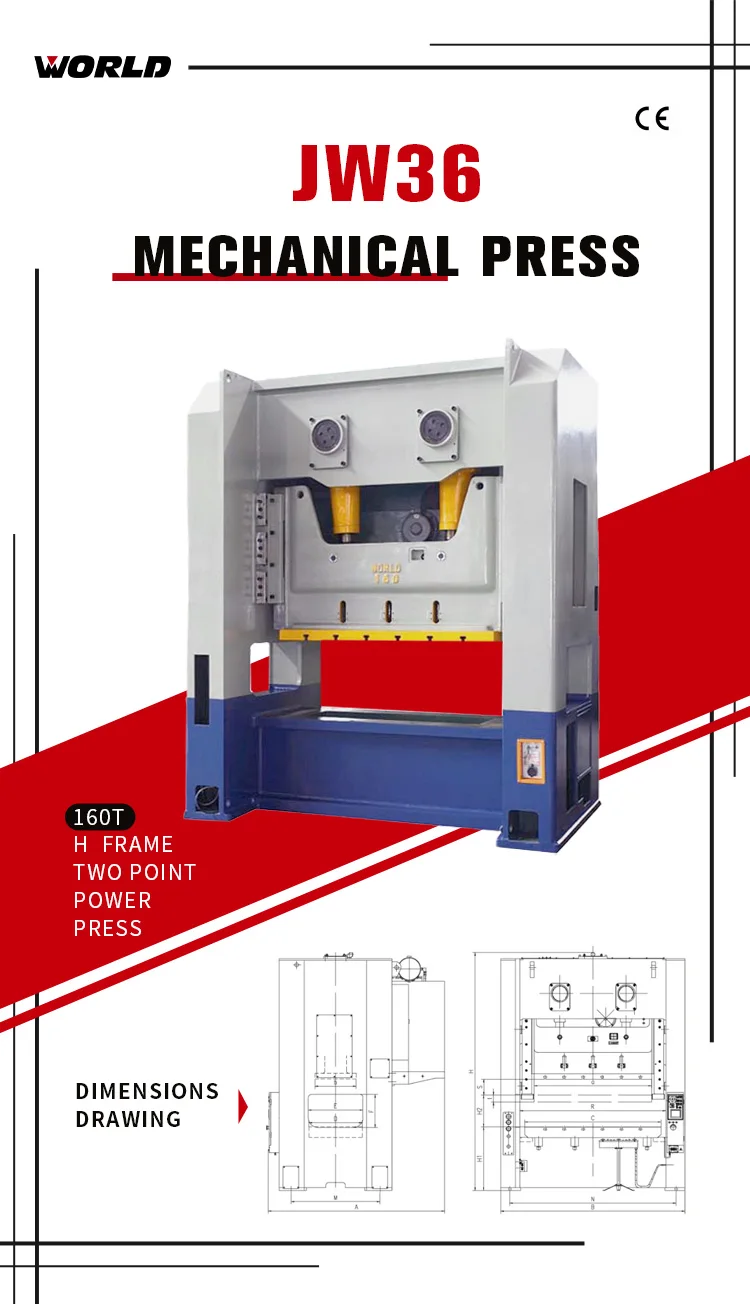

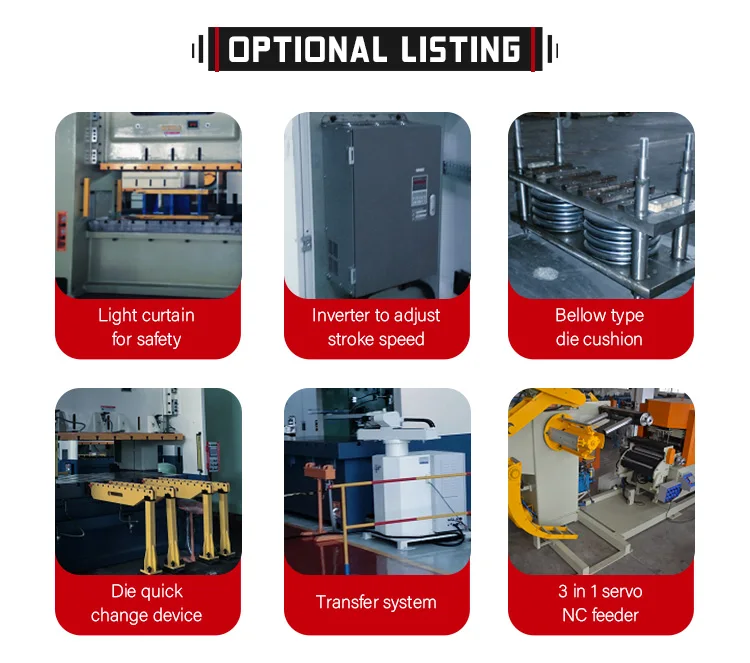

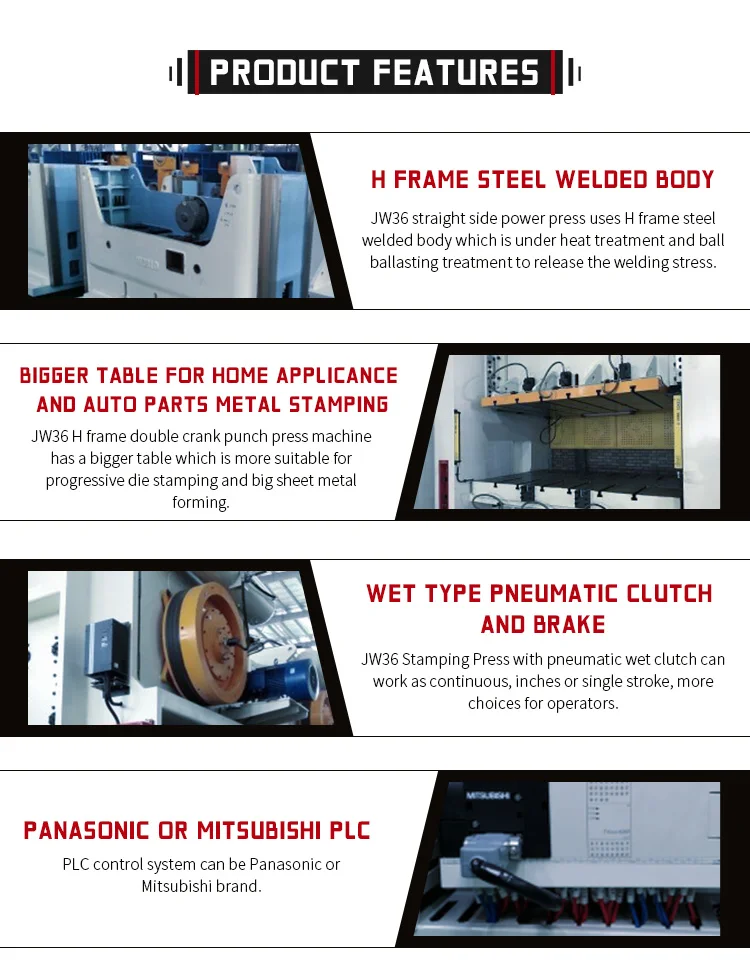

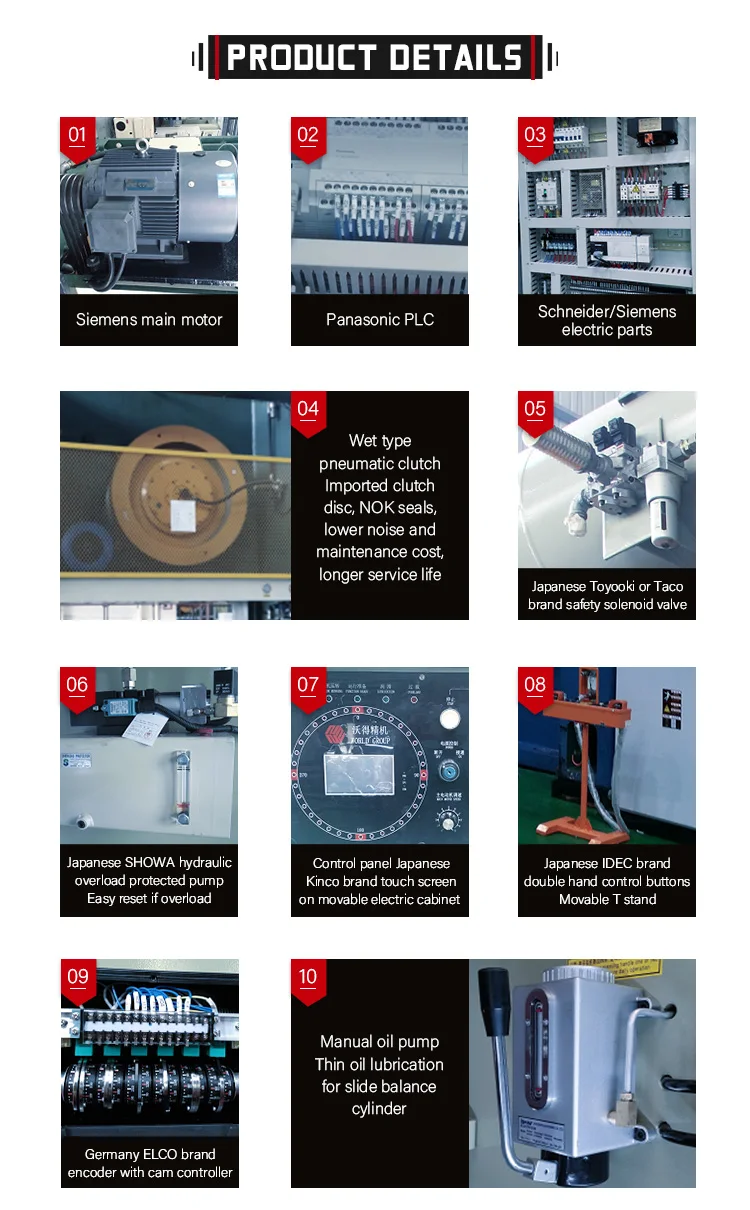

JW36 H frame double crank power press machine (mechancial press, press machine,punching machine,stamping press), capacity from 110ton to 630ton, welded steel body, PLC control, wet clutch, hydraulic overload protected, auto lubricated, touch screen control. Bigger table better for big sheet stamping and progressive die stamping process. The press can work with NC feeder and transfer system for automatic press line.


JH21-25 WORLD flywheel punch press machine


Product Tags: H frame Power Press , Punching Machine , Metal Punching Machine
