PAH-D Series 600-800W AC to DC Converter ac dc Power Supply
- Shanghai
- T/T L/C PayPal Other
- 7 days
You May Like
Product Details
| Brand Name | Pengtu | Place of Origin | China | |
| Model Number | PAH1000-220S48-D | Type | Other, AC/DC Converter | |

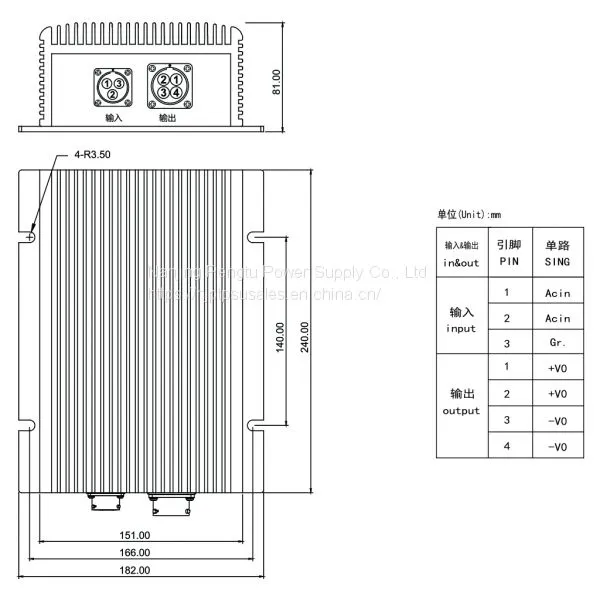

| Size | 240.00*182.00*81.00mm | Weight | 500G | |
| Output Power | Other, 800-1000W | Output Type | Single | |
| Output Current | 20.8A | Output Frequency | 100-200KHZ | |
| Output Voltage | 48V | Input Voltage | 176-264V |
Product Description
PAH-D Series 800-1000W Power Modules 220vac to 12vdc 24vdc 48vdc.Product details are as follows:
※Features
●Wide range of input voltage
●Broadband noise filter of input
●Surge suppress circuit of input
●Comply with UL 1950, IEC950 safety regulation
●Attractive outline design
●Terminal connection method
●Fast dynamic response
Conditions:All specifications are tested under the room temperature 25℃, normal rated input voltage and pure negative normal load.
※Input Characteristic
Voltage range
220VAC (Normal Rated Value):176~264 VAC PFC 100-240 VAC for optional
※Output Characteristic
●Voltage set-point accuracy ……±2%
●Line Regulation (Main) ……±0.5%
●Load regulation (Main) ……±0.5%
●Output Current Limited ……120%(Type)
●Output current ………6-60A for optional
●Output voltage ………5-48V
●Power …………800-1000W
※General Characteristic
●Switching frequency ………100-200 KHz
●Isolation resistance ………200 MΩ
※Isolation voltage
●Input-output: >1500 VAC/MIN (Leakage current<5mA)
●Input-case: >1500 VAC/MIN (Leakage current<5mA)
●Output-case: >500 VDC/MIN
※Environmental Characteristic
●Case Temperature ………………………Industry: -25-+85℃
Military I: -40-+85℃
Military II: -55-+85℃
●Storage temperature ……………………Industry: -45+105℃
Military: -55-+105℃
※Protection Features
●Input under voltage protection ●Output over current protection
●Output short circuit protection ●Over temperature protection
●Input over voltage protection
※Model selection
Input V. (Vac) | Input V. range (vac) | Output V.(V) | Output Curr. (A) | Ripple &noise pk-pk (mv) | Efficiency (Typ) | Models | |
SING | 220 | 176-264/100-240 | 12 | 66.6 | 150 | 91% | PAH800-220S12-D |
220 | 176-264/100-240 | 24 | 41.6 | 300 | 92% | PAH1000-220S24-D | |
220 | 176-264/100-240 | 48 | 20.8 | 300 | 92% | PAH1000-220S48-D | |
Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to njptsaleseva@pengtucharger.com.
