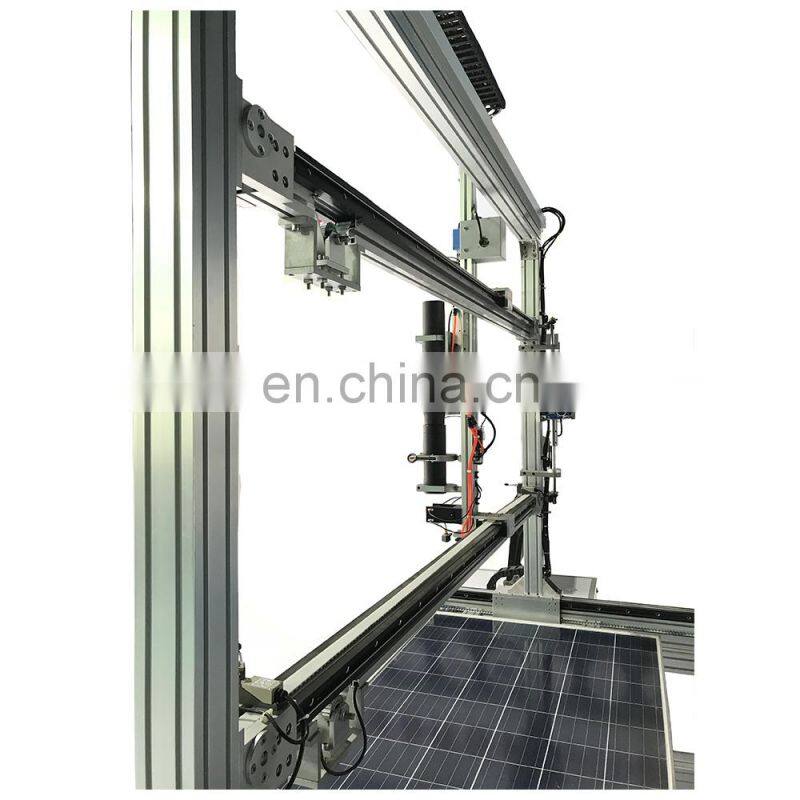

Solar Panel PV Module Ice Ball Withstand Impact Testing Machine /Ice Ball Impact Testing Equipment/hail Test

solar panel PV module Ice ball withstand impact testing machine /Ice ball impact testing equipment/hail test

Testing standard

It's conform IEC61215-2:2016 testing standard

Purpose

It’s to verify that the module is capable of withstanding the impact of hailstones

The Mainly Feature

1,The Testing machine’s raw material: Aluminum profile structure  (firm and Antirust)2,Can satisfy 2.5m×1.5m solar panel size, ( It’s can adjustable, and suit for different solar panel’s size testing)

3,Launch device

   a. Power source is air compressor

   b. Air pressure :6-8bar

   c. Ice Ball Single filled by Manual

   d. The Barrel length approx 940mm

   e. The barrel can change

4,The guide ways is high quality import guide rail

5,Driving ways adopt import servo motor+synchronous wheel

Moving locating device

1,X shaft move distance approx 2.6m

2,Y shaft move distance approx 1.6m

3,Locating accurate:≤1mm

4,Impact area:2.5×1.5m ( Adjustable , It’s can suit different size solar panel testing)

5,Locating control ways is PC control and automaitc locating

Testing Velocity System and Theory

1,The ice ball through the infrared test velocity sensor , meanwhile catch Infrared by breaking time  T, according to the V=S/T calculation ice ball flight velocity

2,Infrared test speed sensor accurate:±5%

3,The speed catch range:0-50m/s

Ice ball diameter, mass and speed

Ice ball mould specifications

1,1 mould with 6 ice ball , each ice ball size with 2set mould

2,The Mould material:Special materials and the ice ball easy take off from the mould

3,The Mould process : CNC processing

Software operate feature

1,Computer opeate and control software by HOTOTECH researched and development, easy   operate and test data stable

2,The software support Chinese and English , with the Switching function

3,Fotware display the impact point, impact speed, ice ball diameter etc

4,The testing data can save, inquiry and print

5,Testing data export is World , Excel, PDF, JPG etc format
