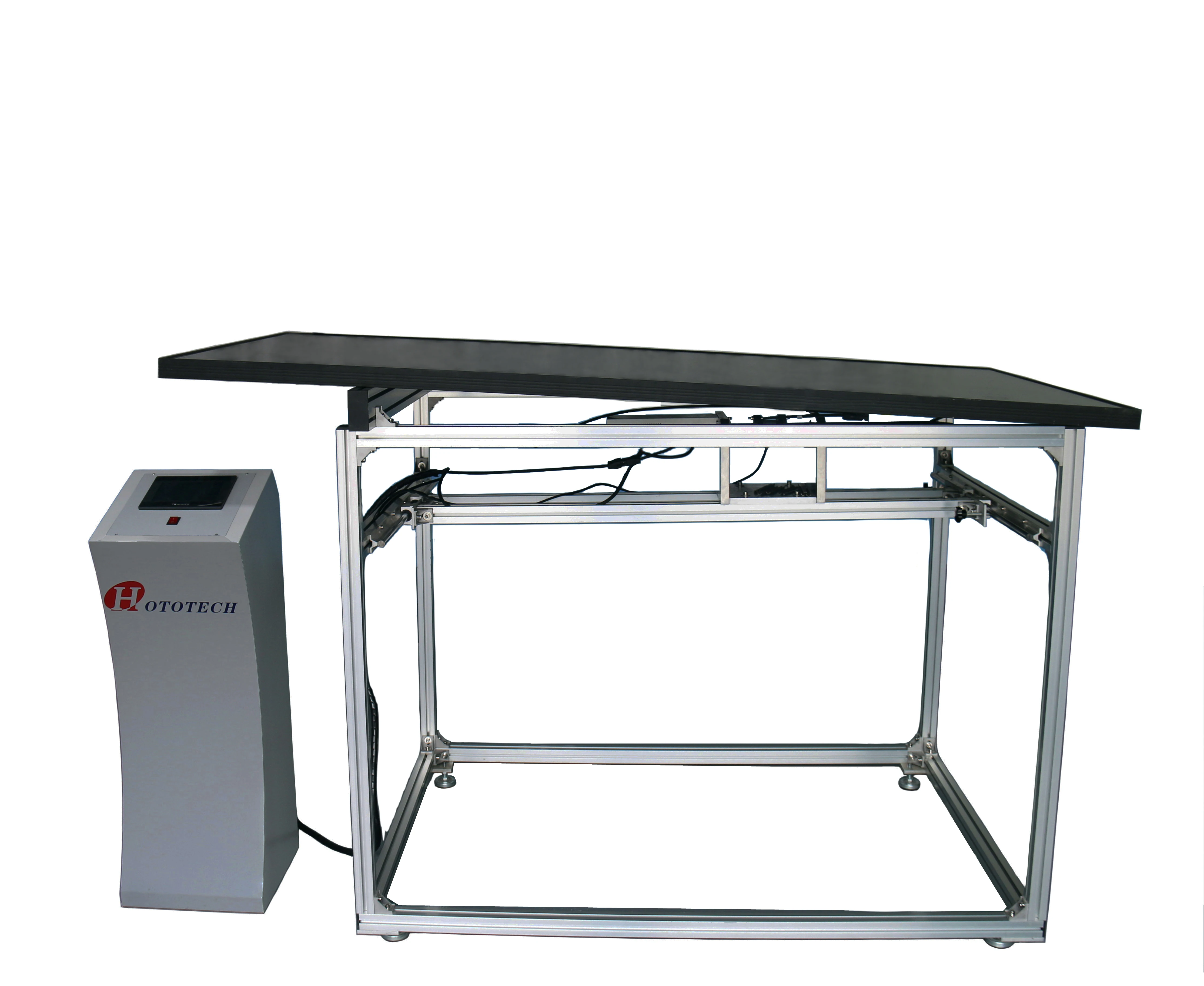

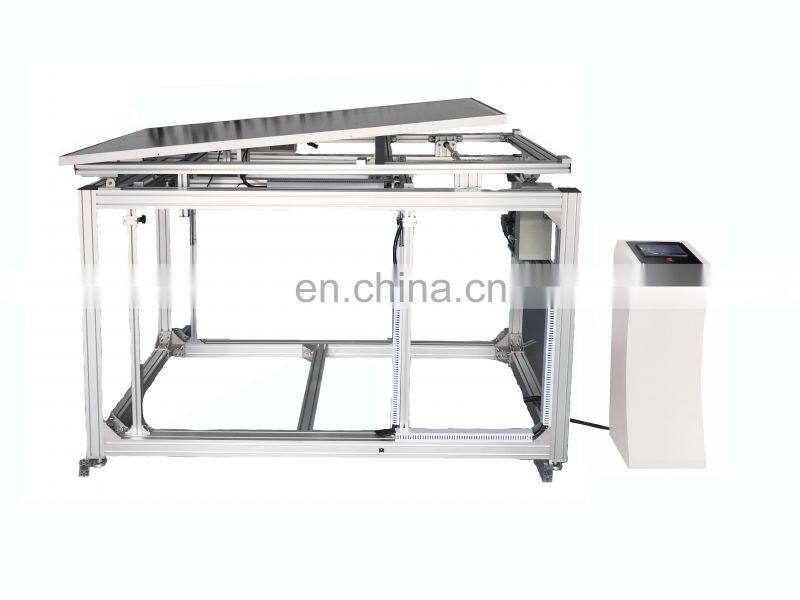

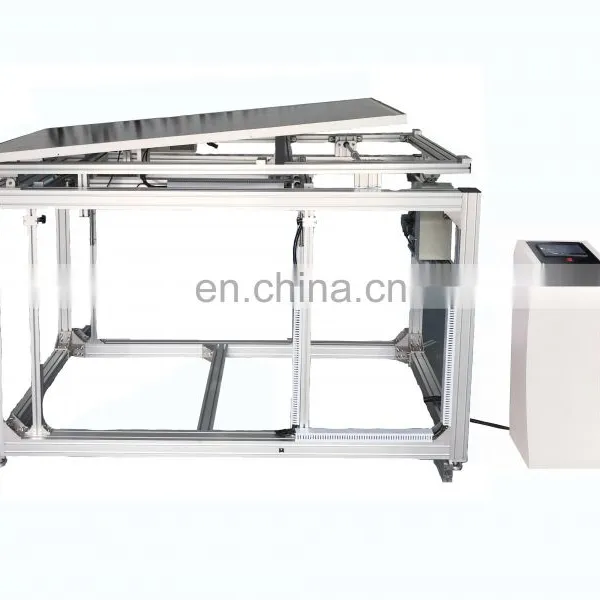

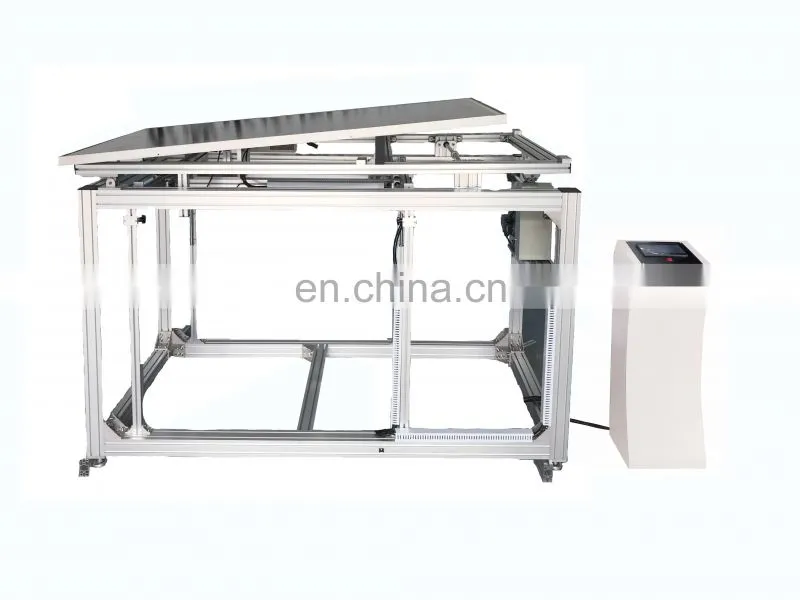

PV Module Cables torsion testing equipment/twisting force testing machine/torque force testing apparatus
Testing standard
It's conform IEC61730-2:2016 testing standard
Purpose
It’s to determine that the terminations, the attachment of the terminations, and the attachment of the cables to the body of the module will withstand stresses that are likely to be applied during normal assembly or handling operations, test in 4.14.2 (MQT14.1) and test in 4.14.3 (MQT 14.2) are to be performed
The Main Technical Sepcifications
| Testing standard | IEC61730-2:2016 testing |
Apply force device |
servo motor |
Test time |
1min (can set) |
| Display ways | Automatic show the torsion |
| Control ways | Touch screen |
| Electricity | 220V 50HZ |
Testing procedure
1. After the pull test the specimen shall be mounted in the test apparatus for torque test
2. The unloaded cable shall be marked so that any torsion relative to the gland can be easily detected, and then a torque shall be applied for 1min
3.During the test, the twist or torsion inside the cable gland or other cord anchorage shall not exceed 45°, the cable shall be held in position by the cord anchorage
