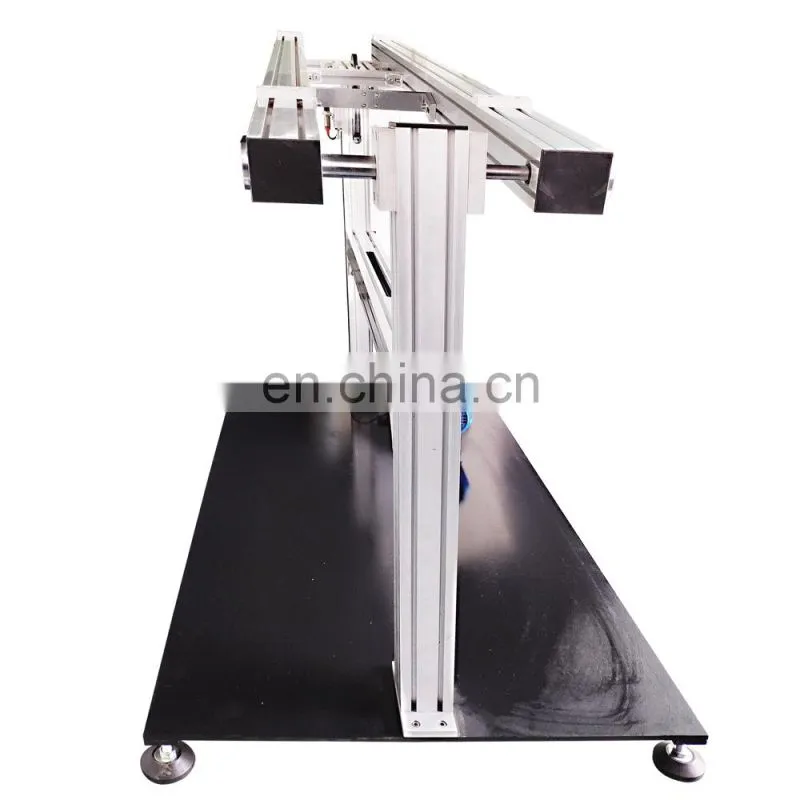

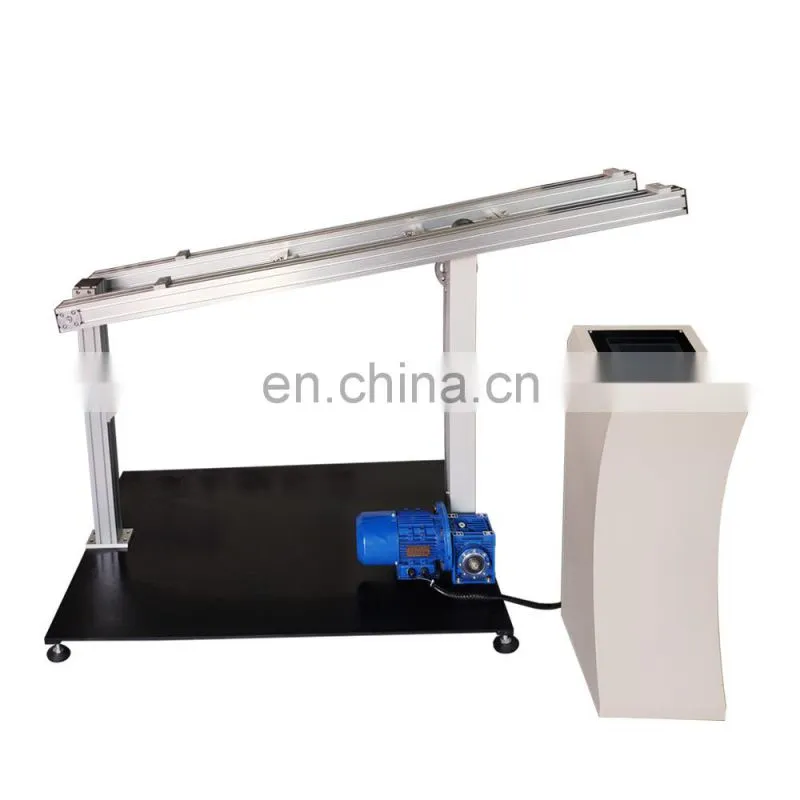

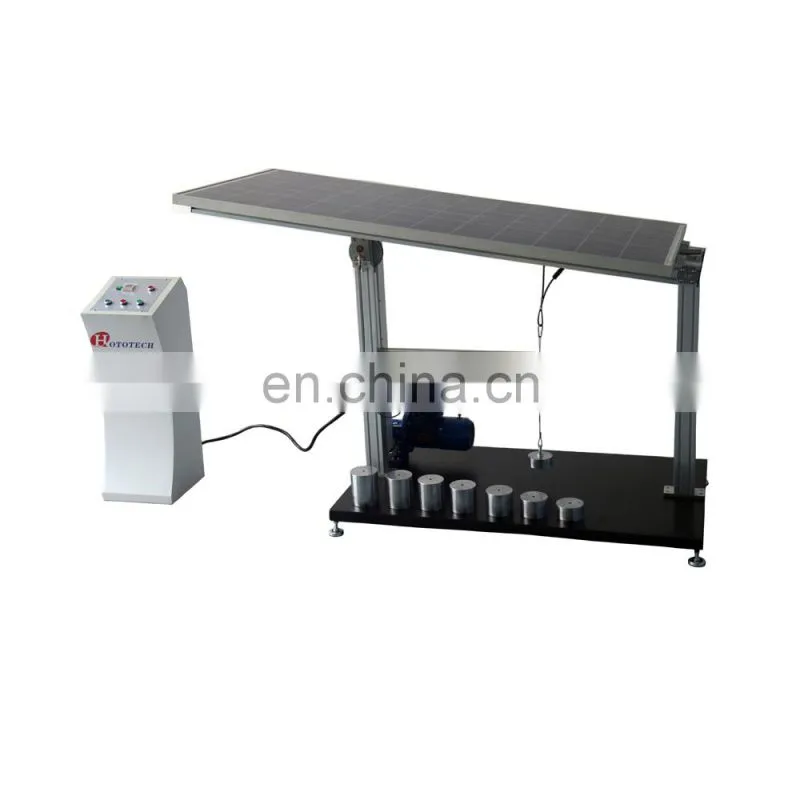

IEC61215-2 Solar panel PV module Cord Anchorage pull testing machine /pv module testing equipment
Testing standard
It's conform IEC61215-2:2016 testing standard
Purpose
It's used for solar panel cord anchorage pull testing
The Main Technical Specifications
| Driving ways | Use motor offer the drive power |

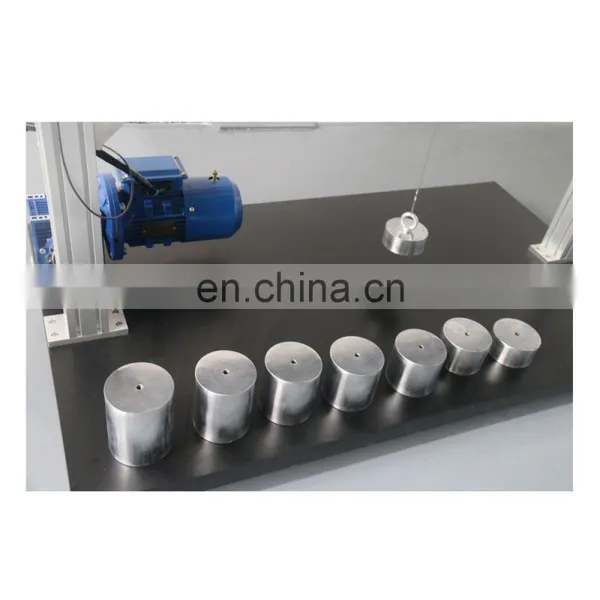

The mass of weights |
30N, 42N,55N,70N,80N,90N,100N,115N |
Pull cycle |
1s |
Times |
54 times ( can set) |
Displacement |
Manual measurement |
| Electricity | 1 phase 220V 50HZ |
Testing procedure
1. The unloaded cable shall be marked so that any displacement relative to the gland can be easily detected
2. The cable is pulled for duration of 1s, 50times, without jerks in the direction of the axis with the relevant force
3. At the end of the pull test, remove the force from the test mandrel, then measure the displacement of the cable at the outlet of the junction box
