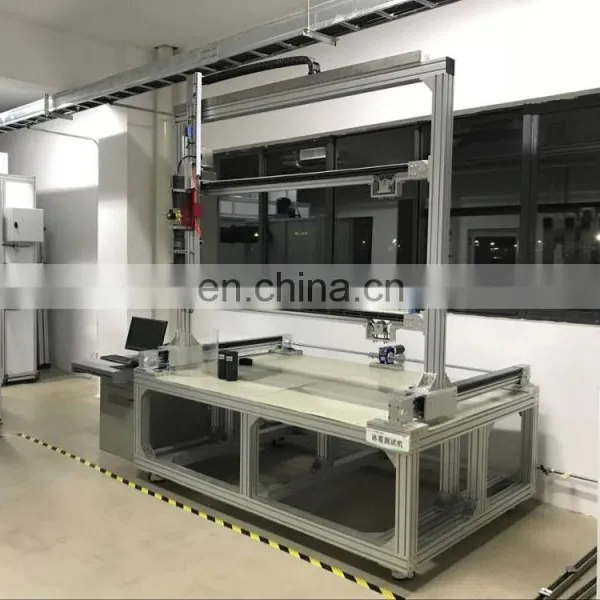

Solar Panel Ice Ball Impact Testing Machine/Clash Testing Machine/Solar Panel Testing Machine With IEC61215-2:2016 Standard
US$ 8,000 - 22,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HOTOTECH
Place of Origin:
China
Model Number:
HTPV-09DE
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Salt Spray Testing Machine /PV Module Testing Chamber/Salt Mist Testing Machine for pv Module With IEC61701 TestingUS$ 8,000 - 23,000MOQ: 1 Set -
Photovoltaic Conduit Bend Testing Machine/guide Tube Winding Testing Equipment /testing Apparatus With IEC StandardUS$ 2,000 - 4,000MOQ: 1 Set
-
IEC61215 Standard Solar Panel UV Preconditioning Testing Machine/UV Preconditioning Test Chamber/solar Panel Testing MachineUS$ 8,000 - 12,000MOQ: 1 Set
-
Conduit Bending Testing Machine/Solar Panel Testing Machine/PV Module Testing Machine With IEC61730US$ 3,235 - 3,676MOQ: 1 Set
-
IEC61215-2 Solar Panel PV Module Cord Anchorage Pull Testing Machine /pv Module Testing EquipmentUS$ 3,000 - 4,000MOQ: 1 Set
Brand Name
HOTOTECH
Place of Origin
China
Model Number
HTPV-09DE
Power
Electronic
Product Description

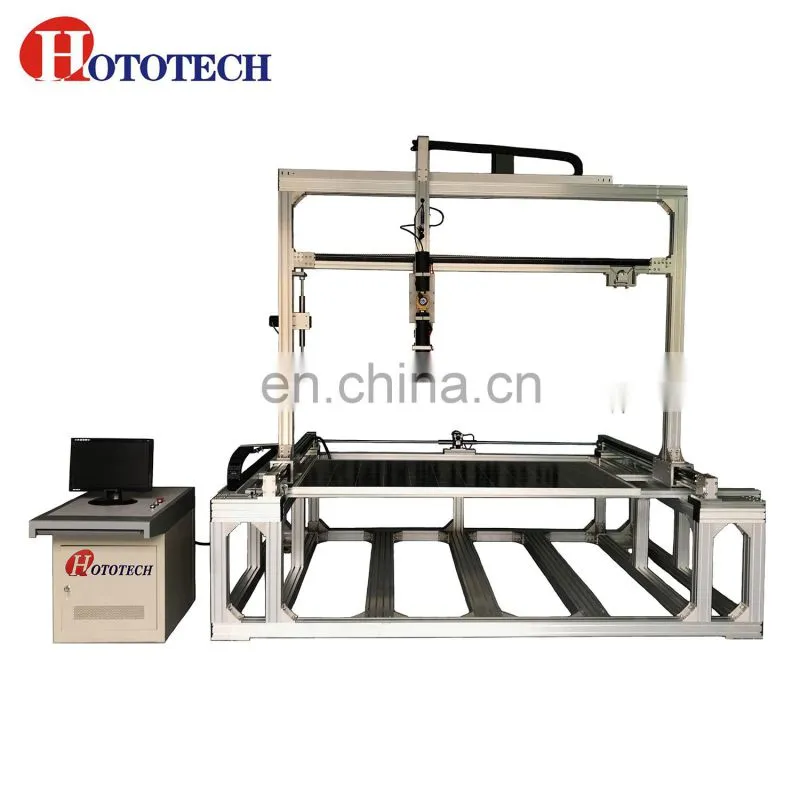

Solar panel ice ball impact testing machine/Clash testing machine/Solar panel testing machine with IEC61215-2:2016 standard
Standard
According to IEC61215-2:2016 & IEC61730-2:2016 testing standard requirement
Purpose
To verify that the module is capable of withstanding the impact of hailstones
Specification
| Product Name | Solar panel ice ball impact testing machine/Clash teseting machine/solar panel testing machine with IEC61215-2:2016 standard |
| Testing standard | IEC61215-2:2016 |
| Aire pressure | 6~8bar |
| Ice ball single filled | by manual |
| The barrel length | approx 940mm |
| Impact area | 2000×1000mm (customized) |
| Guide ways | Used high quality import guide rail |
| Driving ways | Adopt import servo motor+synchronous wheel |
| Locaing control ways | PC control and automatic locating |
| Speed catch range | 0~40m/s |
| The ice ball diameter | 25mm, 35mm, 45mm |
| The ice ball speed | 23m/s, 27.2m/s, 30m/s |
| Ice ball mould | 2 sets |
| Electricity | 220V 50HZ |
Products images show
Company Information
The Relative product
Packaging & Shipping
Our Services
1.High quality and best after-sell service
2.100% quality inspection before delivery
3.Managment Innovate
4.Strong R & D team
5.Can handle customers's feedback problems and doubt timely
6.Our testing machine have one year Warranty time
