Hot Selling IEC61215 UL1703 Mechanical Load Tester / Testing Machine / Testing Equipment

Standard:According to IEC 61215, UL1703, IEC62782 standard requirement

Purpose:

This test is to determine the ability of the module to withstand wind , snow , static or ice loads

Technical specifications:

1,The machine table appearance dimension:L 280 × D 180 × H 195 cm

2,Test Positive load 5400Pa, reverse load :2400Pa (Pressure can setting)

3,Cycle times :free setting

4,Dynamic load test frequency:7s±3s

5,Dynamic load:1000Pa,1000tims

6,Pressure control accurate:5%

7,Pneumatic and force value feedback ways :low friction force cylinder,tensile pressure

sensor(accurate 0.1N)

8,Aluminum profile structure, platform and support frame under the suffer force situation, its not deformation (aluminum profile surface use electrophoresis to ensure no discoloration)

9,The maximum test dimension:2000mm×1000mm (can according to customer’s requirement to customized)

10,Customization test platform fixture, according to determinand install ways to do the adjust

11,Current continuity system :DC power, DC 120V/20A, real-time monitor module inner current           continuity

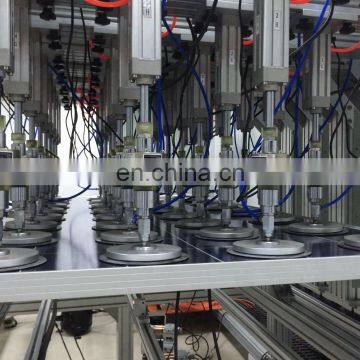

12,Cylinder: 4 groups , in total 8 pieces

   Single the maximum output > 200 kg

   Telescopic stroke:150mm

13,Sucker:8 groups , in total 32 pieces

   Sucker diameter:120mm

   Sucker(with cylinder) space horizontal and vertical≤200mm

   Sucker with upper connection joint can rotation angle≥15°

14,Operate system maturity and humanization

a,Computer control software research and development by HOTOTECH , easy operate            and  humanization

b,Every version software all equipped with unique version number, easy to Identification         and upgrade

           c,Software with Chinese and English language , can change each other

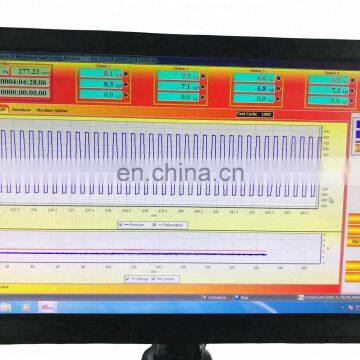

d,With real-time show pressure, deformation, test time, cycle times , current continuity etc       function

e,Input target pressure value, test running after, the machine can automatic adjustable             pressure to target pressure value stability

           f,Selected data save after, real-time test data and save

g,At the calibration window input the password and enter into the calibration backstage, fast

   calibration machine and modify parameter set

           h,Real-time draw real-time show pressure and deformation value

           i,Real-time show every cylinder force value and draw force value curve

    j,Enter into the history information and inquiry interface then input sample number                      research  can inquiry this number history data report and print out

           k,Report support output World, Excel, PDF , JPG etc format

l,Software with fault warning function, when machine happen above any situation after,           software will popup prompt window, machine will warning and prompt operator do the           relative treatment
