PV Module hail tester /Solar panel testing machine / Solar panel ice ball impact testing equipment with IEC6215 testing
- 50 Set / Sets per Month
- ShenZhen YanTian
- T/T Credit Card
- IEC61215-2:2016 the newest standard Humidity Freeze tester /Walk-in low temperature testing chambe for solar panels
- Solar panel ultraviolet pretreatment tester/PV Module UV Aging Testing machine/Solar panel testing machine with IEC61215
- UV Preconditioning Tester/UV aging testing chamber / PV Module testing machine with IEC61215-2:2016 testing standard
- IEC 61215 standard Solar panel Dynamic Mechanical load tester /Static Mechanical Load Testing Machine/Solar panel testing
- Mechanical load tester /Mechanical Load Testing Machine/PV Module testing machine
- IEC61215 standard PV module Hail Impact Testing machine/Hail impact tester /Solar panel testing with 25mm/35mm/45mm ice ball
Product Details
Brand Name: | HOTOTECH | Place of Origin: | Guangdong, China | Model Number: | HTPV-09AB |
Power: | Electronic |
Product Description

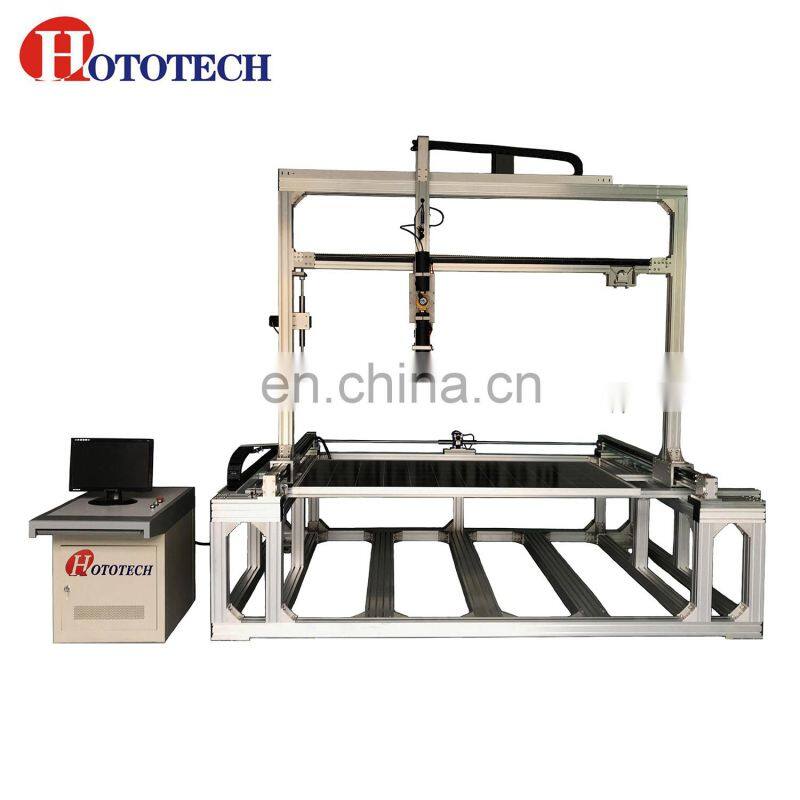

PV Module hail tester Solar panel testing machine Solar panel ice ball impact testing equipment with IEC6215 testing
Standard
According to IEC61215,UL1703
Purpose
use to verification module resistance impact ability , artifical hockey use to simulate hail , and to the constant speed impact component , simulate hail climate against component effect
Specifications
1.Effective impact area:1200 * 2100mm
2.Standard hail diameter:25mm±5%
3.Standard hail mass:7.53g±5%
4.Hail setting speed:23.0m/s±5%
5.Speed measurement accurate :±2%
6.Hail mass measurement accurate:±2%
7.Pneumatic shoot system
8.Main function:
8.1,Chinese operate interface,setting impact position ,impact speed , hail reference ,time etc
reference.

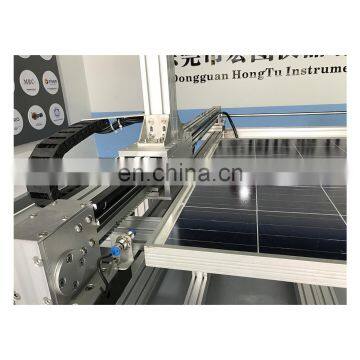

8.2,two dimension stepping driving system , the interface can setting the displacement
8.3,can programme control automatic being multipoint impact test
8.4,the hail shoot speed through compression air’s pressure adjust
8.5,light spot fixed point collimation function ,convenience to ensure impact point position
The Main Technical specifications
Product Name | PV Module hail tester Solar panel testing machine Solar panel ice ball impact testing equipment with IEC6215 testing |
Testing standard | IEC61215-2:2016 testing standard |
Function | Testing pv module resistance hail impact performance |
Launch device | Air compressor with Barrel |
Air pressure | 6-8 Bar |
Barrel length approx | 940mm |
Impact area | 2000×1000mm (customized) |
Control ways | Computer control |

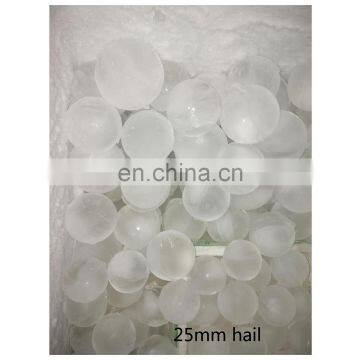

Ice ball diameter | 25mm, 35mm, 45mm, |
Ice ball speed | 23m/s, 27.2m/s, 30.7m/s |
Ice ball mould | 2 sets ( 1 mould with 4 ice ball ) |
Electricty | 220V 50HZ |
