PV Solar Panel Surface Area Testing 11 Locations Impact Strength Testing Machine With IEC61215-2:2016 Testing Standard
US$ 1,500 - 1,600
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HOTOTECH
Place of Origin:
China
Model Number:
HTPV-09
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Customized Walk-in High Low Temperature Environment Testing Machine/temperature and Humidity Chamber/solar Panel Testing MachineUS$ 12,000 - 15,000MOQ: 1 Set -
Solar Panel Programmable Constant Temperature and Humidity Environment Testing MachineUS$ 15,000 - 18,000MOQ: 1 Set
-
Customization Industrial High Low Temperature Humidity Cycling Testing Chamber/ Testing Machine for pv ModuleUS$ 18,000 - 20,000MOQ: 1 Set
-
Real-time Curve Display High-Low Temperature Test Chamber With PV Module TestingUS$ 15,000 - 18,000MOQ: 1 Set
-
PV Module/Solar Panel UV Preconditioning System Test Chamber/Testing Machine With IEC61215-2:2016 StandardUS$ 12,000 - 18,000MOQ: 1 Set
Brand Name
HOTOTECH
Place of Origin
China
Model Number
HTPV-09
Company logo
Product Description
PV solar panel surface area testing 11 locations impact strength testing machine with IEC61215-2:2016 testing standard
Standard
Hail impact testing machine conform IEC61215-2:2016, IEC61646 etc standard
Purpose
The testing machine to verify that the module is capable of withstanding the impact of hailstones
The import parameter of pv module hail impact testing machine
| Product Name | PV solar panel surface area testing locations impact strength teseting machine |
| Testing standard | IEC61215-2:2016 , IEC61646 standard |
| Air pressure | 6-8Bar |
| X shaft move distance | 2100mm |
| Y shaft move distance | 1000mm |
| Impact area | 2000 by 1000mm |
| Sensor type | high accurate infrared testing speed sensor |

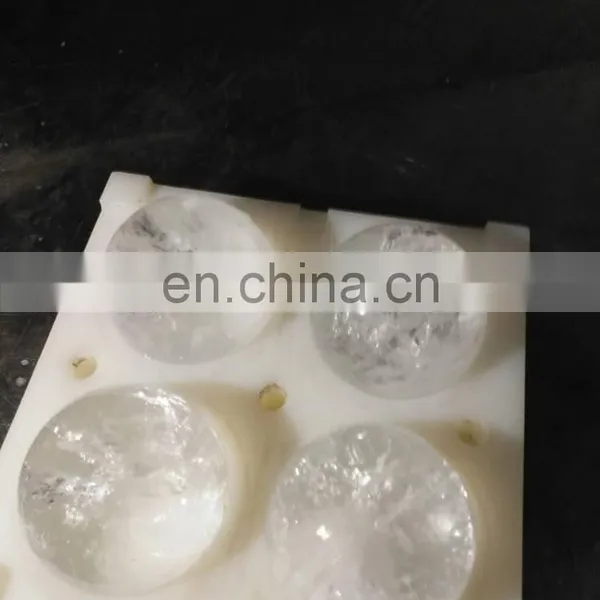

| diameter of ice ball | 25mm, 35mm, 45mm |
| Test speed | 23m/s, 27.2m/s, 30.7m/s |
| Ice mould process ways | CNC |
| Ice mould materials | Special easy release material |

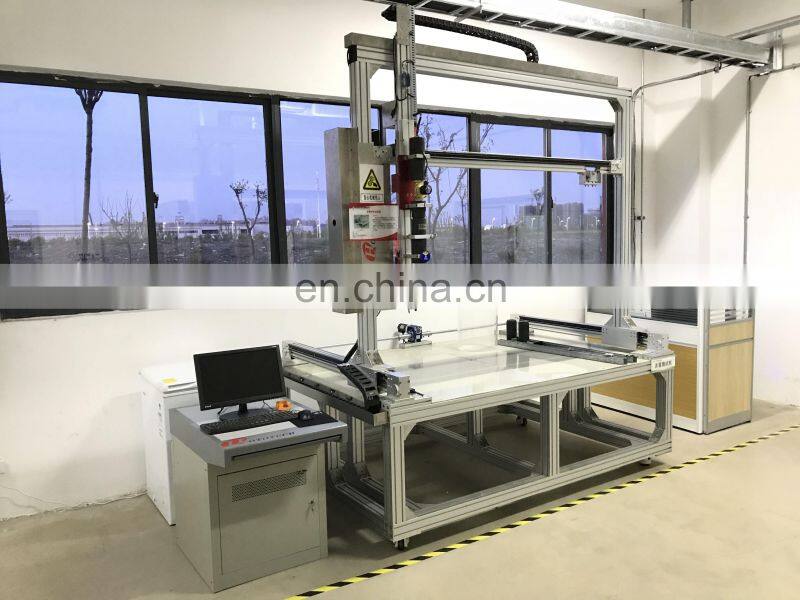

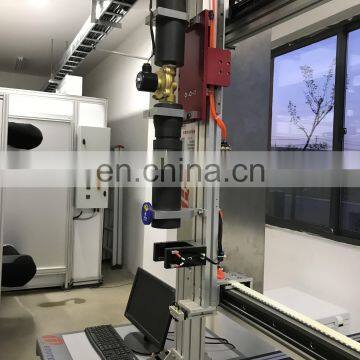

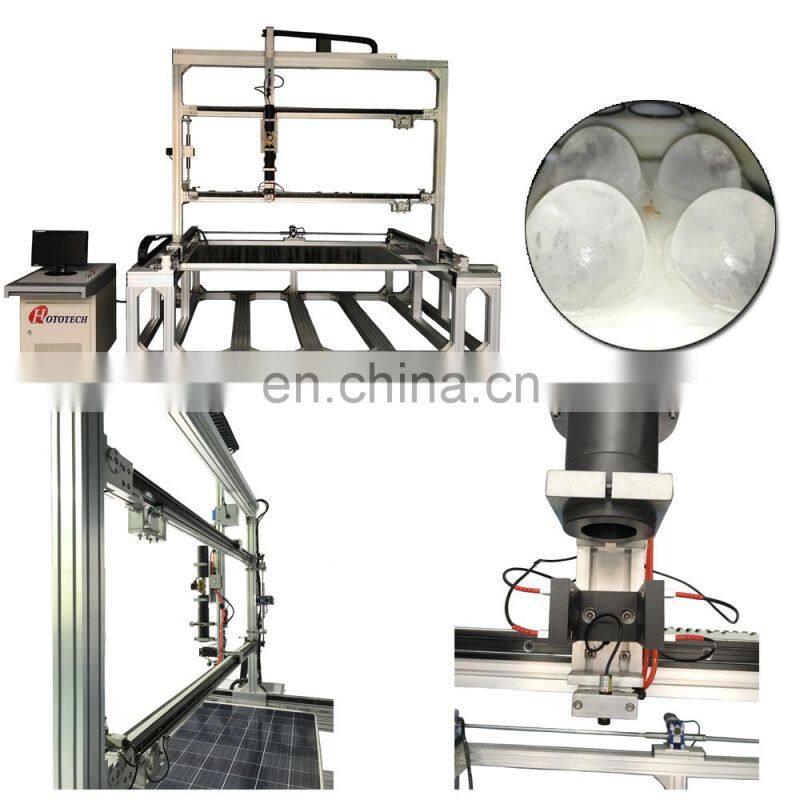

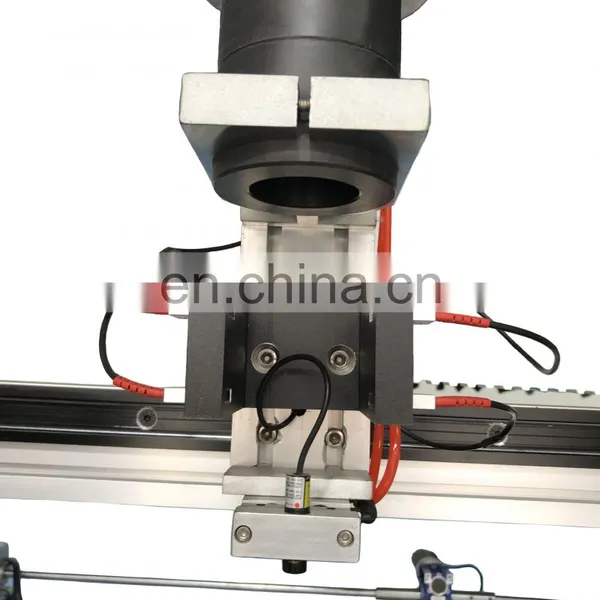

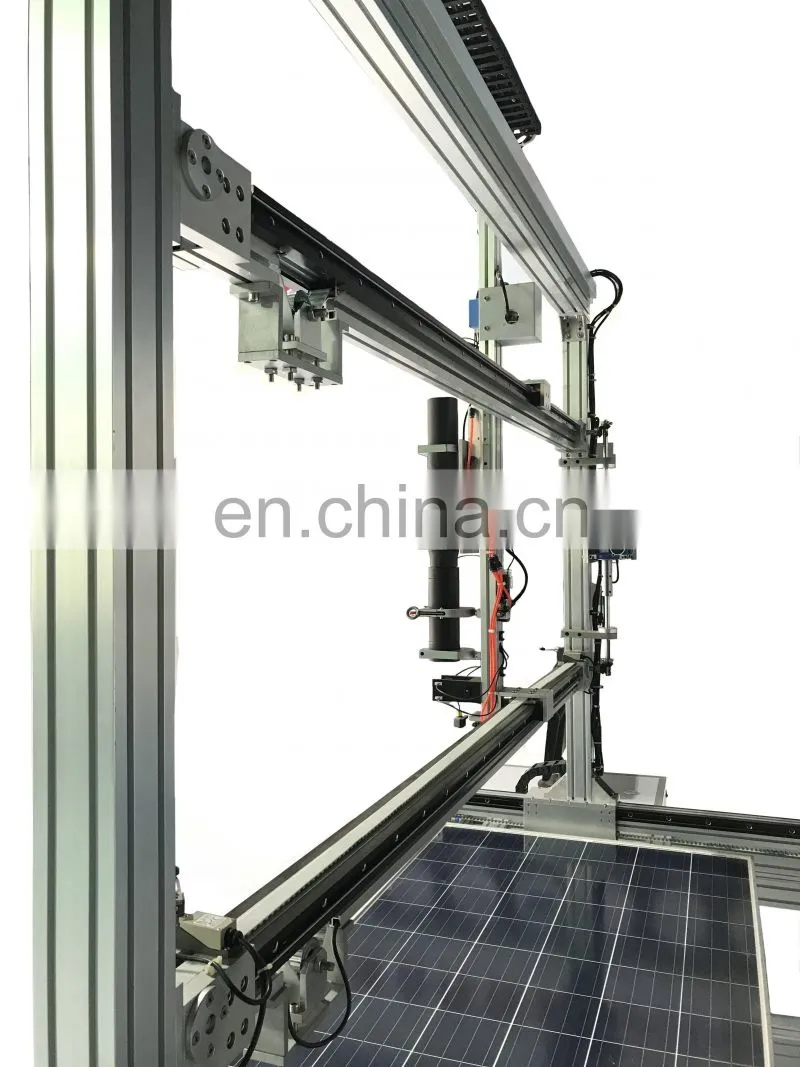

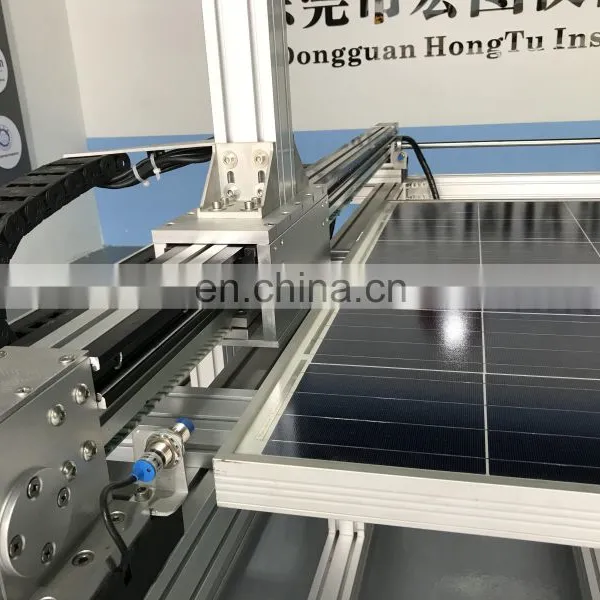

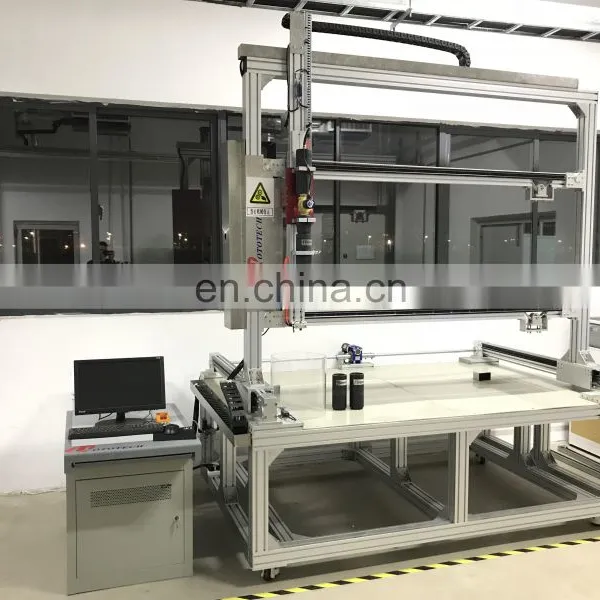

Products images show
PV exhibition
Clients visit photos
Cooperation clients
Nameplate
