Home > Products > PV Module Tester > Customized Walk-in High Low Temperature Environment Testing Machine/temperature and Humidity Chamber/solar Panel Testing Machine
Customized Walk-in High Low Temperature Environment Testing Machine/temperature and Humidity Chamber/solar Panel Testing Machine
US$ 12,000 - 15,000
/ Set
1 Set(Min. Order)
- ShenZhen
- T/T Credit Card
You May Like
-
Solar Panel Programmable Constant Temperature and Humidity Environment Testing Machine
-
Customization Industrial High Low Temperature Humidity Cycling Testing Chamber/ Testing Machine for pv Module
-
Real-time Curve Display High-Low Temperature Test Chamber With PV Module Testing
-
PV Module/Solar Panel UV Preconditioning System Test Chamber/Testing Machine With IEC61215-2:2016 Standard
-
IEC 61215 Strength Testing Machine Solar PV Module Mechanical Load Tester
-
IEC61215 Solar Panel PV Module STC and NMOT Measurement / Solar Panel Testing Machine / PV Module Testing Equipment
Product Details
| Brand Name | HOTOTECH | Place of Origin | Guangdong, China | |
| Model Number | HTPV-17 |
Product Description

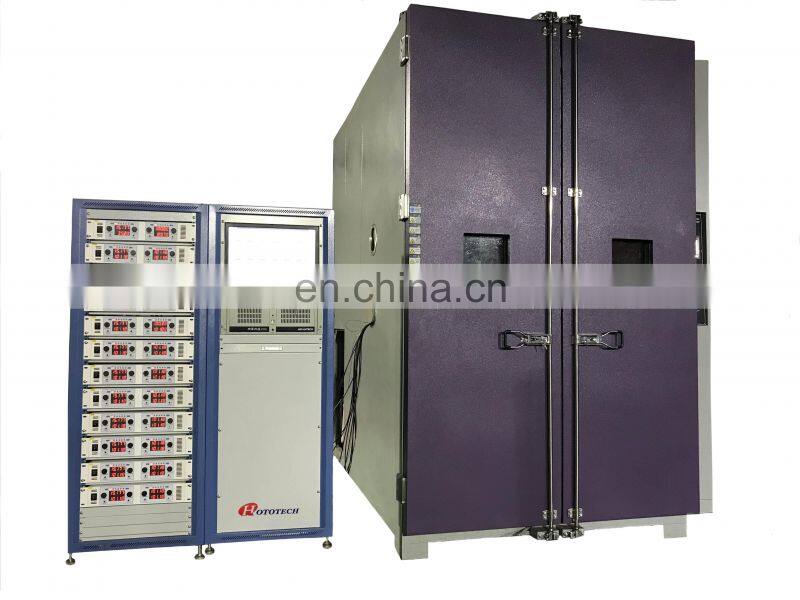

Customized walk-in high low temperature environment testing machine/temperature and humidity chamber/solar panel testing machine
Purpose
It's to determine the ability of the module to withstand thermal mismatch , fatigue and other stresses caused by repeated changes of tempeature
Tehcnical specifications
| Product Name | Customized walk-in high low temperature environment testing machine/temperature and humidity chamber/solar panel testing machine |
| Testing standard | IEC 61215-2:2016 test standard |
| Temperature range | -40~85℃ |
| Tempereature fluctuation | ≤±1℃ |
| Temperataure deviation | ≤±1℃ |
| Temperature uniformity | ≤±2℃ |
| Rise and down speed rate | Satisfy the IEC61215-2:2016 standard requirement |
| Humidity range | 30-98% RH |
| Relative humidity deviation | ±3% FS , deviation 85±2%RH;90±2%RH |
| Testing sample quantity | 12 PCS |
| Control system | Automatic calculus |
| Display Panel | Touch screen |
| Data show | Real-time show |
| Communicate interface | RS-485 communicate interface |
| Inner material | SUS #304 high temperature resistant high tension satinless steel sheet |
| Outer material | Antirust steel plate-Baking finish |
| Thermal insulation material | high density hard PU foam and glass insulation cotton |
| Refrigerant | adopt the newest HFC environmental protection refrigerant |
| Refrigerant valve | Automaitc switch regulating refrigerant valve |
| Electricity | 380V 60HZ |
