Home > Instruments & Meters > Test Instrument > Test Machine > Customization Industrial High Low Temperature Humidity Cycling Testing Chamber/ Testing Machine for pv Module
Customization Industrial High Low Temperature Humidity Cycling Testing Chamber/ Testing Machine for pv Module
US$ 18,000 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HOTOTECH
Place of Origin:
Guangdong, China
Model Number:
HTPV-17-3
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Real-time Curve Display High-Low Temperature Test Chamber With PV Module TestingUS$ 15,000 - 18,000MOQ: 1 Set -
PV Module/Solar Panel UV Preconditioning System Test Chamber/Testing Machine With IEC61215-2:2016 StandardUS$ 12,000 - 18,000MOQ: 1 Set
-
IEC 61215 Strength Testing Machine Solar PV Module Mechanical Load TesterUS$ 9,999 - 19,999MOQ: 1 Set
-
IEC61215 Solar Panel PV Module STC and NMOT Measurement / Solar Panel Testing Machine / PV Module Testing EquipmentUS$ 600 - 10,000MOQ: 1 Set
-
Manufacture IEC61215 Solar Cell Test Equipment Solar Panel Mechanical Load Testing MachineUS$ 1,999 - 99,999MOQ: 1 Set
Brand Name
HOTOTECH
Place of Origin
Guangdong, China
Model Number
HTPV-17-3
Company logo
Customization Industrial high low temperature humidity cycling testing chamber/ testing machine for pv module
Product Description
Purpose

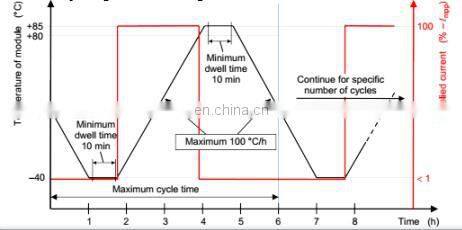

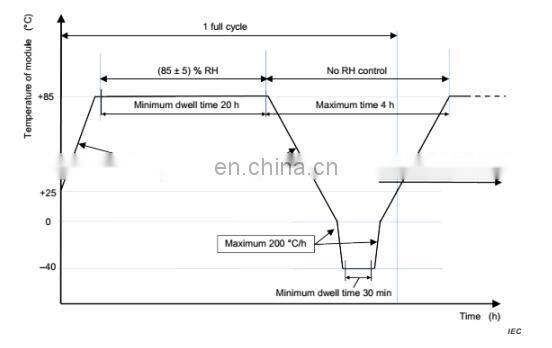

It's to determine the ability of the module to withstand thermal mismatch, fatigue and other stresses caused by repeated changes of temperature
Technical paramter
| Product Name | Customization Industrial high low tempeature humidity cycling testing chamber/testing machine for pv module |
| Testing standard | IEC61215-2:2016 testing standard |
| Temperature range | -40~85℃ |
| Temperature fluctuation | ≤±1℃ |
| Temperature deviation | ≤±1℃ |
| Temperature uniformity | ≤±2℃ |
| Rise and down speed rate | satisfy IEC61215 standard requirement |
| Humidity range | 30~98%RH |
| Relative humidity deviation | ±3%FS, deviation 85±2%RH,90±2RH |
| Humidity fluctuation | ±2%RH |
| Humidity uniformity | ≤2%RH |
| Testing sample quantity | 12PCS |
| Control system | Automatic calculus |
| Display panel | Touch screen |
| Data display | real-time data dispaly |
| Communicate interface | RS-485 communicate interface |
| Inner material | SUS #304 stainless steel sheet |
| Thermal insulation material | High density hard PU foam and glass insulation cotton |
| Electricity | 380V 60HZ |

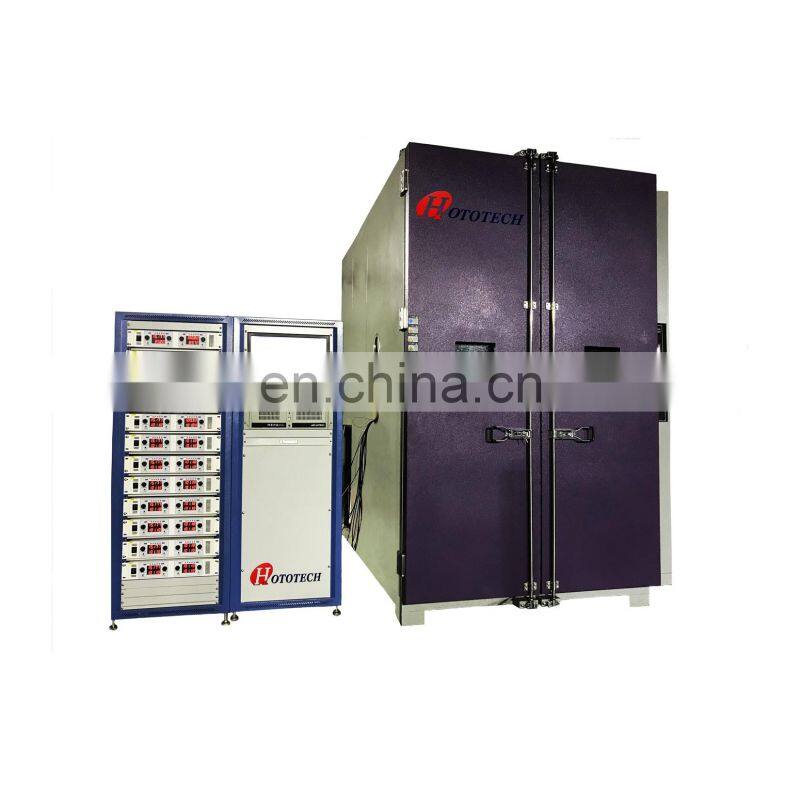

Products images show
Clients visit photos
Exhibition
Package show
Nameplate
