Model:HTPV-18A

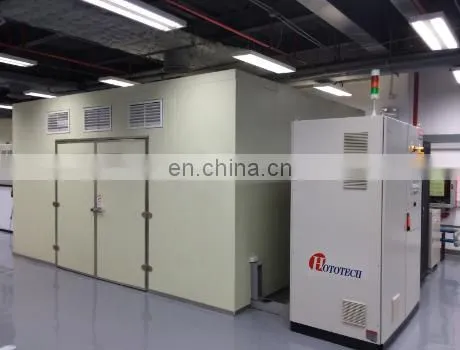

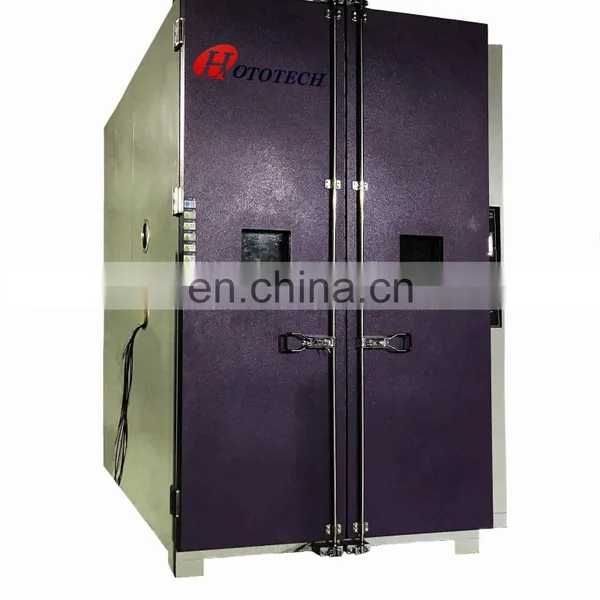

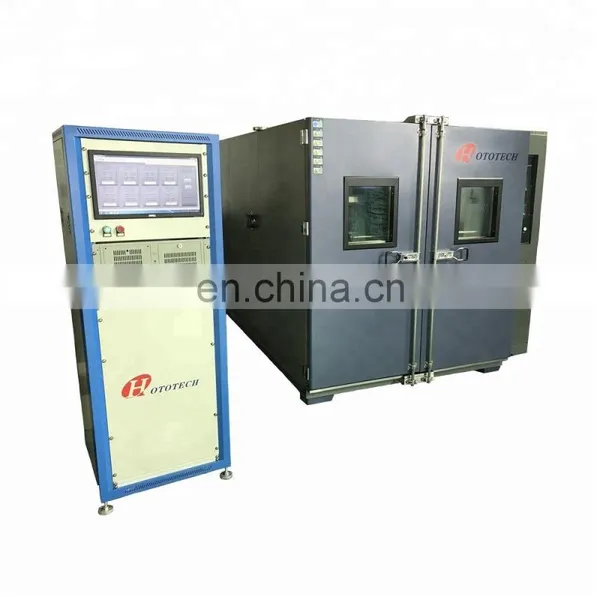

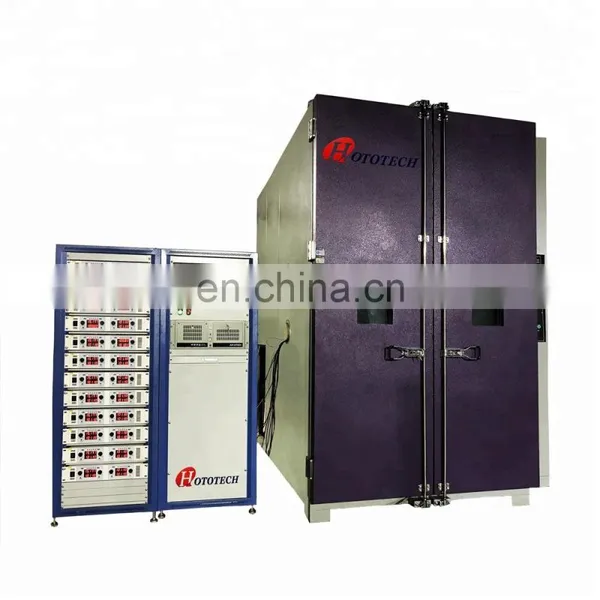

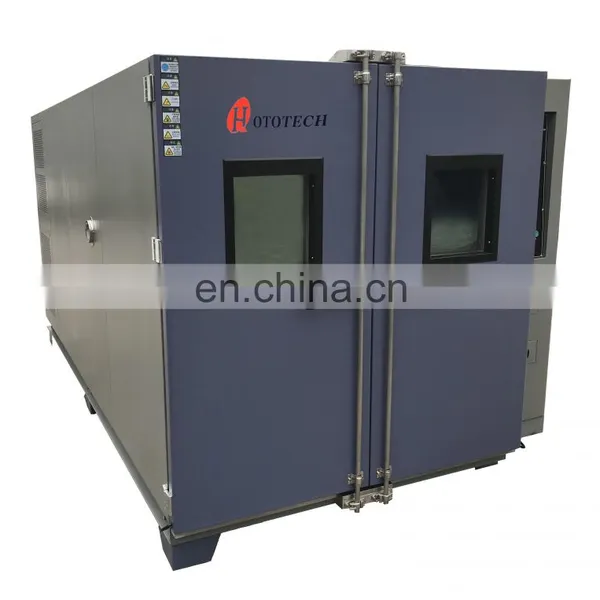

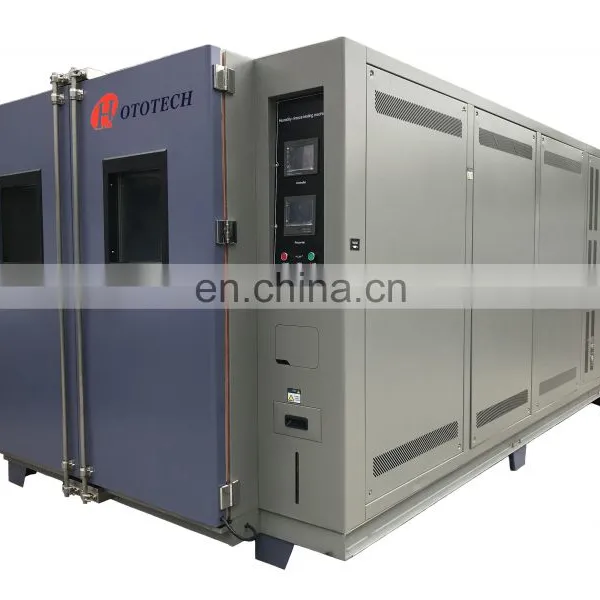

Name: Class AAA Steady-state sun simulator (included the IV curve tester)
Class AAA Steady-state sunlight simulates the environment chamber
Standard:According to IEC61215,IEC61646,UL1703 etc standard requirement
Purpose:
The machine offer a near natural sun light’s environment, the purpose of sun simulator is offer controllable indoor laboratory facilities for pv modules testing . use class AAA largest area steady-state sun simulator for the large area testing of pv modules, test content conform IEC61215,IEC61646,UL1703 standard, testing project included the maximum power test, temperature coefficient measurement, under low irradiance performance, hot spot endurance test , aging test
Technical specifications:
| Llight source | Sun simulator | Low irradiance test | 200W/m2 low irradiance testing |
| The effective test area | 2.0m×2.0m | stability time | ≤100S |
| Class | AAA | IV measurement needed time | ≤100S |
| Spectral matching | class A | Environment requirement | 15-30°C ,humidity<70%,without frost dew |
| Irradiance un uniformity | Class A | Power requirement | 380V,60HZ AC≤150A |
| Instantaneous instability | Class A | Wind cooling systerm | diameter 150mm piping,inlet temperatrue |
| Lamp type | Ion lamp | Protection devicer | cut off powe |
| Lamp life | at least 1000h | Lamp light ways | upper light , vertical direction |
| Light strength range | 800-1100W/m2 continue and adjustable | IV measurement system | |
| Light source structure | good design , consider suitable light box unit, light bulb power supply unit, operation case | With cut off memory function | |
1.High quality and best after-sell service
2.100% quality inspection before delivery
3.Managment Innovate
4.Strong R & D team
5.Can handle customers's feedback problems and doubt timely
6.Our testing machine have one year Warranty time
FQA :
-Can the equipment be customized?
Provide technical specifications and standards, customized
-About warranty?
Our quality is trustworthy, but we promise a one-year warranty.
-Worried not to use?
We will have professional technicians to guide us remotely. If you like, you can also teach on site.
