High-precision Clamp Current Sensor AC convertor

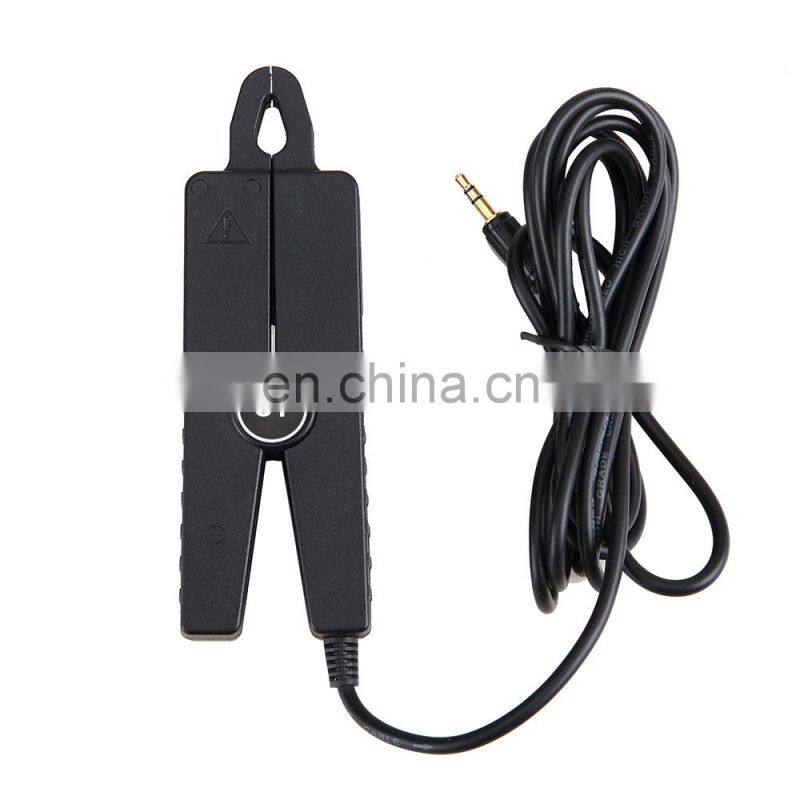

HT008 High-precision Clamp Current Sensor

I. Product Introduction

HT008 clamp current sensor is a high-precision AC current convertor. It adopts a clamp-shaped structure. It can be quickly and easily accessed and used. The compact size is easier to carry and use. Applicable to AC current, leakage current, high harmonic current, phase, electric energy, power, power factor and other tests.

HT008 can be used with a variety of measuring instruments, such as: Field calibrator for watt-hour meter, multi-function energy meter, oscillometer, digital multimeter, electrical identification device, cable fault detector, dual-clamp phase volt-ampere meter, three-phase digital phase Volt-ampere meter, etc., can measure and compare a variety of electrical parameters under constant power. Widely used in substations, power plants, industrial and mining enterprises and testing stations, electrical maintenance departments for current detection and field electrical work, etc.

II. Technical Specification

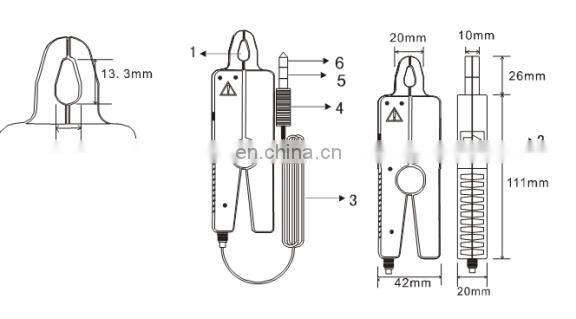

III.Installation Dimensions

1. Clamp head

2. direction marker identification (identify the same name when phase detection)

3. Output leads

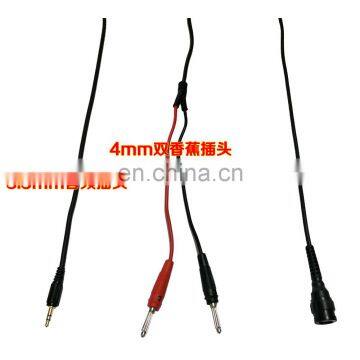

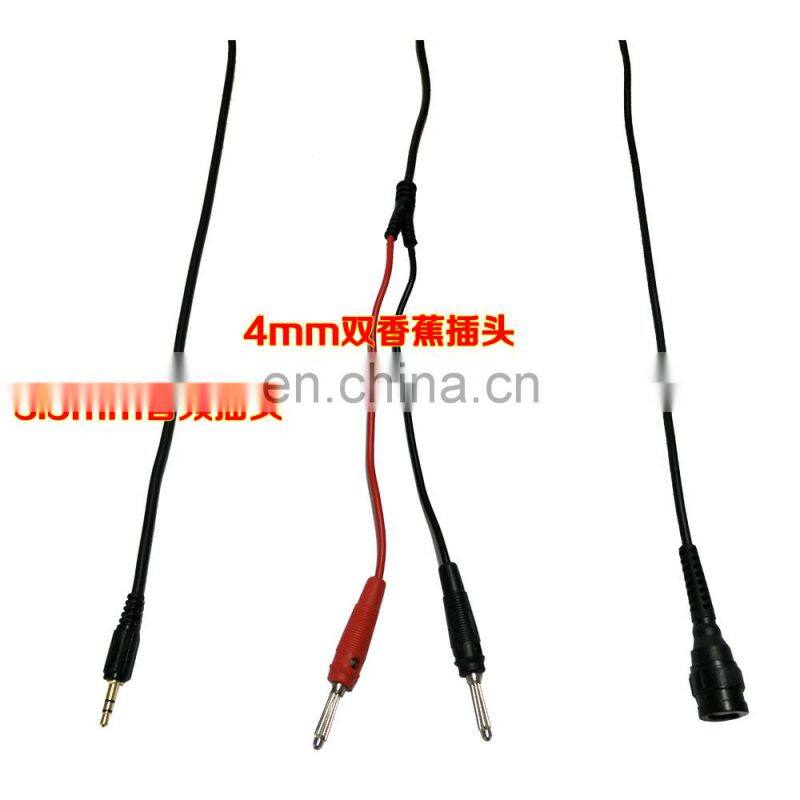

4. Sensor output plug (p3.5mm audio plug)

5. coil taps

6. coil taps
