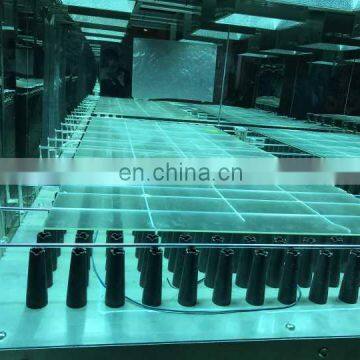

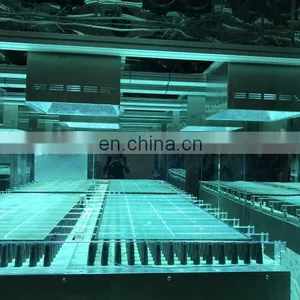

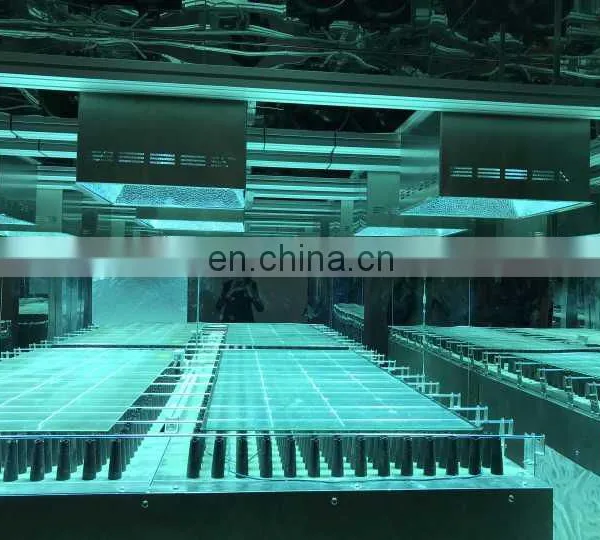

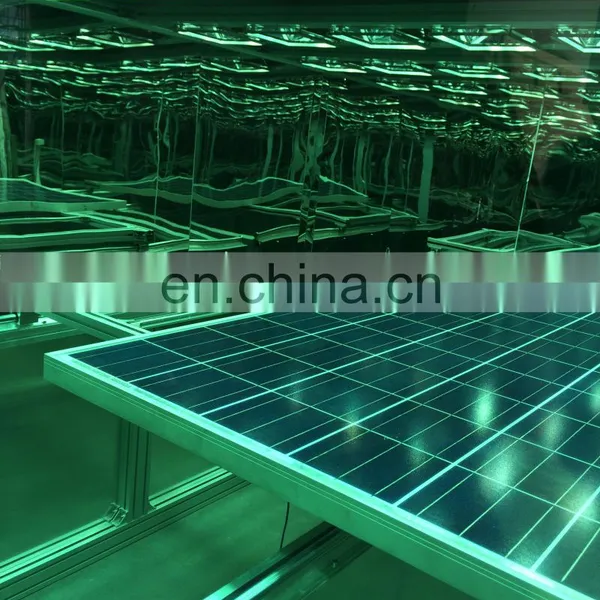

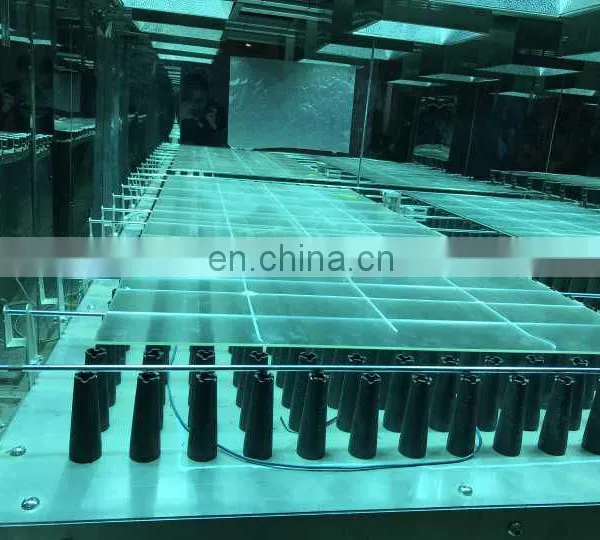

UV Preconditioning Tester/UV aging testing chamber / simulate outdoor environment Testing chamber for PV Module
Functions and technical parameters
1. According to IEC 61215-2005 & Ed.3,IEC 61646-2008,IEC 61345-1998, 'PV modules UV Pre-test ' , widely used for PV modules and materials resistant to UV Test
2.Industrial Touch Screen ,PLC programmable controller or computer (PC) control ,Windows XP operating platform
3. Automatically monitor the uniformity of irradiance ,auto-shutdown if of exceed ± 15%
4. Specially designed air duct circulation system , as to insure Test temperature 60 °C ± 5 ° C during loading
5. Using imported fluorescent UV lamp ,meet test conditions from different standard
ntinuously adjustable, controllable,ensure irradiance with accuracy of ± 15% mentioned in
standard
7. Measuring range :280~320nm and 280~385/400nm
8.The minimum acceptable amount of radiation in test area,UV source Irradiance with 15KWH/m within 280nm~385/400nm , also ensure irradiance <250W/m2.This machine will complete the designated test automatically , Just confirming the implementation of standards
9. Optical sensors scan the whole course ,automatic monitoring uniformity and irradiance
automatically

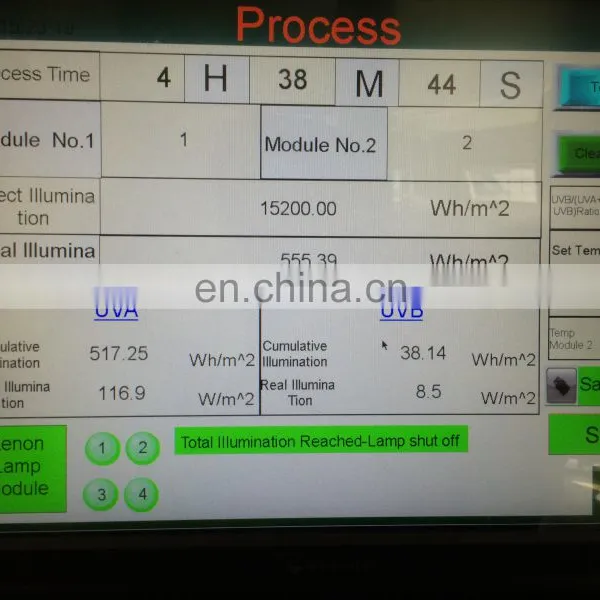

10. Functions as Data and curve storage, printing
11 . Related test: EVA crosslinking degree, peel strength, light transmittance
Dongguan Hong Tu Instrument Co.,Ltd , specializes in developing and producing sales of testing instrument for helmet ,photovoltaic , leather ,footwear ,luggage ,sport equipments, metal and rubber , we have firm connections and full cooperation from China's National Third-part Quality Inspection and Notarization Center on producing and developing high-precision testing machines
We treasure the value of good quality , reasonable price and efficient service with customer satisfaction. we expert ourselves in providing our customers the best suitable testing designs and high quality testing machines to make you the utmost profit
Please feel free to contact us for any enquires from our wide range of products
1.High quality and best after-sell service
2.100% quality inspection before delivery
3.Managment Innovate
4.Strong R & D team
5.Can handle customers's feedback problems and doubt timely
6.Our testing machine have one year Warranty time
