HT118 Auto Range Digital Multimeter 10nF TO 10mF Capacitance Universal Meter

Specifications

Range

Accuracy

HT118A

DC Voltage

600mV

±(0.5%+3)

6V/60V/600V/1000V

±(0.5%+3)

AC Voltage

600mV

±(1.0%+5)

6V/60V/600V/750V

±(1.0%+5)

DC Current

600uA/6000uA/60mA/600mA

±(0.8%+3)

6A/10A

±(1.2%+3)

AC Current

600uA/6000uA/60mA/600mA

±(1.0%+3)

6A/10A

±(1.5%+3)

Resistance

600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ

±(0.8%+3)

Capacitance

10nF/100nF/1uF/10uF/100uF/1mF/10mF

±(4.0%+3)

100mF

±(5.0%+5)

Frequency

10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz

±(1.0%+3)

Duty

1%~99%

±(1.0%+2)

Temperature(℃/℉)

-40℃~1000℃

±(1.0%+3)

-40℉~1832℉

±(1.0%+3)

Counts

6000 Counts

Auto/Manual range

Auto

Display

LCD dual display

Bargraph

√

Live test                           (sound and light alarm)

√

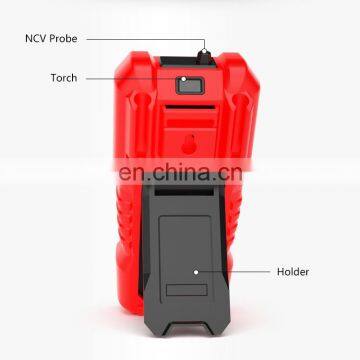

NCV                              (sound and light alarm)

√

Diode test

√

Continuity                          (sound and light alarm)

√

Max/Min hold

√

Data hold

√

True RMS

√

bandwidth

1kHz

Battery test (1.5V/9V)

Low battery indication

√

Auto power off

√

Double color backlight

√

Input jack LED indicate

√

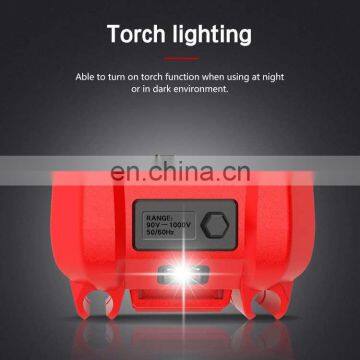

Work light

√

Power

2xAA batteries

Weight

Approx.350g

Size

188mm*88mm*58mm

Safety Rating

EN61010-1,-2-030,EN61010-2-033,,EN61326-1,

CATIII 1000V,CATlV 600V
