Home > Instruments & Meters > Meter for Electricity > Resistance Meter > Digital Megohmmeter Megge R5000v Digital Insulation Resistance Tester
US$ 465.3 - 465.3
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HOTOTECH
Place of Origin:
Guangdong, China
Model Number:
HT3035
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wireless Hight Voltage Digital Clamp AmmeterUS$ 393.89 - 428.35MOQ: 1 Set -
Soil Resistivity Grounding Resistance Tester Grounding Voltage AC Voltage MeasurementUS$ 456.36 - 466.67MOQ: 1 Set
-
60kV High-voltage Primary Currents Wireless High and Low Voltage Current Ratio TesterUS$ 900 - 900MOQ: 1 Set
-
True RMS Digital AC Clamp Meter Pocket Size Clamp on Earth TesterUS$ 12 - 12MOQ: 10 Sets
-
HT3030 Digital Earth Network TesterUS$ 2,750.96 - 2,813.14MOQ: 1 Set
Brand Name
HOTOTECH
Place of Origin
Guangdong, China
Model Number
HT3035
Operating Temperature
-10℃~+50℃<85%RH
Dimensions
277.2*227.5*153mm
Display Type
Digital Only
Accuracy Class
1±10%
Measuring Range
0.01MΩ~1000GΩ
Testing Voltage
0~1000V
5000V Insulation Tester Digital Insulation Resistance Tester 5KV Megger Tester
Specification
| Function | Insulation resistance test, voltage test |
| Base conditions | 23°C±5°C,below 75%rh |
| Rated voltage(V) | 100;250;500;1000;2500;5000V accuracy±3%rdg±5dgt |
| Test Voltage(V) | rated voltage×(1±10%) |
| Insulation Resistance Range(GΩ) | 0.01MΩ~1000GΩ accuracy±3%rdg±5dgt |
| Insulation Resistance Resolution | 0.01MΩ |
| DC Voltage Range | 0~1000V |
| DC Voltage resolution | 0.1V |
| AC Voltage Range | 0~750V |
| AC Voltage resolution | 0.1V |
| Output short-circuit Current | ≥5mA(5000V) |
| Absorption Ratio and Polarization Index Measurement | Have |
| Power Supply | 12V rechargeable battery |
| Backlight | Controllable gray screen backlight, suitable for use in dim places |

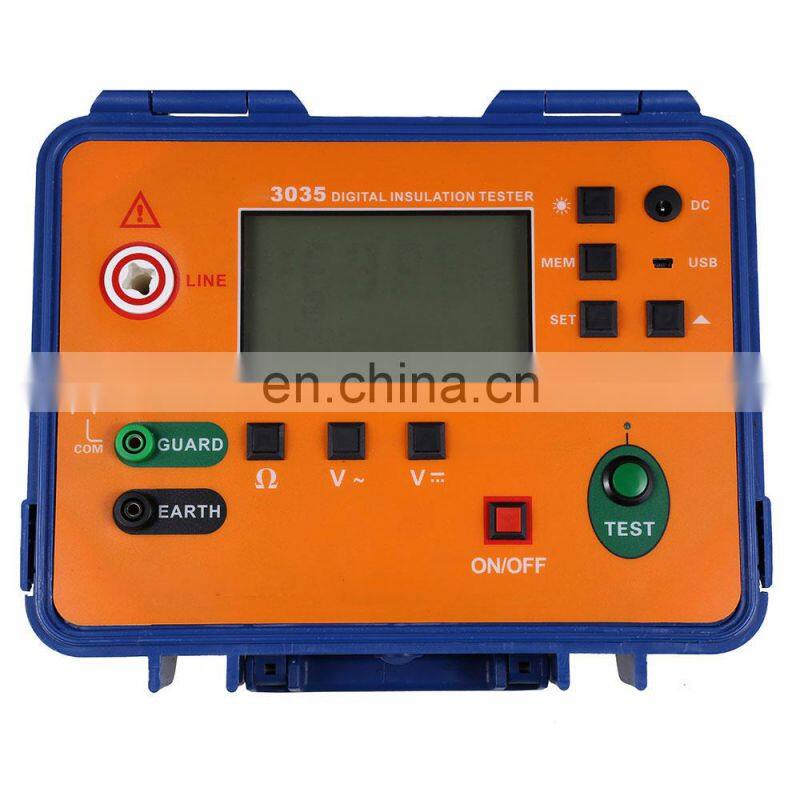

| Dispaly mode | 4-bit large LCD display, gray screen backlight |
| LCD display size | 108mm×65mm |
| Instrument size | L/W/H:277.2mm×227.5mm×153mm |

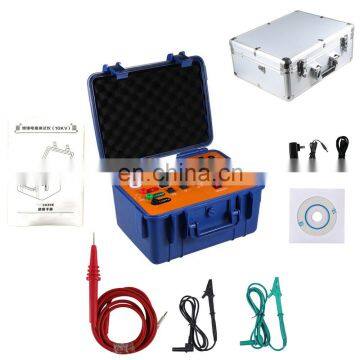

| Test Line | High voltage test line red 1 meter, black 1 meter, green line 1 meter |
| Data Storage | 500 groups, "FULL" symbol indicates that storage is full |
| USB interface | With USB interface, software monitoring, storage data can be uploaded to the computer, save the print |
| Communication Line | USB communication line 1PC |
| Data Review | Data review function: "MR" symbol display |
| Overflow Display | Exceed measurement range overflow function: “OL ” symbol display |
| Alarm Function | Alarm when the measured value exceeds the alarm setting value |
| Power Consumption | Standby: 30mA Max(backlight off) |
| Turn on backlight: 42mA Max | |
| Measure:200mA Max(backlight off) | |
| Instrument weight | 2720g(including battery) |
| Battery voltage | When the battery voltage is low, low battery symbol “ ”will display |
| Automatic shut-down | automatic shutdown after 15 minutes boot |
| Insulation Resistance | ≥50MΩ(between Measuring line and housing) |
| Pressure Resistance | AC3kV/50Hz 1min |
| Working Temperature and Humidity | -10℃~+50℃<85%RH |
| Storage Temperature and Humidity | -15℃~+55℃<90%RH |
| Suitable for Safety Regulations | IEC61010-1,IEC1010-2-31,IEC61557-1,5,IEC60529(IP54) pollution grade 2,CAT Ⅲ 300V |
