IEC60068 IK Vertical drop hammer Impact Testing device
USD $3,000 - $5,800
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- shenzhen.China
- T/T Credit Card
You May Like
-
IEC60068 Pendulum hammer Impact Test Apparatus
-
Factory Sell! Gauge for testing the stability and pressure of DIN-VDE0620-1-bild 15
-
Impact test apparatus for insulation on plugs pin at low temperature of AS NZS3112 figure 2.6
-
Contact gauge from the engagement face to the point of first contact with the current-carrying of SANS164-1 ANNEX C
-
Gauges for checking the distance from the engagement face to the points of first current-carrying contact of SANS164-2 Annex A
-
Gauge for checking the earth pin makes contact before the current-carrying pins of SANS164-2 Annex C
Product Details
| Brand Name | BONAD | Place of Origin | Guangdong, China | |
| Model Number | BND-LC | Power | Electronic | |
customize export wood box
Product Description

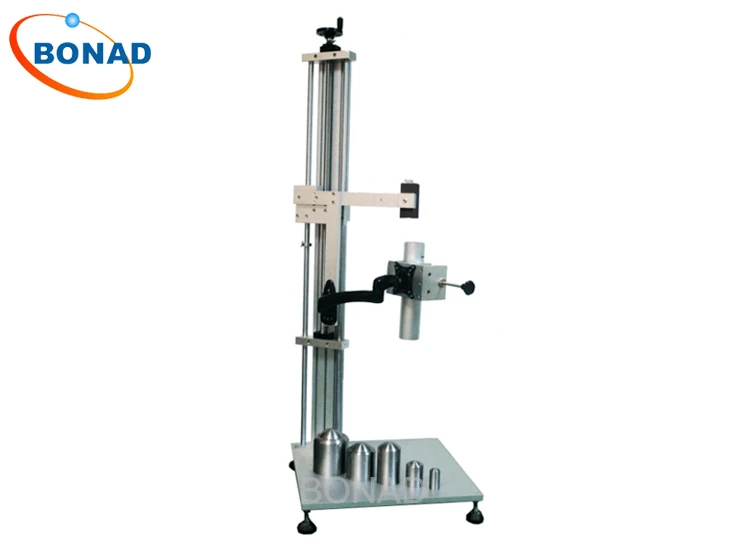

IEC60068 IK Vertical drop hammer Impact Testing device
Appliance:Vertical drop hammer test device is designed and manufactured according to IEC60068-2-75 (GB / T2325.55) standard, it is used to carry on the anti-impact ability test to the electrical home appliances and accessories or electronic electrical products or accessories.

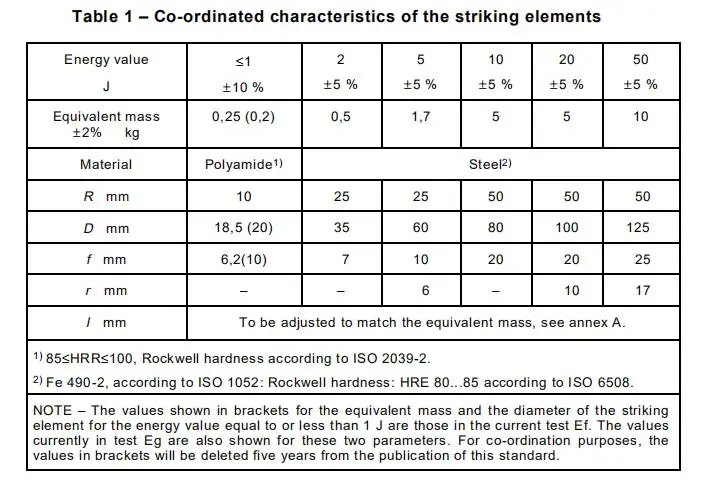

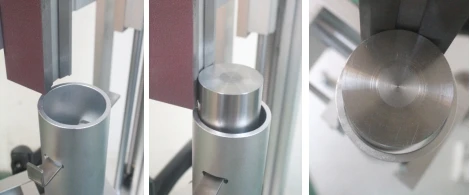

The hammer consists of a basic striking element, the drop height being selected from the standard table 2 and falling vertically from the quiescent state to the horizontal surface of the sample. The characteristics of the impact elements shall be as specified in Table 1 of the Standards. The impact member may be guided by a negligible constraint. The guide tube should not come into contact with the sample and keep the hammer free to fall. In order to reduce friction, the length of the impact element should not be less than the diameter, with the pipe to maintain a proper gap.
Specification
Item | Technical Parameters |
Striking elements | Optional accessories: 1J/2J/5J/10J/20J/50J. 1J impact component equivalent mass: 0.25KG ± 2g 2J impact component equivalent mass: 0.5KG ± 5g 5J impact component equivalent mass: 1.7KG ± 5g 10J impact component equivalent mass: 5.0KG ± 5g 20J impact component equivalent mass: 5.0KG ± 5g 50J impact component equivalent mass: 10.0KG ± 5g |
Constrained conduit | According to the impact of matching components：1J/2J/5J/10J/20J/50J (option purchase) |
Universal clamp | Max Clamping：15KG |

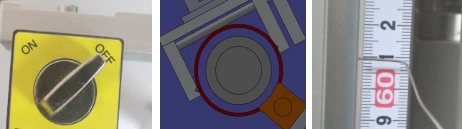

Impact release | Manual, magnetic. Double-sided four-position card slot for easy replacement of impact components. |
Drop height | Manual adjustable range: 200-1300mm; effective accuracy: ±1mm. |
Height adjustment | Hand wheel type, ball type screw, with Japanese imported ruler. |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profie
FAQ
Company Profile
Shenzhen Bonad Instrument Co., Ltd.
14 Stanards drafted and issued by Labthink -- 100 Patents granted by Labthink -- 410 m2 Laboratory to provide testing services -- 20 years experienced lab technicians to provide solutions -- 12 months warranty -- Remote Services (Free of Charge allthrough lifetime)
