IEC60068-2-75 Spring Impact Test Hammer With Adjustable Energy
- Shenzhen
- T/T Credit Card
You May Like
-
Quality Insurance! IEC60068-2-75 Spring Impact Hammer Calibration Test Equipment
-
Drop Ball Impact Strength Tester With High Quality On Hot Sales
-
Discount Sell! Impact Steel Test Sphere Test Ball 500g 50mm With Ring
-
Top Quality Integrated Voice Mechanical Schmidt Concrete Testing Rebound Hammer
-
IK Level 0.14J Spring Impact Test Hammer Durability Testing
-
Discount Sell! IEC60068 Spring Impact Hammer Calibration Equipment
Product Details
| Brand Name | BONAD | Place of Origin | Guangdong, China | |
| Model Number | BND-103 |
Aluminum box+Carton box
Product Description

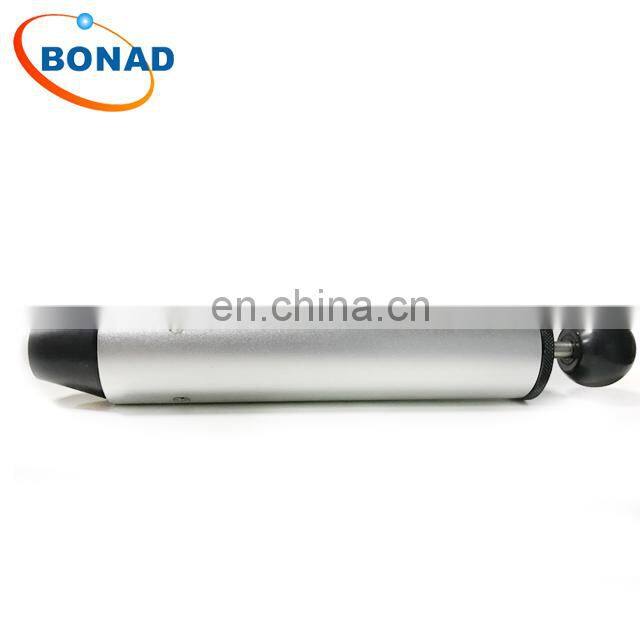

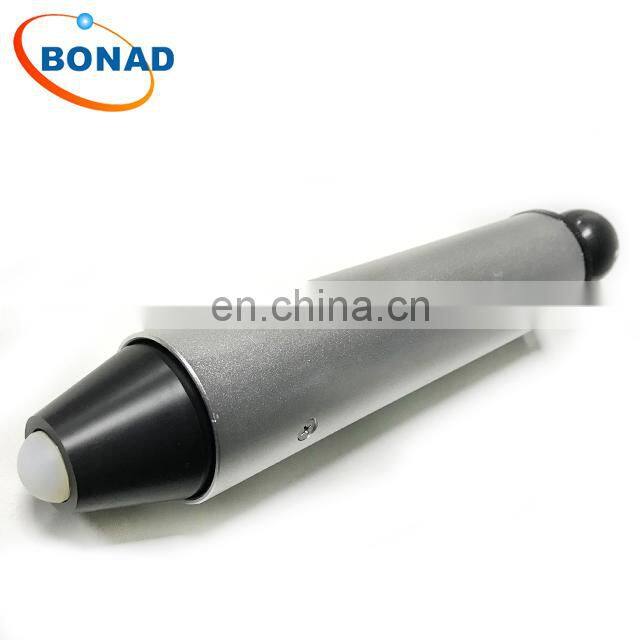

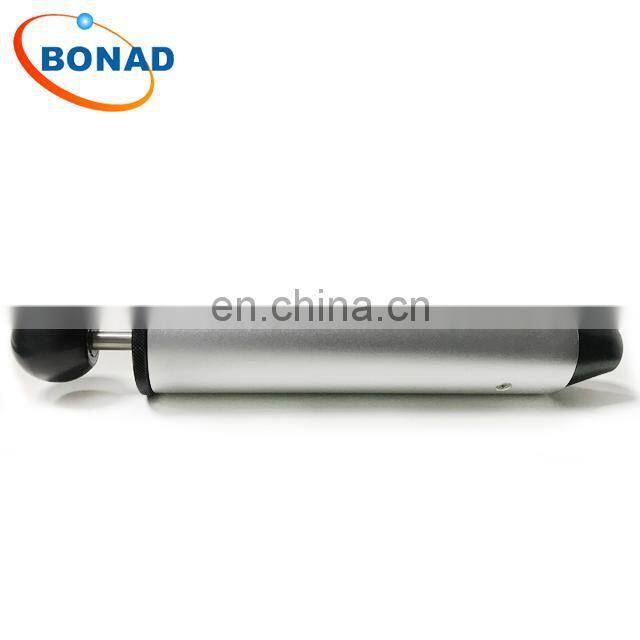

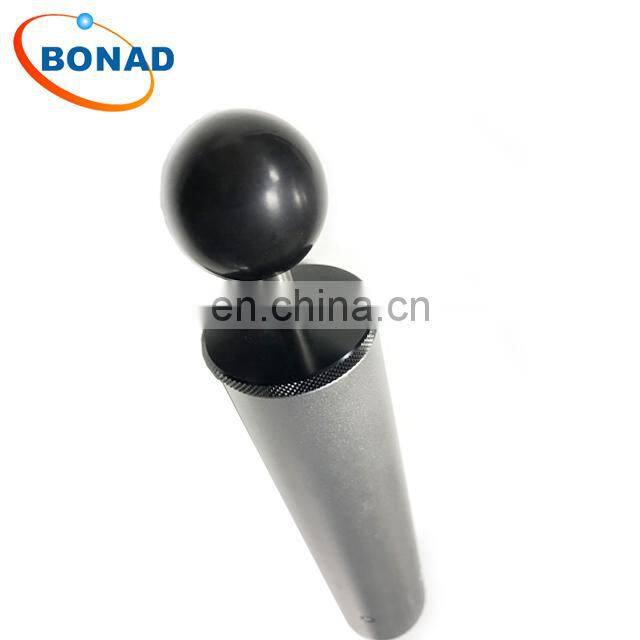

IEC60068-2-75 0.14J-2.0J universal spring impact test hammer
IEC60068-2-75 0.14J-2.0J universal spring impact test hammer
Standard: IEC60068-2-75 IEC60884 UL1244
Technical parameters:
Length:211mm
Weight:1250g
OD : 50mm
Hammer Weight :60g
Hammer Radius:10mm
The release force of impact: <10N
Impact Components: Including the hit ball handle the hammer ,weight 250g
Hammer head is made from white polyethylene imine first
Types: Spring Operated Impact Hammer/0.14J/0.20J/0.35J/0.50J/0.70J/1.00J/ 2.0J
Single Impact Energy | Error |
0.14J | ±0.014J |
0.20J | ±0.020J |
0.35J | ±0.03J |
0.50J | ±0.04J |
0.70J | ±0.05J |
1.00J | ±0.05J |
2.00J | ±0.10J |
Spring impact hammer is designed according to the IEC60068-2-75 for testing the resistance of impact of electrical and electronic products. Spring impact hammer is the necessary test probe to check the safety performance of enclosure of electrical products under the condition of external mechanical forces.
It is used for the mechanical robustness testing of domestic and similar electrical appliances, electronic products, such as lights, enclosure of electrical accessories, lever, handle, knobs, indicator lights, signal lights, lampshades and so on.
Spring impact hammer can make sure that the tested products can withstand the possibility of reckless operations and other accidents. The electrical appliances can run safe and reliable and won’t cause harm to people.
How to order
1. Place the order and pay directly if you have no question to the product. 2. If you have some questions, don't bother to send me a message to ask. 3. After you have paid the money, we will deliver the goods as soon as possible. |
Packaging and Shipping
1. Aluminium box and carton box, careful and tight package, make sure the package is intact. 2. The package will be shipped by DHL/Fedex/TNT/EMS/UPS/China post/EF-Express/Special line, as you have chose in the order. 3. The shipping time is different, it depends on the distance bewteen us. At usual, exclude the preparing time, the goods would be sent to you in 5days. |
Company Profile
14 Stanards drafted and issued by Labthink -- 100 Patents granted by Labthink -- 410 m2 Laboratory to provide testing services -- 20 years experienced lab technicians to provide solutions -- 12 months warranty -- Remote Services (Free of Charge allthrough lifetime)
