ul 1278 Test Finger Probes for Moving Parts of Floor Insert Fans
- shenzhen
- T/T Credit Card
You May Like
-
ul Wedge Probe for Testing Document Shredders
-
SM206 Cone Test Prod UL 1278 Finger Probe Cab Fig 10.1
-
Iec 61032 Safty Test Equipment Test Finger Probe 11 BND-11
-
IEC61032 Test Finger Probe C/D
-
Articulating Test Finger Probe IEC61032 Jointed Finger Probe
-
Iec 61032 Fig 2 IP2X Articulated Test Finger Probe B
Product Details
| Brand Name | bnd | Model Number | ul test finger probe |
Safety Aluminum foil box for ul 1278 test finger probe
Product Description
ul 1278 test finger probes for moving parts of floor insert fans
Product details:
It conforms to standard requirement of UL1278 Fig 10.4. The handle is made of nylon and the probe is made of hard
steel.
BONAD offers a wide range of testing probes which designed and manufactured according to IEC,EN,UL,GB,ASTM and
others. These probes are intended to verify the protection of persons against access to hazardous parts of home
electronics and appliances,toys,tools and a hose of other products. These probes simulate human fingers,tools and other
items that would be hazardous to come in contact with certain parts of products
Our advantages:
Professional technology support.
Full experience of large numbers containers loading in Chinese sea port.
Fast shipment by reputed shipping line.
Best service after shipment with emails.
Cargoes photo before and after loading into container
UL1278 Fig 10.4 SM209 Rod Probe
Parameter:
1,Probe Length:69.9mm(2-3/4inch)
1,Probe Diameter:1.6mm(1/16inch)
Note
UL test finger Probe are used for precision machinery products, please take and put down gently, and safe keeping Test probe is precision stainless steel products, please use of gently and pay attention to maintenance
UL507 UL1278
Total Length:88.9mm(3.5inch)
Head Length:25.4mm(1inch)
Head Radius:R3.175mm(1/8inch)
Former Head Diameter:12.7mm(1/2inch)
Tail Diameter:25.4mm(1inch)

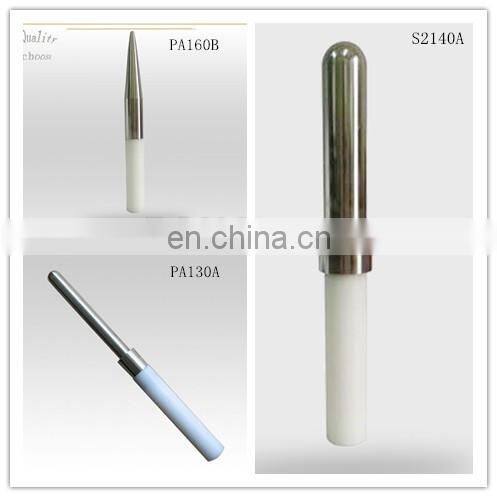

Product picture | Reference Standard | Specification |
PA160B | UL507 UL1278 | Total Length:88.9mm(3.5inch) Head Length:25.4mm(1inch) Head Radius:R3.175mm(1/8inch) Former Head Diameter:12.7mm (1/2inch) Tail Diameter:25.4mm(1inch) |
PA130A | UL507 UL1026 | Total Length:101.6mm(4inch) Head Length:12.7mm(1/2inch) Head Radius:14.3mm(9/16inch) Former Head Diameter:R4.8mm (3/16inch) Tail Diameter:19.1mm(3/4inch) |
S2140A | UL507(S2140A) | Total Length:25.4mm(4inch) Head Length:101.6mm(1/2inch) Former Head Diameter:R12.7mm (1/42inch) Tail Diameter:31.75mm(1-1inch) |
