Product Details
| Brand Name | bnd-13 | Place of Origin | Guangdong, China | |
| Model Number | short test pin |
Safety Aluminum foil box for short test pin 13 iec60065
Product Description

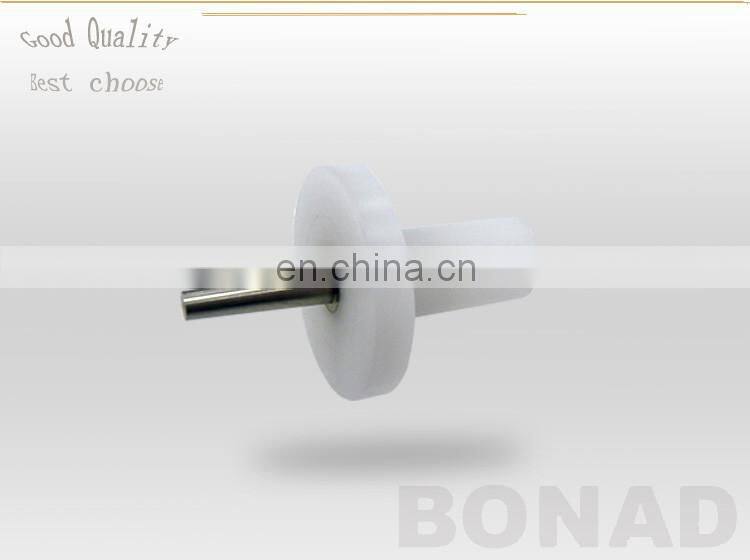

IEC60065 figure 9 short test pin probe 13 4mm
The Long Test Pin (Figure 8 - Test probe 12) of IEC 61032.
This long test pin probe is intended to be used on appliances for verifying the inaccessibility of hazardous live parts or hazardous mechanical parts which are liable to be touched accidentally by a tool, for example a screwdriver or similar pointed object in normal use.
The Short Test Pin (Figure 9 - Test probe 13) of IEC 61032
the short test pin probe is intended to verify the protection against access to hazardous live parts in class 0 equipment and class II equipment (IEC 60536).
Both are made on stainless steel and are Polished.
Note
Long Test pin probe is precision stainless steel products, please use of gently and pay attention to maintenance
IEC60065 IEC60335-1 IEC61032
The probe Diameter:Head 3mm Tail 4mm
The probe Length:15mm
Dam-board Diameter:25mm
Dam-board Thickness:4mm
Product picture | Reference Standard | Specification |
Long test pin probe | IEC61032 | The probe Diameter:4mm The probe Length:50mm Dam-board Diameter:25mm Dam-board Thickness:4mm |
Short test pin probe | IEC60065 IEC60335-1 IEC61032 | The probe Diameter:Head 3mm Tail 4mm The probe Length:15mm Dam-board Diameter:25mm Dam-board Thickness:4mm |
