Home > Products > IEC test Probes > Thermocouple Type K IEC60695 thermocouple wire for Glow Wire Tester diameter 0.5mm
Thermocouple Type K IEC60695 thermocouple wire for Glow Wire Tester diameter 0.5mm
- 100 Piece / Pieces per Month
- shenzhen
- T/T Credit Card
You May Like
-
Accessibility test probe IEC61032 to prevent electric shock , long test pin probe
-
Accessibility testing UL982 Standard Articulated Finger Probe
-
IEC 61032 ip1x ip2x ip3x ip4x test probe ABCD with or without force
-
iec 61032 fig 7 test probe 11 iec unjointed test finger probes
-
IEC 61032 figure 4 wiring test probe
-
Test lead pin 13 confirmed by IEC60065 testing
Product Details
| Brand Name | BND-D | Place of Origin | Guangdong, China | |
| Model Number | IEC60695 Thermocouple Type K |
safty box for Glow wire loop for IEC60695 Thermocouple Type K
Product Description

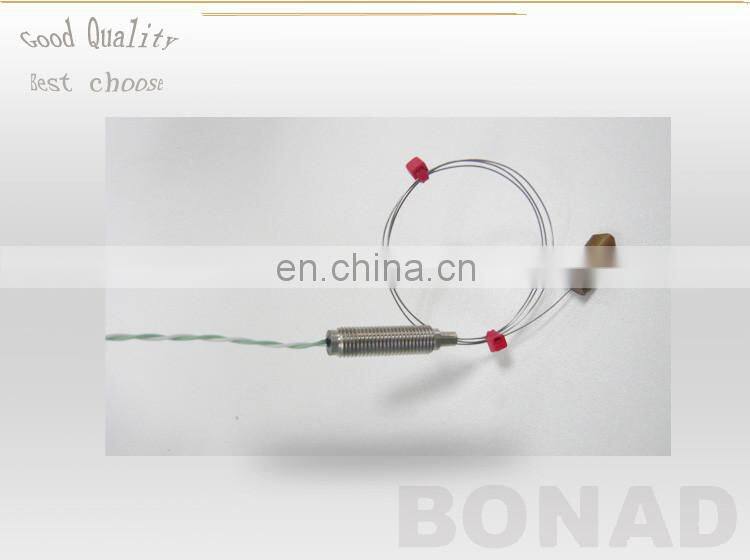

Thermocouple Type K IEC60695 thermocouple wire for Glow Wire Tester diameter 0.5mm
Specifications:
Sensor Type Thermocouple type K to IEC60584
Probe material 310 stainless steel with welded tip. Mineral insulated
conductors with insulated junction
Tip temperature Rating -40°C to 1100°C
Probe termination Pot seal, M8 x 1.0mm thread, 25mm long
Pot temperature Rating 200°C maximum
Termination lead PTFE insulated tails, 7/0.2mm, 100mm long
Specifications :
1.Insulation type high temperature resistant armored thermocouples (443-7939,443-7951,443-7919,443-7921)
2,Thermocouple temperature probe portion is made of bent 310 stainless steel sheath ,withexcellent antioxidant properties, suitable for corrosive medium and high voltate application .
IEC60695

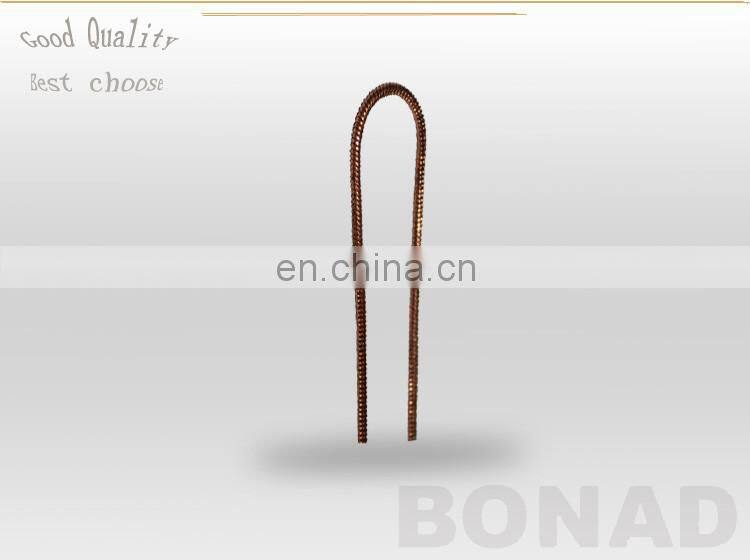

Test chain is composed of copper and zinc alloy(Cu 63% Zn37%),without any surface treatment and coating ,200g/m load tensile resistance at2.5 ± 20%,according to IEC60598-1standards.
