IEC61032 Figure 11 Test Finger Probe
- shenzhen
- T/T Credit Card
You May Like
-
IEC61032 Anti-shock Test Finger Probe 11 With 50N Force
-
IEC60065 Figure 9 Short Test Pin Probe 13 4mm
-
Manufacture IEC61032 Test Probe Pin 31/32/41/43 Figure 15 Test Rod
-
Iec 61032 Figure 14 Test Cone Probe 31
-
for Appliance Hazardous Parts Test , Iec 61032 Test Probe 11
-
Ck1 Ck2 Iec 60065 Iec 60335 GB2099 Stainless Steel Iec Creepage Distance Test Cards
Product Details
| Brand Name | BND | Place of Origin | Guangdong, China | |
| Model Number | BND-TB |
Safety Aluminum foil box for telecom test probe
Product Description

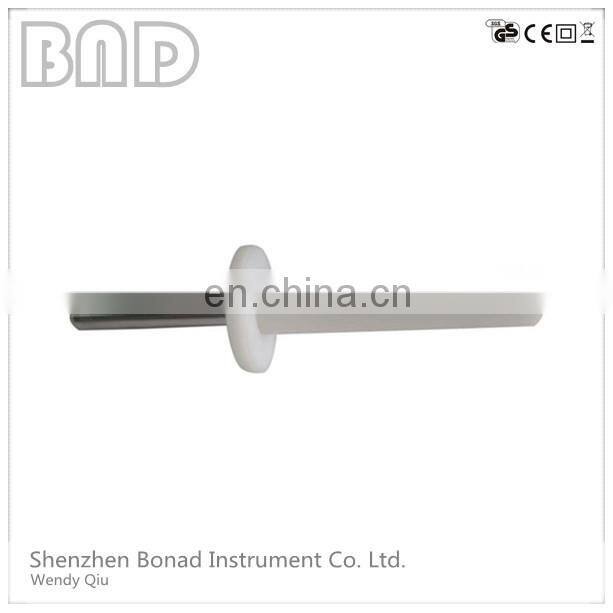

IEC61032 Test Finger Probe No 11
It meets the requirements of IEC 61032, 7, 11, GB/T 16842, GB8898, IEC 60065, IEC 60598, GB7000, IEC 60335 and GB4706. It can be used to check the mechanical strength of the holes in the shell or the inner baffle of the shell.
Technical parameters:
1. Directly pointed diameter: 12 mm
2. Straight finger length: 80mm
3. Baffle diameter: 50mm
4. Baffle thickness: 5mm
5. Reference Standards: IEC 61032 Figure 7-Test Probe 11, GB4706.1-2005 Article 8.1.1, IEC 61032:1997 Figure 7
Customizable thrust with 10-50N
Customizable thrust with 10-75N
Customizable thrust with 5-30N
Technical Parameters:
| Telecom Test probe diameter | 12mm |
| Telecom Test probe length | 80mm |
| Dam-board diameter | 50mm |
| Material | nylon and stainless steel |
| Reference | IEC60950, IEC60065,IEC60695, UL |
Note
Test probe is precision stainless steel products, please use of gently and pay attention to maintenance

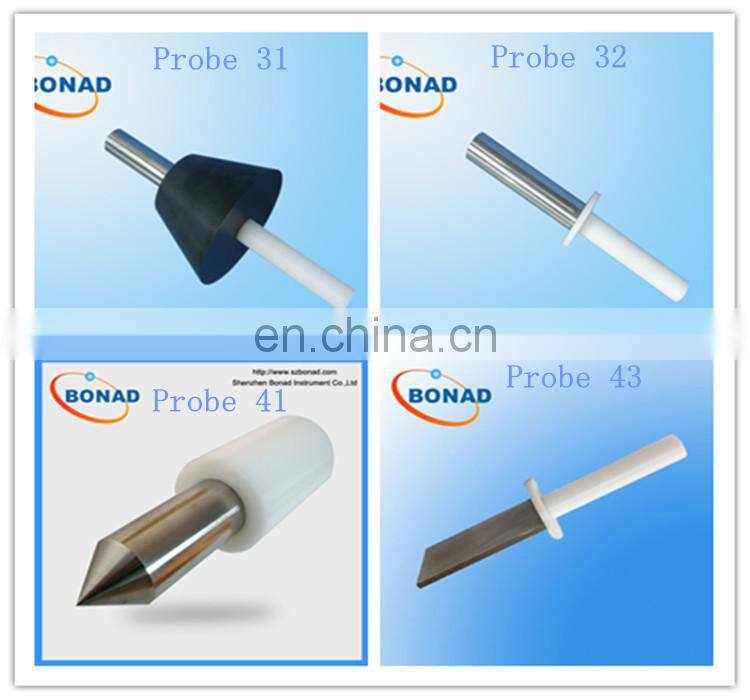

Product picture | Reference Standard | Specification |
Test Probe 31 | IEC61032 | Rod Diameter: 25±0.2 mm Rod Length: 80±0.2 mm Plate Former Diameter(Min): 60±0.2 mm Plate Back Diameter (Max): 110±0.2 mm Total Length: 150±0.2 mm |
Test Probe 32 | IEC61032 | Dam-board Diameter:50mm Rod Diameter:25mm |
Test Probe 41 | IEC61032 | Test Rod Diameter: 30mm Rigid Finger Length:80mm Handle Diameter:50mm Handle Length:80mm |
Test Probe43 | IEC61032 | Probe Thickness: 5±0.05 mm Probe width: 50±15 mm Probe Length: 80±0.2 mm Reference standards : IEC610 32-1997 Bar Wide:50mm Thickness:5mm |
