GB4706 Creepage Distance Test Card to surface distance test
- 100 Piece / Pieces per Month
- shenzhen
- T/T Credit Card
You May Like
Product Details
| Brand Name | bnd | Place of Origin | Guangdong, China | |
| Model Number | IEC60065-2005 |
Safety Aluminum foil box for GB4706 Creepage Distance Test Card to surface distance test
Product Description
- For gauging the creepage and clearance distances in dead state between parts under voltage in the operating conditions as well as between touchable metal pieces and parts under voltage in the operating conditions. e. g. in installation material, switchgears, plugs, socket-outlets and electric appliances
according to IEC and CEE Publications,EN Standards,VDE Specifications. - It is used to determine the shortest path between two conductive parts, or between a conductive part and the bounding surface of the equipment, measured along the surface of the insulation, with specifications made according to the requirements.

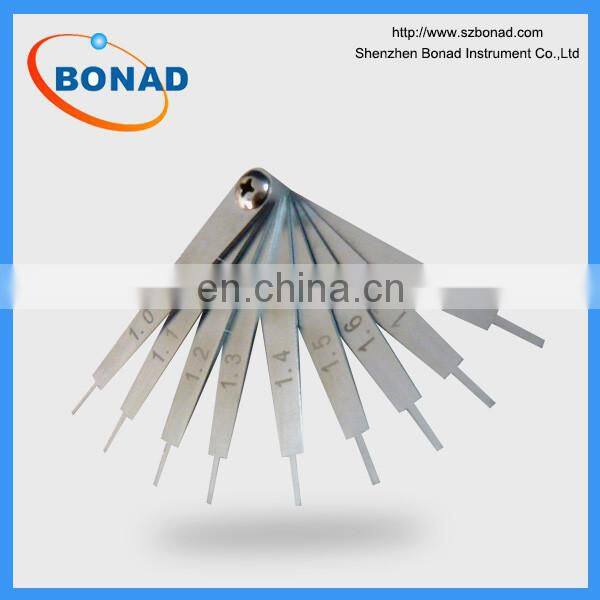

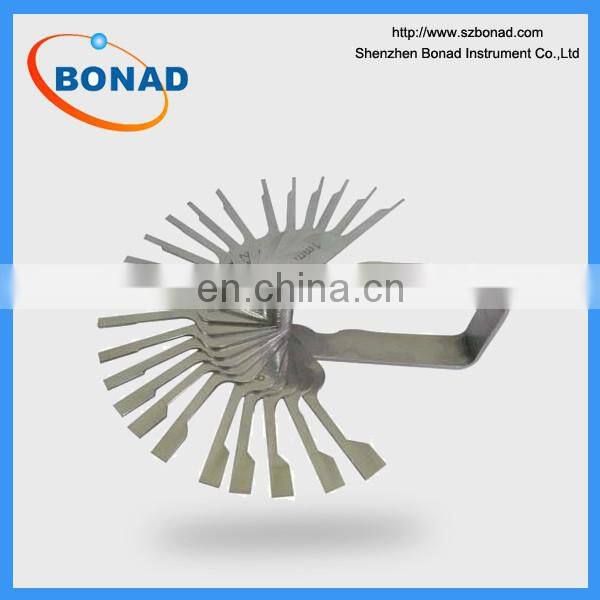

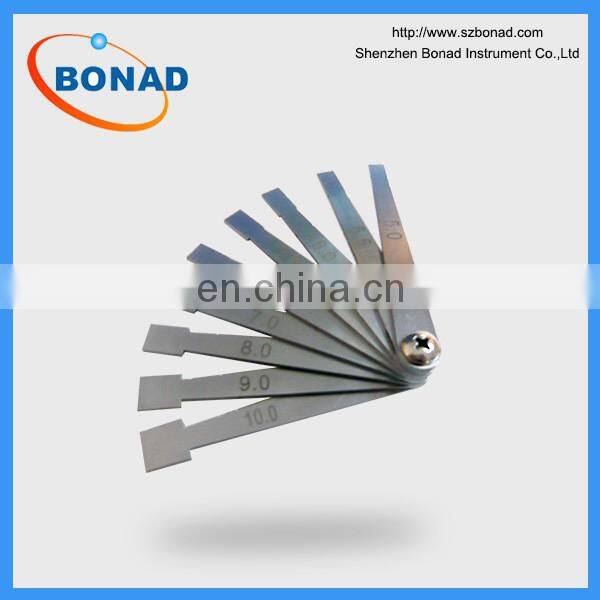

- Creepage distance test cardIEC60065-2005 IEC60598.1-2008 IEC60335.1-2006 IEC60601.1-2005 or feeler gauge is made of whole stainless steel.
| CX-PD10 | 1.0/2.0/2.5/2.8/3.2/3.6/4.0/5.0/5.6/6.3mm |
| CX-PD30 | 1/1.05/1.1/1.2/1.25/1.3/1.4/1.5/1.6/1.7/1.8/1.9/2.0/2.1/2.2/2.4/2.5/2.8/3.2/ 3.6/4.0/4.2/4.5/5.0/5.6/6.3/7.1/8.0/9.0/10mm |
| Standards | IEC60598.1-2008 IEC60335.1-2006 IEC60601.1-2005 |
| Customized size are offered. | |
Creepage Distance Gauges for gauging the creepage and clearance distances in dead state between parts under voltage in the operating conditions as well as between touchable metal pieces and parts under voltage in the operating conditions e. g. in installation material, switchgears, plugs, socket-outlets and electric appliances
according to IEC and CEE Publications,EN Standards,VDE Specification
Note
Test probe is precision stainless steel products, please use of gently and pay attention to maintenance
IEC60065-2005 IEC60598.1-2008
IEC60335.1-2006
IEC60601.1-2005
Our service
1.High quality guarantee.
2.Shipment with professional documents.
3.Packing as your request, with photo before shipment.
4.Reply within 48 hours and provide solution within 3 working days
4.Professional after-service from our engineers.
5.Warranty period 12 monthes.
Our advantages
Professional technology support.
Full experience of large numbers containers loading in Chinese sea port.
Fast shipment by reputed shipping line.
Best service after shipment with emails.
Best knowledge about Safety Testor and other related machine in USA/UK/INDIA/AUSTRALIA/CANADA/SOUTH AFRICA ETC
We are professional test equipment manufaturer in China with excellent experience and skills, also have best quality products
Our concept
1.Client is first. We are trying to bring maximum profit to our clients and offer best quality products
2.Credibility is the most important.
3.Quality control is our life.
4.Great sense of responsibility.
We will not only supply products service to you but also help you solve any other problem what we can do ,we can meet in this large world is our fate ,so we have been friends ,looking forward to meeting you !

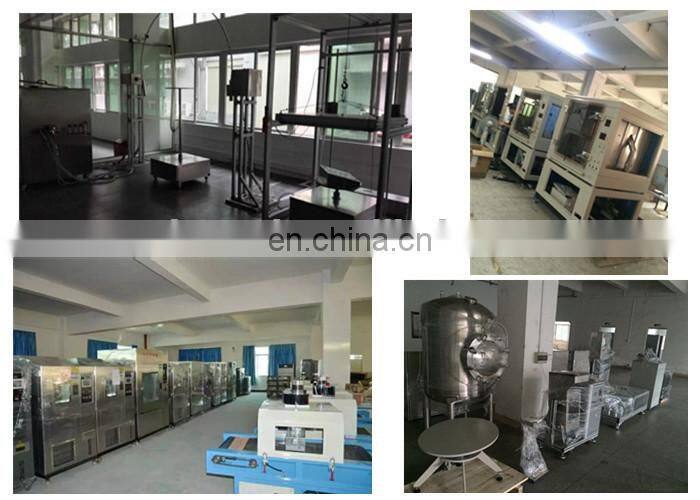

Our factory
If you need any other messages we are not show here ,please dont hesitate to contact us below ,we will glad if we can help you ,thanks !
Company Profile
14 Stanards drafted and issued by Labthink -- 100 Patents granted by Labthink -- 410 m2 Laboratory to provide testing services -- 20 years experienced lab technicians to provide solutions -- 12 months warranty -- Remote Services (Free of Charge allthrough lifetime)
