Home > Products > IEC test Probes > IEC 61032 long test pin probe 12 finger 13
IEC 61032 long test pin probe 12 finger 13
- 100 Piece / Pieces per Month
- shenzhen
- T/T Credit Card
You May Like
-
iec60335-2-24 fig 102 scratch test pin probe
-
Test hook probes IEC testing of integrity of enclosure seams
-
ul 749 iec knife probe for protective accessibility testing
-
Articulated metal UL 507 UL1310 Jointed UL100 test finger probe
-
high quality UL test finger probe for lab or electronic hazardous parts testing UL507
-
ul 1278 test finger probes for moving parts of floor insert fans
Product Details
| Brand Name | bnd-125 | Place of Origin | Guangdong, China | |
| Model Number | long test pin |
Safety Aluminum foil box for long test pin probe
Product Description

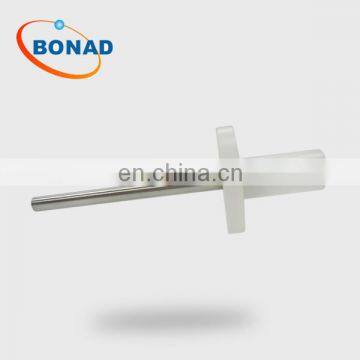

IEC 61032 long test pin probe made of stainless steel with a Delrin handle
The Long Test Pin (Figure 8 - Test probe 12) of IEC 61032.
This long test pin probe is intended to be used on appliances for verifying the inaccessibility of hazardous live parts or hazardous mechanical parts which are liable to be touched accidentally by a tool, for example a screwdriver or similar pointed object in normal use.
The Short Test Pin (Figure 9 - Test probe 13) of IEC 61032
the short test pin probe is intended to verify the protection against access to hazardous live parts in class 0 equipment and class II equipment (IEC 60536).
Both are made on stainless steel and are Polished.
Note
Long Test pin probe is precision stainless steel products, please use of gently and pay attention to maintenance
IEC61032
The probe Diameter:4mm
The probe Length:50mm
Dam-board Diameter:25mm
Dam-board Thickness:4mm
Product picture | Reference Standard | Specification |
Long test pin probe | IEC61032 | The probe Diameter:4mm The probe Length:50mm Dam-board Diameter:25mm Dam-board Thickness:4mm |
Short test pin probe | IEC60065 IEC60335-1 IEC61032 | The probe Diameter:Head 3mm Tail 4mm The probe Length:15mm Dam-board Diameter:25mm Dam-board Thickness:4mm |
