technical fabric, non-woven fabric Automatic air permeability test machine
technical fabric, non-woven fabric Automatic air permeability test machine

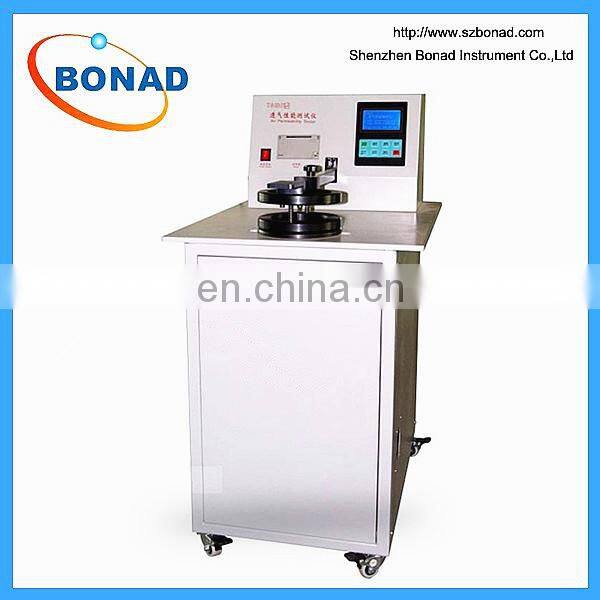

YG461Z automatic permeability tester can be used for testing the permeability of many kinds of fabrics, including technical fabric, non-woven fabric and other breathable material.
Standard:
GB/T 5453,ISO9237,AFNOR G07-111,ASTM D 737,BS 5636,JIS L 1096-A,DIN 53887
spec:
ausrement unit:mm/s(L/m2.s) range 0.6~10000 mm/s(L/m2.s)
2.Error:±3%
ure:50~500Pa
4.test area:5cm2,20cm2(≈Φ50mm),25cm2,38cm2(≈Φ70mm),50cm2,100cm2
standard configuration just with 20cm2, others need selective assembly.
Note: When changing the test area, the pressure plate above test head and clamping ring both need to be changed too.
5.tested fabric thickness:≤5mm
6.power supply:AC220V±5% 50Hz
7.fan power:370W model:HG-370-C
8.dimension:720mm×500mm×950mm
weight:54kg/90KG
How to order
1. Place the order and pay directly if you have no question to the product. 2. If you have some questions, don't bother to send me a message to ask. 3. After you have paid the money, we will deliver the goods as soon as possible. |
Packaging and Shipping
1. Aluminium box and carton box, careful and tight package, make sure the package is intact. 2. The package will be shipped by DHL/Fedex/TNT/EMS/UPS/China post/EF-Express/Special line, as you have chose in the order. 3. The shipping time is different, it depends on the distance bewteen us. At usual, exclude the preparing time, the goods would be sent to you in 5days. |
