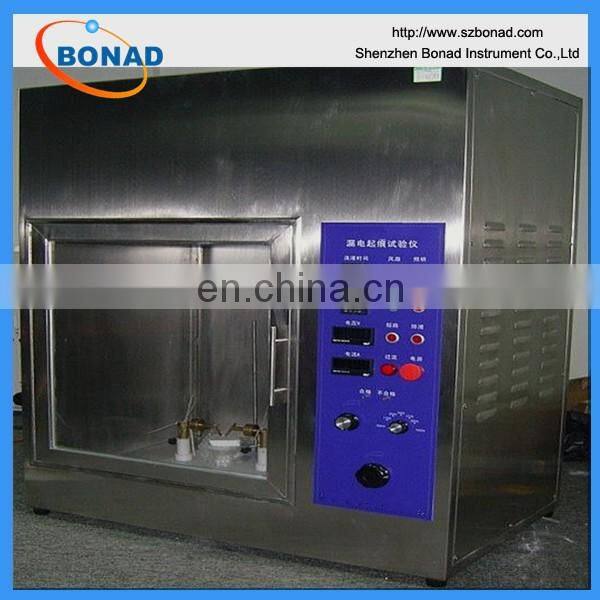

IEC60335-1 Leakage Current Testers/Tracking Index Apparatus

IEC60112,  IEC60335-1 Leakage Current testers/Tracking Index Apparatus

Standard: IEC60112,  IEC60335-1 ,iec60598-1, ASTM D 3638-92 and UL746A

BND-LD

Leakage Current testers Dielectric Tester conforms to IEC60112, UL746A, GB/T4207, GB4706.1, ASTM D 36-38-92 simulation test standard.

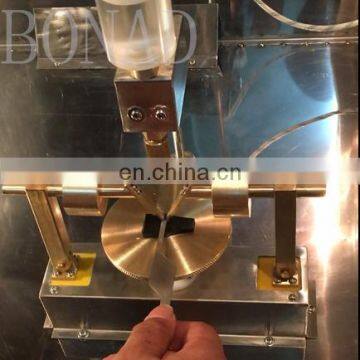

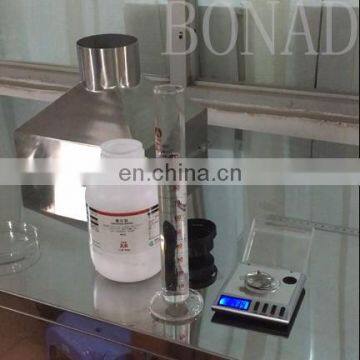

Electric leakage tester is to test on the insulated material surface, apply certain voltage between size of 2mm×5mm platinum electrodes for 30 sec, then drip conducting liquid (0.1%NH 4 CL) in the height of 35mm, to test the tracking resistance of the solid insulated material under humid surrounding and electric field. It can also test CTI and PTI.

Leakage Current testers Dielectric tester is widely used for testing the lighting equipment, low voltage electrical appliance, household appliance, machine tool appliance, electrical machine, electrical power tool, electrical instrument and device, information technology equipment, it can also test the insulated material, engineering plastic and electrical connectors.

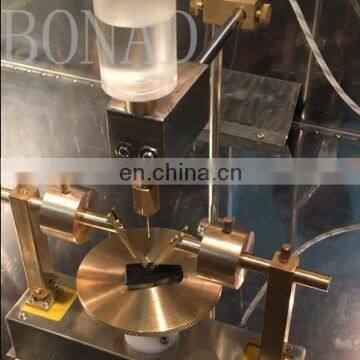

1, The electrode material: tip - platinum

2, The electrode pressure: 1.0 ± 0.05N

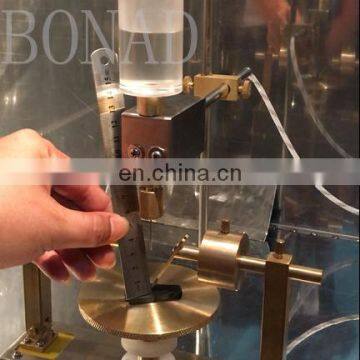

3, Electrode distance: 4.0mm ± 0.01mm, the angle 60 ° ± 5

4, Electrode voltage: 100 ~ 600V (48 ~ 60HZ) adjustable, short-circuit current 1.0 ± 0.1A voltage drop of less than 10%

5, Dropping height: For 30 ~ 40mm adjustable

6, Dropping size: 44 ~ 55 drops / 1cm3 adjustable

7, Dropping time: 30s ± 5s,

8, Drip: 0 ~ 9999 times available

9, The leakage judgment: loop current is greater than 0.5A and maintained for 2 seconds, cut off the current relay indicates sample failed

10, The testing process: test procedures automatic control, independent ventilation

11, Reference standard: IEC60112, GB / T4207, GB4706.1

12, Studio Volume: 0.5m3,
