Footwear Safety Shoes Compression And Puncture Testing Machine Resistance Tester
Footwear Safety Shoes Compression And Puncture Testing Machine Resistance Tester
Footwear Safety Shoes Compression And Puncture Testing Machine Resistance Tester
Summary:

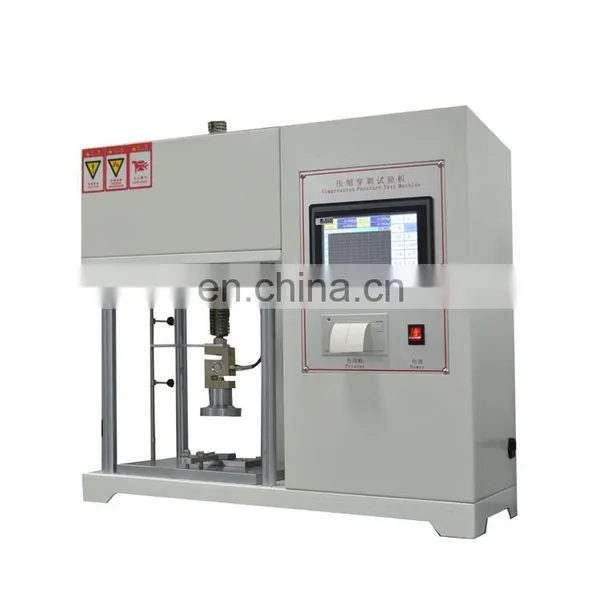

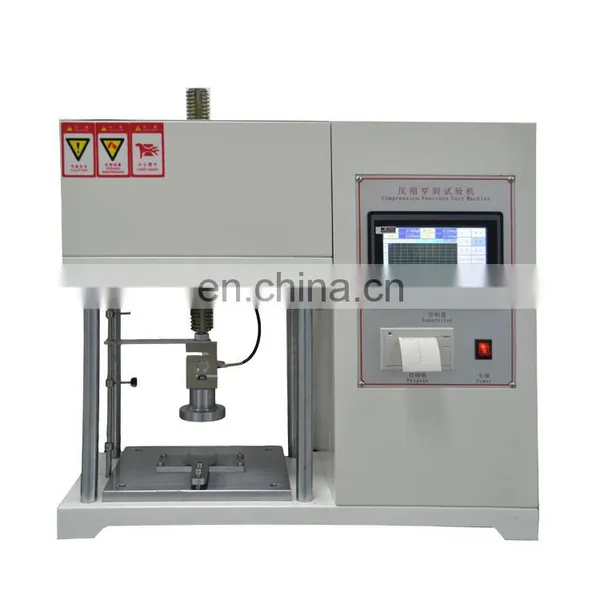

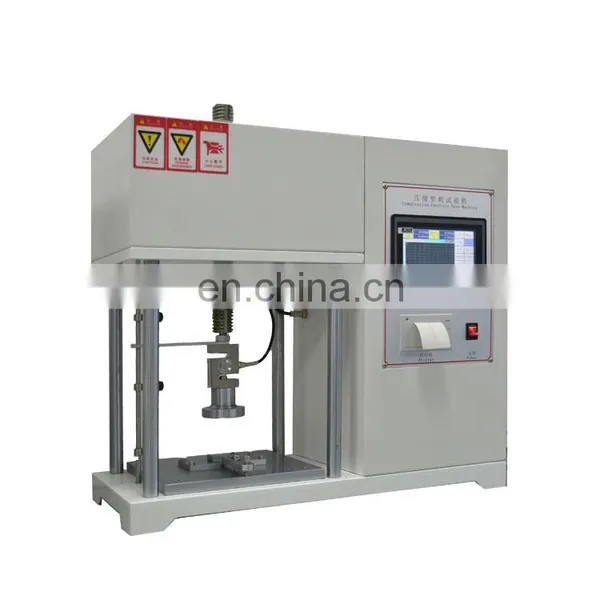

Footwear Safety Shoes Compression And Puncture Testing Machine Resistance Tester is used to measure the compression strength for safety shoes steel head and puncture-resistant performance for steel plate.
It Suitable for all types of steel head compression for safety shoes and puncture-resistant test for steel plate,
and to prevent the injury of accident to operators in the workplace by wearing owing to the security of shoes.
Standards:
ISO 20344 5.5/EN 12568 5.1.3.1.1 for compression tester for toe cap& ISO 20344.5.8.2 nail penetration test for sole
Specifications:
sensor capacity |
20KN , 15±0.1KN |
load resolution |
1/20000 |
Accuracy |
within 1% |
Press plate hardness |
60HRC |
Puncture steel nail |
Diameter :4.5±0.05)mm, hardness:60HRC |

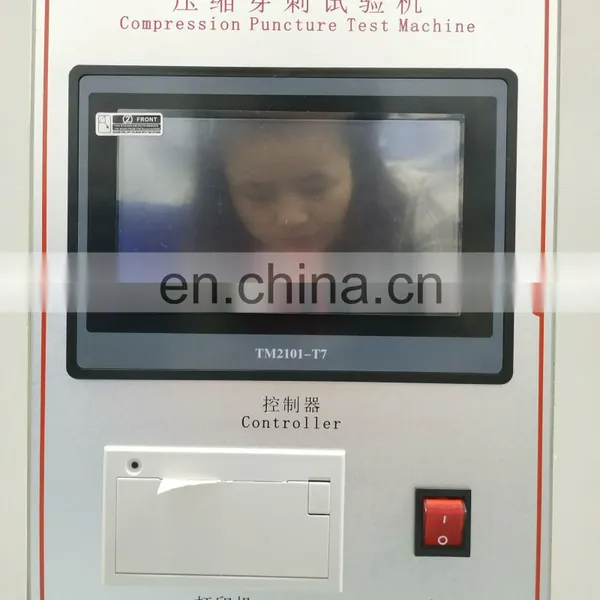

display system |
English controller |
Test speed |
5-500 mm/min, the speed can be adjustable Compression speed: (5±2)mm/min Puncture speed:(10±3)mm/min |
Stroke display |
0.01mm |
Unit |
Kg, N. LB can be changed each other |
Motor |
AC motor+ reducer |
Measuring fixture |
compression/puncture fixture |
dimension |
82*58*71cm |
weight |
148kg |
Power |
AC220V 50HZ 0.4KW |
Universal tensiel tester(5T) Universal tensile tester(200kg) Mobile drop tester(1.5/2m) Wire elongation tester
Humidity climatic chamber Dust test chamber 339 Abarasion tester Moving die Rheometer
We have professional packing workers to pack your products!
Packing:
1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
Shipping:
You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt ofyour order. It's more preferable for you to provide us with your own FEDEX/DHL account number so that the delivery charge can be charged directly from your account.
