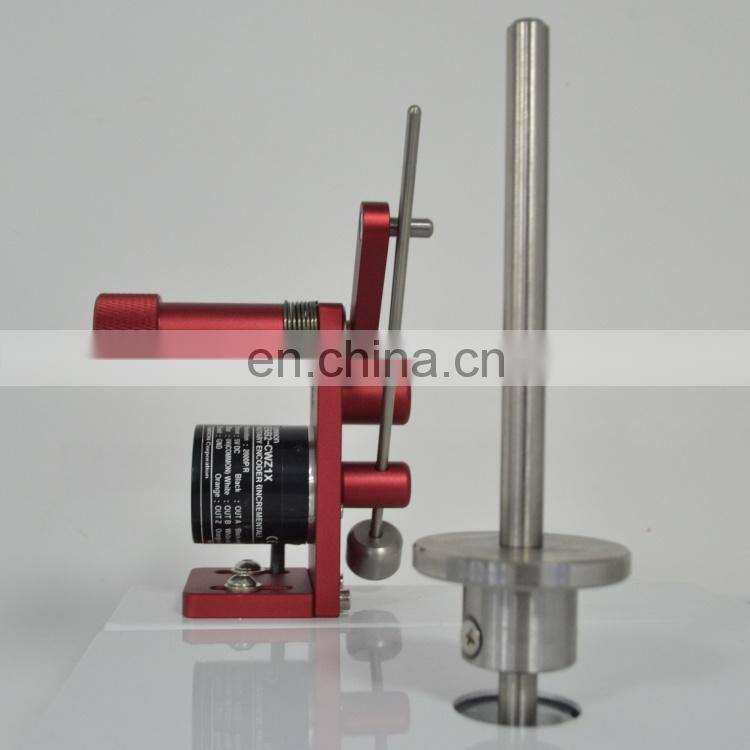

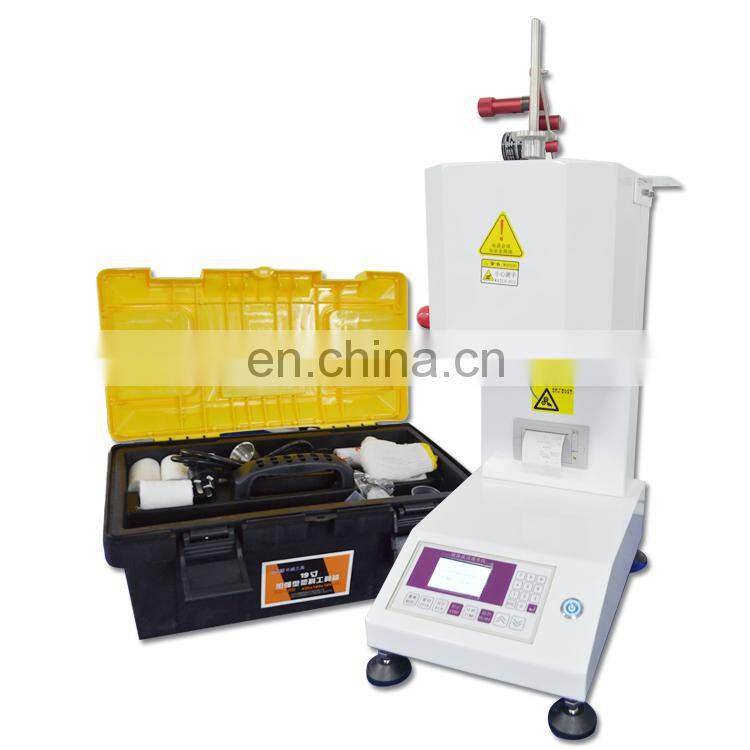

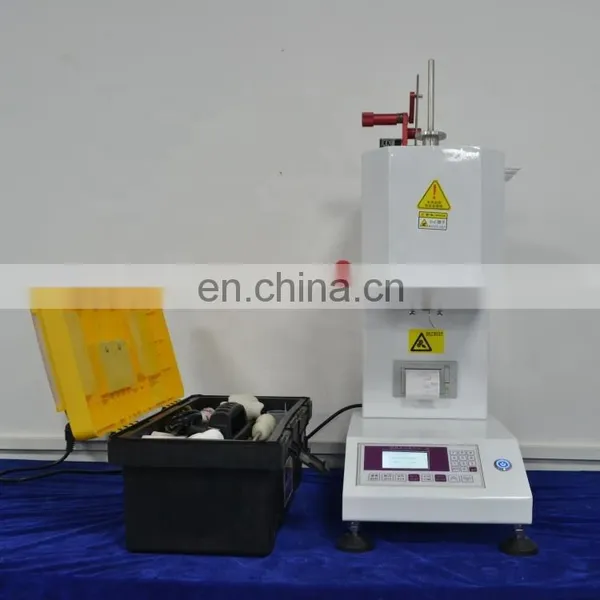

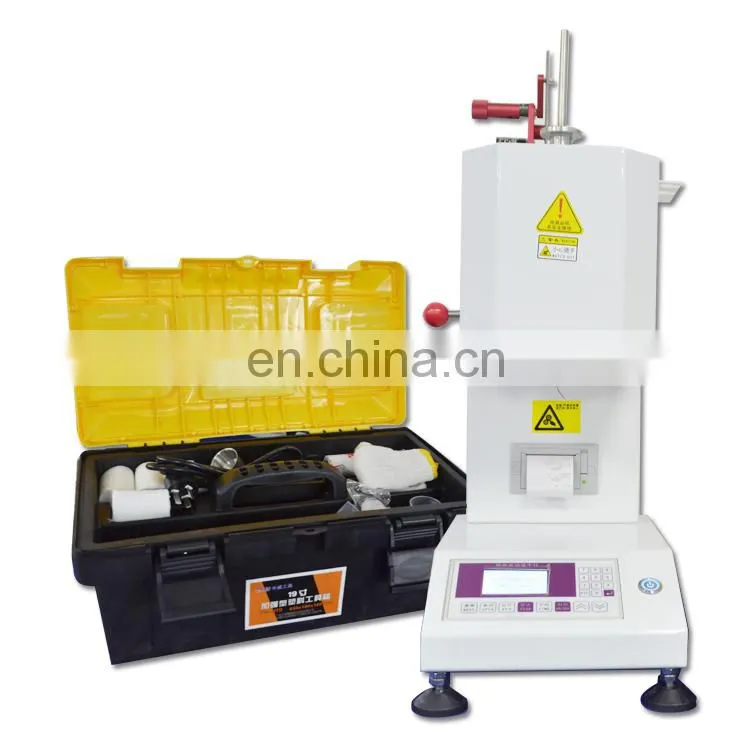

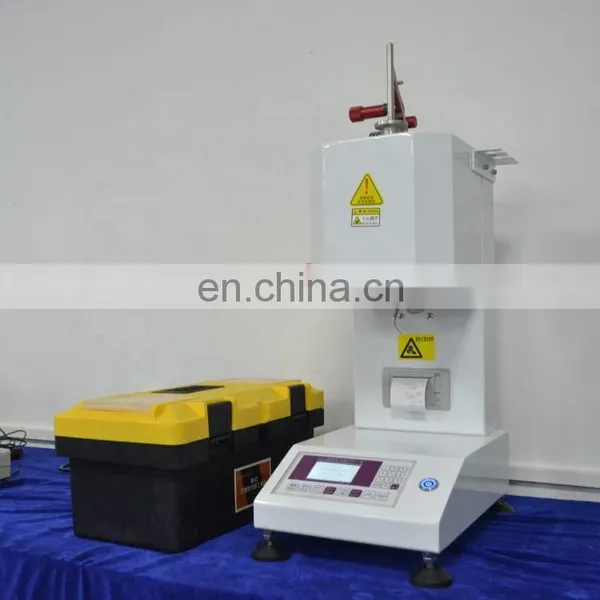

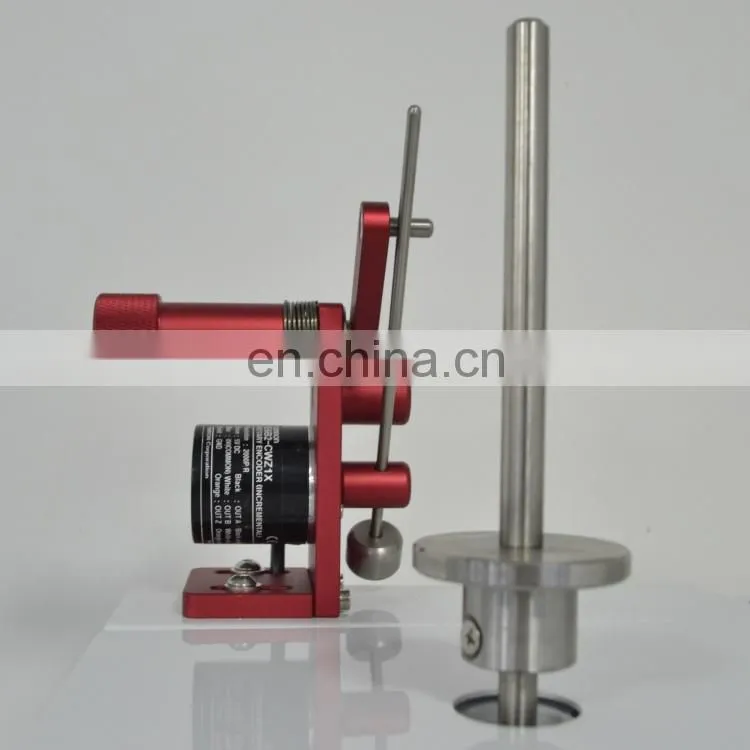

ZONHOW Melt Flow Index MFR & MVR Tester,
MVR Method Melt Flow Rate Plastic Testing Machine
Summary:
ZONHOW Melt Flow Index MFR & MVR Tester, MVR Method Melt Flow Rate Plastic Testing Machine used to measure the thermoplastic resin melt mass flow rate (MFR), melt flow rate (MVR) volume and the density of the melt, it is not only applicable to the high melting temperature of polycarbonate, nylon, fluorine plastic, aromatic sulfones engineering plastics, also applies to polyethylene, polystyrene, polypropylene, ABS resin, poly formaldehyde resin with lower melting temperature, such as plastic test, widely used in plastic raw materials, products, petroleum and chemical industries, and related colleges and universities, scientific research units and the commodity inspection department.
Standards:
GB/T3682-2000,ISO1133-97, ASTM1238
Features:
1.Using advanced electronic measurement technology, liquid crystal display test results, the micro printer output results and calculating the quality of the melt flow rate (MFR) or melt volume flow rate (MVR) (note: single determination value and many times the average of the cutting material).
2.Tester compact structure, beautiful, the control system can real time measurement and display temperature numerical, has the upper limit temperature protection, constant temperature sound reminders, response time tip etc. Function. The use of advanced PID control technology and high speed and high resolution sampling circuit, make the machine in constant temperature is the following characteristics:
A: heating speed, the dinky overshoot.
B: constant temperature and high precision.
C: in the packing after, can quickly restored constant temperature condition.
Cheap 380V Customized Tablet MFI Tester can be used for ABS, polystyrene, polyethylene, polypropylene, polyamide, fiber, resin, acrylate, POM, fluorine plastic, polycarbonate and other plastic materials, the melt flow rate (MFR) or themelt volume flow rate (MVR) to be determined.
Advantage
1. Fast heating speed, very small overshoot.
2. High precision of constant temperature.
3. Can accelerate recover to constant temperature condition after padding.
4. Can use manual and automatic material trimming test method.
5. LCD display, equipment with built-in micro printer, test result can be printed autocratically.
6. Combined with MVR and MFR test method.
Etc...
Main Parameters:
Test Method |
MFR & MVR |
Charging barrel diameter |
9.55±0.025mm |
Outlet diameter |
8.000±0.025mm
|
Diameter of die head |
Φ2.095±0.005mm/Φ1.05mm±0.005mm
|
Temperature range |
RT~450°C |
Temperature display resolution |
0.1°C |
Temperature fluctuation |
±0.2°C |
Time display resolution |
0.1S |
Weight accuracy |
±0.5%
|
Displacement sensor |
0.01mm |
Displacement measuring encoder |
Omron optical rotary encoder
|
MFR test range |
0.1-150g/10min
|
MVR test range |
50-800cm3/10min
|
Output |
Mini printer |
Cutting method |
Automatic and Manual
|
Test load |
Total 8 level, 8 sets of weight |
Power |
AC220V±10% 50HZ |
