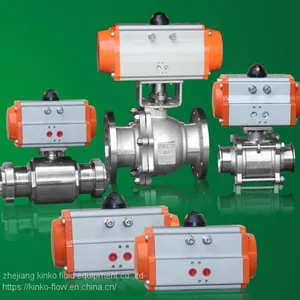

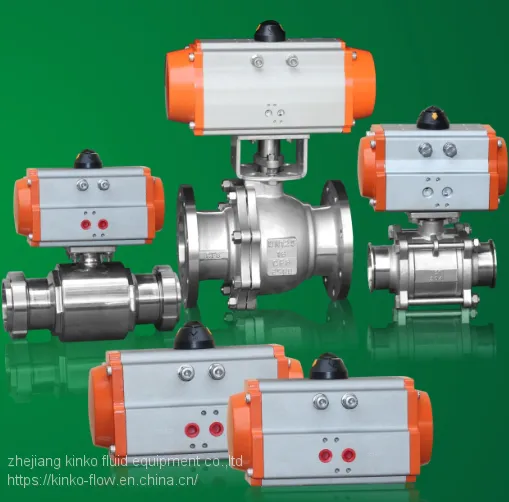

Help CenterSpring Return Double Acting Pneumatic Actuated Rotary Angle 90degree for Ball Valve and Butterfly Valve
Related Products
-
Three Stops Spring Return Double Acting Pneumatic Actuated Rotary Angle 90degree for Ball Valve and Butterfly ValveUS$ 12 - 1250MOQ: 100 Pieces -
Spring Return Double Acting Pneumatic Actuated Rotary Angle 90degree for Ball Valve and Butterfly ValveUS$ 12 - 1250MOQ: 100 Pieces
-
Spring Return Double Acting Pneumatic Actuated Rotary Angle 90degree for Ball Valve and Butterfly ValveUS$ 12 - 1250MOQ: 100 Pieces
-
Spring Return Single Acting Pneumatic Actuated Rotary Angle 90degree for Ball Valve and Butterfly ValveUS$ 18.5 - 1550MOQ: 100 Pieces
-
On/off Explosion Proof Aluminum Electric ActuatorUS$ 47 - 263.6MOQ: 100 Pieces
All Rotary actuators are Rack and Pinion design and are available in 90 deg. These have high torque to weight ratio for faster cycle times.
Ideal for ball valve, butterfly valves, dampers, indexing mechanisms.
Main body housing rack and pinion is made from solid bar stock or close grained casting. The outer surface of the actuator is specially designed and has a smooth surface (special design on demand) for typical pharma application - hence cleaning becomes very simple.
Features:
• Ball valves / Butterfly valves of required sizes & materials and can be coupled with pneumatic actuator (single acting, spring return or double acting) and solenoid valves.
• Dom type position indicator for on-off indication can also be provided with above assembly.
• Above valves can also be provided with Pneumatic / Electro-Pneumatic Positioner with input supply of 3-15 Psi / electrical signal of 4 to 20 mamps for percentage opening of the valves.
Technical Specifications:
• Double acting / single acting spring return actuators
• Degree of rotation: 90 Deg
• Rack & pinion mechanism
• High torque & durability.
• ISO standard with NAMUR mounting arrangement
Actuator Model：AT pneumatic actuator
Actuator Material：Aluminium Alloy
Action：double- acting, single acting normally closed, single acting normally open
Rotary Angle: 90°
Output Torque : 6.2NM-4944NM
Cylinder Size ： 32mm-270mm
Air Pressure：4~8bar
Working Temperature ：-20ºC~+80ºC
Standard GB/ISO/DIN
Shrink film+Polyfoam+Carton/Plywood Case/Customer Requirements
Our difference with others
1) All bolts & Nuts are SS304
2) All Piston are hard anodizing
3) Packing:Foam + small carton box to protect goods
4) Laser fonts on body
