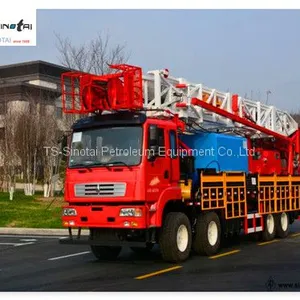

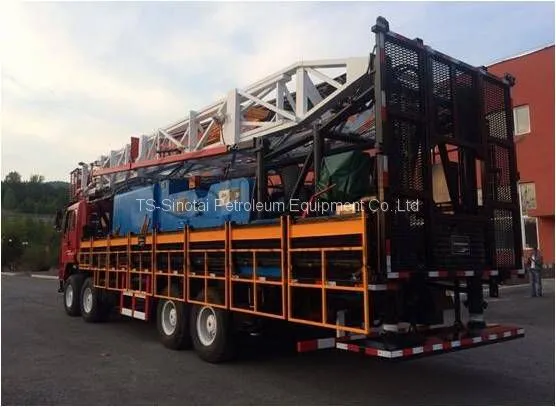

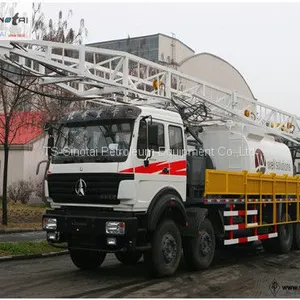

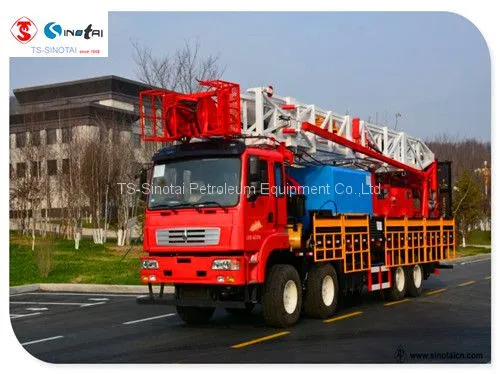

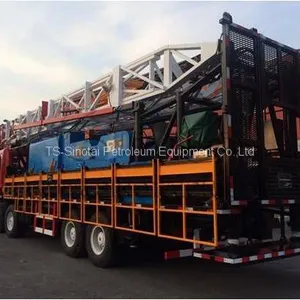

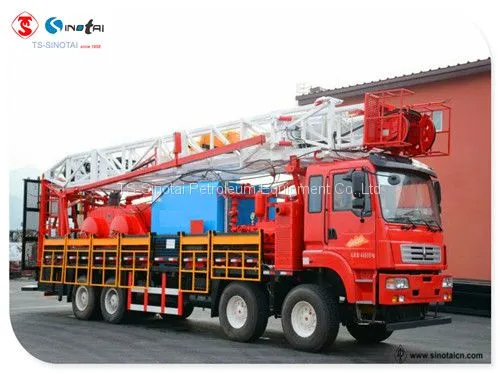

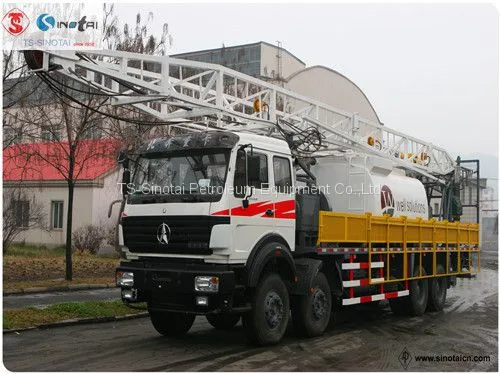

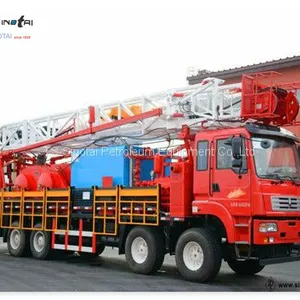

Flushby unit
The flushby Unit is a multifunctional equipment mainly used for well flushing and sand washing in thick oil well, and performing quick workover service of shallow/thick oil well. It is the next generation of service machine that outperforms service unit, pump truck and crane truck working together.
Flushby unit can substitute the crane, flush truck, pump truck in sand washing work of thick oil well in rotary screw pump type. It can also work as a light and efficient small workover rig. It is a true all in one complex unit.
The mast is equipped with long diagonal draw bar to open and shut automatically, which makes the rig not only facilitate horizontal drilling, but also act on a well slanted at a 45 degree angle.
1. Basic parameters of Flushby Unit
Nominal hook load: 600kN
Max. hook load: 700 kN
It is suitable for 4000m well depth workover operation with (2-7/8’’ tubing).
Working condition (LXWXH) mm: 13000×3760×22400
Shipping condition (LXWXH) mm: 13000×2760×4400
2. Mast
Mast structure: Double section, п type mast
Mast height: 22m
3. Triplex plunger pump
Model: HTB200
Diameter of plunger: φ100mm
Stoke length: 135mm
Max. pressure: 35MPa
Drive ratio of reducer: 4.6
