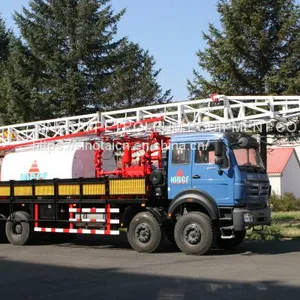

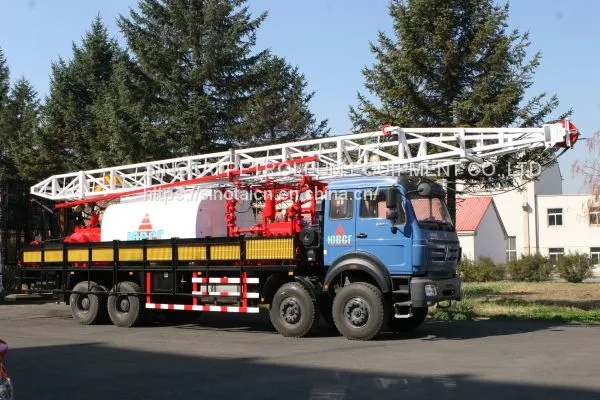

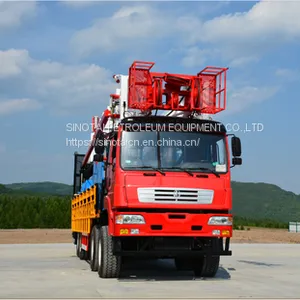

Flushby Unit
The flushby unit is a multifunctional equipment mainly used for well flushing and sand washing in thick oil well, and performing quick workover service of shallow/thick oil well. It is the next generation of service machine that outperforms service unit, pump truck and crane truck working together.
Highlights:
Flushby rig can substitute the crane, flush truck, pump truck in sand washing work of heavy oil well in rotary screw pump type. It can also work as a light and efficient small workover rig. It is a true all in one complex unit. .
The mast is equipped with long diagonal draw bar to open and shut automatically, which makes the rig not only facilitate horizontal drilling, but also function on a well slanted at a 45 degree angle.
Technical parameters |
JLXJ22.5 |
JLXJ27 |
JLXJ40 |
JLXJ45 |
JLXJ60 |
Rated hook load(kN) |
225 |
270 |
400 |
450 |
600 |
Mast Height(m) |
18 |
24 |
18 |
24 |
22 |
Max. Static Hook Load(kN) |
360 |
360 |
700 |
||
Traveling System |
2×3 |
2×3 |
3×4 |
3×4 |
2×3 |
Triplex Pump Input Power (kW) |
135 |
145 |
145 |
145 |
145 |
Triplex Pump Water Power (kW) |
118 |
130 |
130 |
130 |
130 |
Triplex Pump Max. Pressure(MPa) |
35 |
35 |
35 |
35 |
35 |
Max. Working Pressure(MPa) |
0.6 |
0.6 |
0.6 |
0.6 |
0.6 |
Tank Volume(m³) |
8 |
9 |
9 |
9 |
6 |
Tank working temperature(℃) |
0—40 |
0—40 |
0—40 |
0—40 |
0—40 |
Tank Suitable Media Temperature(℃) |
0—120 |
0—120 |
0—120 |
0—120 |
0—120 |
Moving dimension (length x width x height)( m) |
15.40x2.50x4.10 |
13.40x2.76x4.10 |
15.40x2.76x4.10 |
15.40x2.76x4.10 |
13.00x2.60x4.30 |
Chassis |
self-propelled chassis/ second-class chassis |
self-propelled chassis/ second-class chassis |
self-propelled chassis/ second-class chassis |
|
|
