Snubbing Unit (Skid-mounted Independent Snubbing Unit)

Snubbing Unit (Skid-mounted Independent Snubbing Unit) thumbnail-1
Snubbing Unit (Skid-mounted Independent Snubbing Unit) thumbnail-2

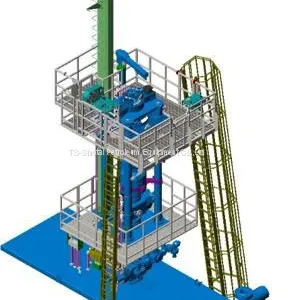

Snubbing Unit (Skid-mounted Independent Snubbing Unit) thumbnail-3
Snubbing Unit (Skid-mounted Independent Snubbing Unit) thumbnail-4
Snubbing Unit (Skid-mounted Independent Snubbing Unit) photo-1

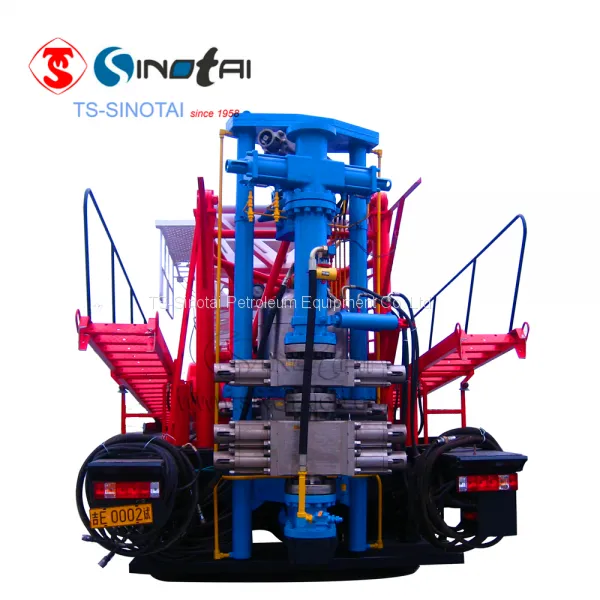

Snubbing Unit (Skid-mounted Independent Snubbing Unit) photo-2

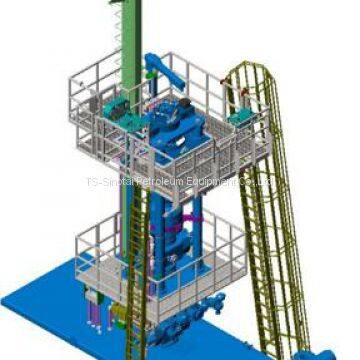

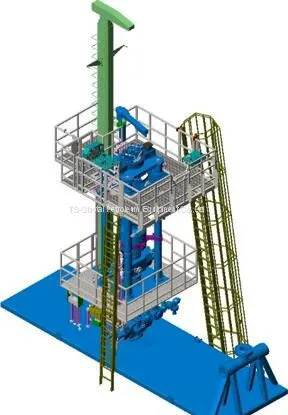

Snubbing Unit (Skid-mounted Independent Snubbing Unit) photo-3

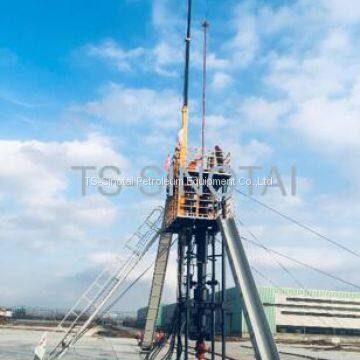

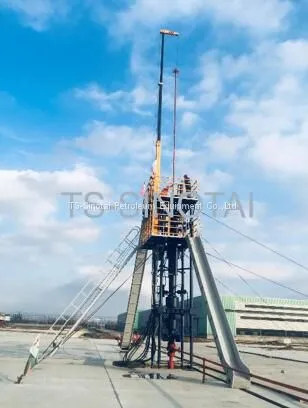

Snubbing Unit (Skid-mounted Independent Snubbing Unit) photo-4
US$ 1400000 - 1700000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
TS-SINOTAI
Place of Origin:
China
Model Number:
100t
Contact Supplier Request Quote Chat Now
TS-Sinotai Petroleum Equipment Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name TS-SINOTAI
Place of Origin China
Model Number 100t
Type Rotary Drilling Rig
Certification API
After-sales Service Provided Engineers available to service machinery overseas
Warranty 1 year
Weight 30t
Dimension(L*W*H) 7.8m×2.4m×2.7m
Power Type Diesel
Voltage 380V/220V
Condition New
Power(W) 354KW

Skid-mounted independent snubbing unit can work both conventional operation and oil and gas snubbing services, unit designed with high safety, firm structure, it does not require mass maintenance even in severe environment. The product design meets the requirements of the manufacturer, all pressure components meet the requirements of sulfur prevention in NACE TRIM MR01-75 and API 16A standard. The complete machine meets the relevant technical requirements of IRP 15 of Canada.

No.

Name

Parameter

1

Operating Temperature Range

-29℃~ +52℃

2

Max. Lift

1020 KN（240,000lbs）

3

Max. snub

600KN (132,000 lbs)

4

Complete   machine drift and pressure

7-1/16″(φ179.4)mm，70Mpa

5

Rotary table torque

8400N·M

6

Upper platform

Fully expanded   size: 2.9m×2.7m

7

Lower platform

Size: 2.4m×2.6m

8

slips（traveling slip and stationary slip）

Drift：7-1/16″(φ179.4)mm；

Rated   load：1130KN（250,000lbs）；

Slip insert size：1" ～ 5-1/2"

9

Annular preventer

Drift：7-1/16(φ179.4)mm；rated pressure：35MPa

10

Ram   BOP

Drift：7-1/16(φ179.4)mm；rated pressure：70MPa

11

Balance/bleed system

Rated working pressure：70MPa

12

Power   tong arm

Rated   load： 0.6t

13

Gin Pole

Rated load： 1.5t (4 times safety)

14

Gin   Pole transport（gin pole carrier+ Gin Pole）

Dimension：8.6m×1.2m×1.3m

15

Main unit transport（main unit + main unit carrier）

Dimension:7.8m×2.4m×2.7m；/20t

16

Well   head stabilizing device

Rated   load： 50t


Product Tags: Snubbing unit , Snubbing
