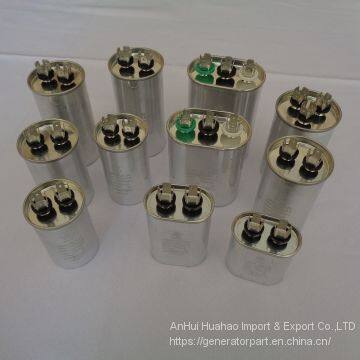

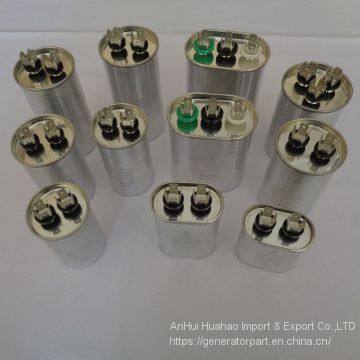

CBB65 Air Conditioner Refrigerator Capacitor
US$ 0.6 - 3
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
PGPS
Place of Origin:
China
Model Number:
CBB65
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
15 days
Related Products
-
AC Motor Start Capacitor Bakelite Case UL Ce TUV ApprovalUS$ 0.6 - 4MOQ: 100 Pieces -
CD60 50UF 100UF 150UF 200UF 250UF 250VAC Cable AC Motor Start CapacitorUS$ 0.6 - 4MOQ: 100 Pieces
-
CBB60 4 Pin 6UF 8UF 10UF 12UF 16UF 18UF 20UF 25UF 30UF 35UF 450VAC Motor CapacitorUS$ 0.6 - 4MOQ: 100 Pieces
-
CBB60 CBB61 CBB65 CD60 Motor Run and Start Air Compressor Conditioner Refrigerator CapacitorUS$ 0.2 - 3MOQ: 100 Pieces
-
High Quality SX460 AVR For Stamford AlternatorUS$ 8 - 15MOQ: 10 Pieces
Brand Name
PGPS
Place of Origin
China
Model Number
CBB65
Type
Polypropylene Film Capacitor
Application
Air Conditioner
Rated Voltage
370-450V
Operating Temperature
0-85
Package Type
Surface Mount
Capacitance
0-100uf

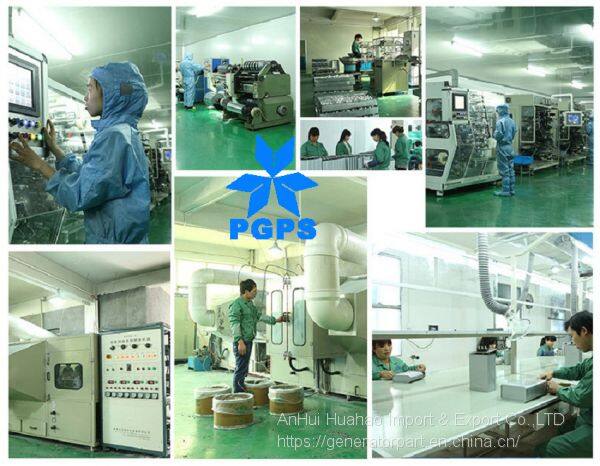

Work Shop Show

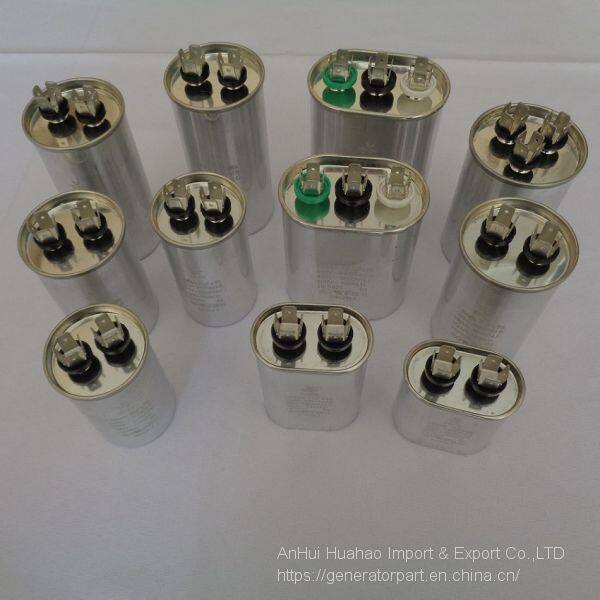

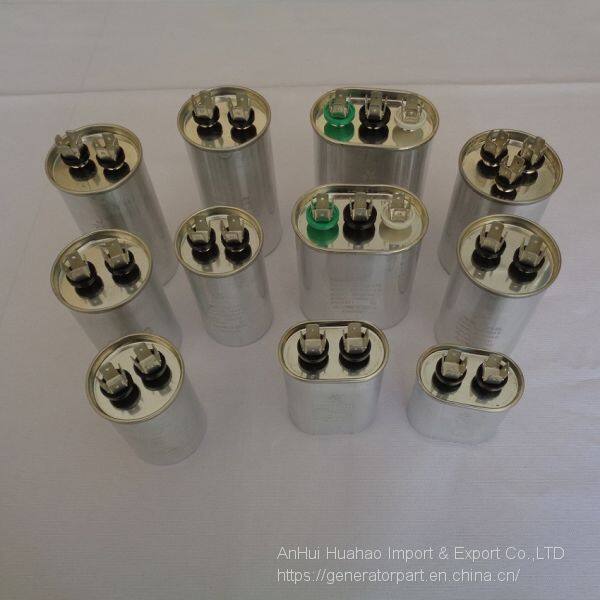

CBB65 Air Conditioner Capacitor
Features and use:
The product is equipped inside with reliable explosion-proof equipment and is highly safe. With its good self-healing characteristic and long life-span, it is widely used for air-conditioners, refrigerators,generators,illuminating lamps, etc.
Technical Specifications
| Working Temperature Range | climate types: 40/85/21 |
| Rated Voltage Range | 250-450VAC |
| Rated Capacitance Range | 3-100uF |
| Dissipation Factor | Tan ≤0.002 (50Hz) |
| Rated Tolerance of capacitance | 5% 10% |
| Testing Voltage | between leading-out ends: 1.75UR 10S no break down |
| Insulation resistance | between leading-out ends: 3000 |
Dimension:
|
Capacitance μF |
Round Type | Oval Type | |||
| D(mm) | H(mm) | L(mm) | B(mm) | H(mm) | |
| 5 | 42 | 60 | 52 | 32 | 60 |
| 7.5 | 42 | 60 | 52 | 32 | 60 |
| 10 | 42 | 70 | 52 | 32 | 8 |
| 12.5 | 42 | 70 | 52 | 32 | 60 |
| 15 | 42 | 80 | 52 | 32 | 60 |
| 20 | 45 | 80 | 71 | 45 | 80 |
| 25 | 45 | 90 | 71 | 45 | 80 |
| 30 | 50 | 100 | 71 | 45 | 90 |
| 35 | 50 | 100 | 71 | 45 | 90 |
| 40 | 50 | 110 | 71 | 45 | 90 |
| 45 | 50 | 110 | 71 | 45 | 90 |
| 50 | 50 | 110 | 71 | 45 | 90 |
| 55 | 55 | 130 | 71 | 45 | 110 |
| 60 | 55 | 130 | 71 | 45 | 110 |
| 70 | 60 | 120 | 71 | 45 | 110 |
| 80 | 60 | 120 | 71 | 45 | 130 |
note:
Special specs are available on request
