CD60 50UF 100UF 150UF 200UF 250UF 250VAC Cable AC Motor Start Capacitor
US$ 0.6 - 4
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
PGPS
Place of Origin:
China
Model Number:
CD60-A
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
15 days
Related Products
-
CBB60 4 Pin 6UF 8UF 10UF 12UF 16UF 18UF 20UF 25UF 30UF 35UF 450VAC Motor CapacitorUS$ 0.6 - 4MOQ: 100 Pieces -
CBB60 CBB61 CBB65 CD60 Motor Run and Start Air Compressor Conditioner Refrigerator CapacitorUS$ 0.2 - 3MOQ: 100 Pieces
-
CBB65 Air Conditioner Refrigerator CapacitorUS$ 0.6 - 3MOQ: 100 Pieces
-
AC Motor Start Capacitor Bakelite Case UL Ce TUV ApprovalUS$ 0.6 - 4MOQ: 100 Pieces
-
High Quality SX460 AVR For Stamford AlternatorUS$ 8 - 15MOQ: 10 Pieces
Brand Name
PGPS
Place of Origin
China
Model Number
CD60-A
Type
Aluminum Electrolytic Capacitor
Application
AC / Motor
Rated Voltage
110-330VAC
Operating Temperature
0-65
Package Type
Surface Mount
Capacitance
36-1000uf

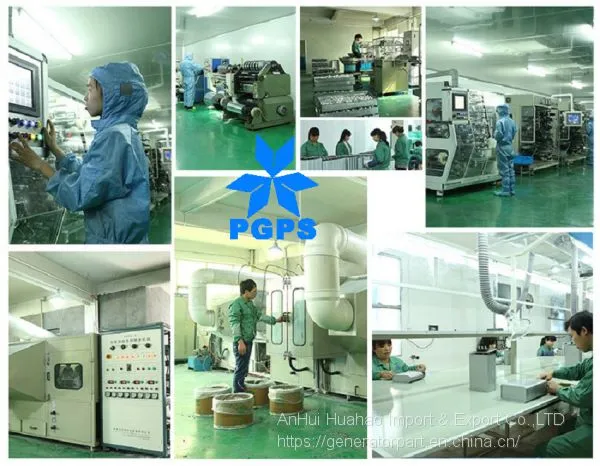

Work Shop Show

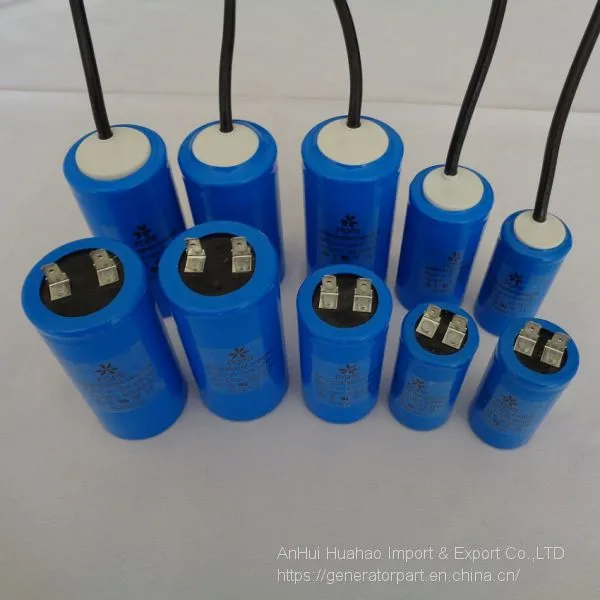

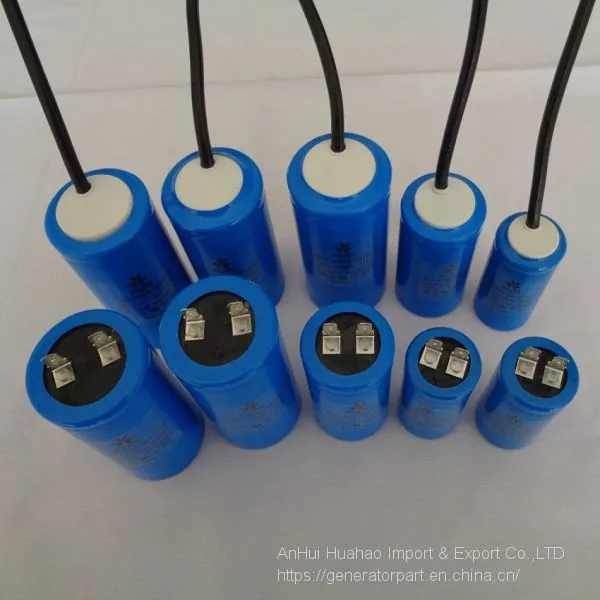

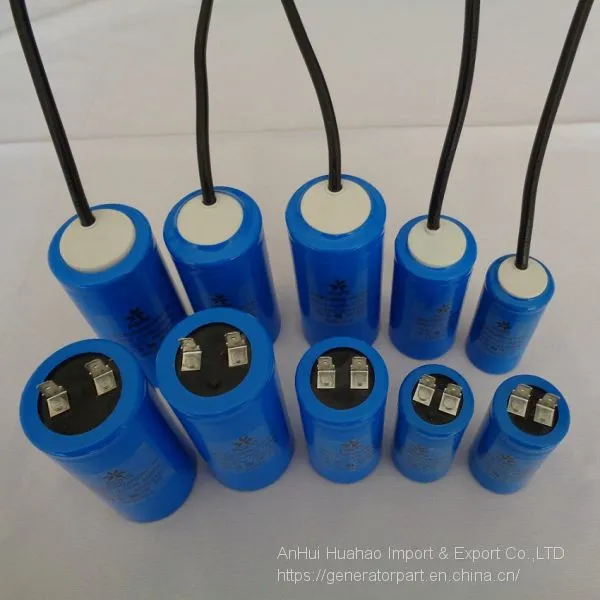

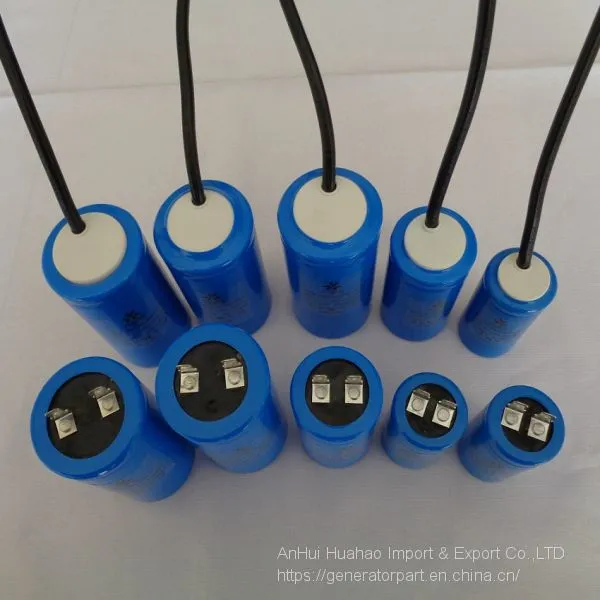

CD60 Motor Start Capacitor
Aluminum Electrolytic Capacitor
Features and use:
lt applies to A.C.single phase motor,with frequency 50/60Hz,rated voltage 110-330VAC. lt can help motors gain high torque with low starting current and make motorstart nomally.lt can also start tore frigerators and compressors of air condition,etc.
Technical Specifications
|
Working Temperature Range |
-25-55ºC |
| Rated Voltage Range | 110-330VAC |
| Rated Capacitance Range | 50-1000uF |
| Dissipation Factor | Tan ≤ 0.01 (50 Hz) |
| Rated Tolerance of capacitance | 0-20% |
| Without Voltage Between Terminal | Apply 1.25 times working voltage, for 2 Seconds,with out break down or explosion |
| Withstand Voltage Between Terminal and case | 2000Vac ,for 10 seconds,without break down or explosion |
Dimension:
| Capacitance μF |
Rated Voltage 115VAC |
Rated Voltage 165VAC |
Rated Voltage 200-250VAC |
Rated Voltage 330VAC |
| 50 | 34×80 | 34×80 | 34×80 | 34×80 |
| 75 | 34×80 | 34×80 | 34×80 | 34×80 |
| 100 | 34×80 | 34×80 | 42×70 | 42×70 |
| 150 | 34×80 | 34×80 | 42×70 | 42×70 |
| 200 | 42×70 | 34×80 | 42×70 | 42×70 |
| 250 | 42×70 | 42×70 | 42×70 | 50×100 |
| 300 | 42×70 | 42×70 | 42×70 | 50×100 |
| 350 | 50×100 | 42×70 | 42×70 | 50×100 |
| 400 | 50×100 | 50×100 | 50×100 | 50×100 |
| 500 | 50×100 | 50×100 | 50×100 | 50×100 |
| 600 | 50×100 | 50×100 | 50×100 | 50×120 |
| 700 | 50×120 | 50×120 | 50×120 | 50×120 |
| 800 | 50×120 | 50×120 | 50×120 | 50×120 |
| 1000 | 50×120 | 50×120 | 50×120 | 50×120 |
note:
Special specs are available on request
