CBB60 CBB61 CBB65 CD60 Motor Run and Start Air Compressor Conditioner Refrigerator Capacitor

CBB60 CBB61 CBB65 CD60 Motor Run and Start Air Compressor Conditioner Refrigerator Capacitor thumbnail-1
CBB60 CBB61 CBB65 CD60 Motor Run and Start Air Compressor Conditioner Refrigerator Capacitor thumbnail-2
CBB60 CBB61 CBB65 CD60 Motor Run and Start Air Compressor Conditioner Refrigerator Capacitor thumbnail-3
CBB60 CBB61 CBB65 CD60 Motor Run and Start Air Compressor Conditioner Refrigerator Capacitor thumbnail-4

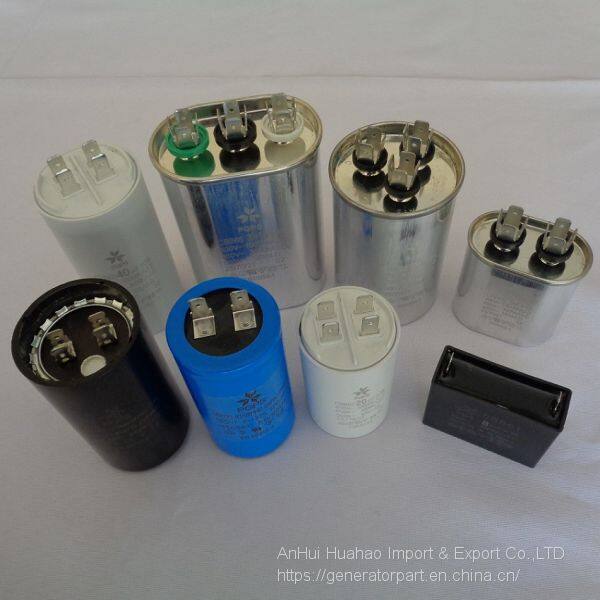

CBB60 CBB61 CBB65 CD60 Motor Run and Start Air Compressor Conditioner Refrigerator Capacitor photo-1

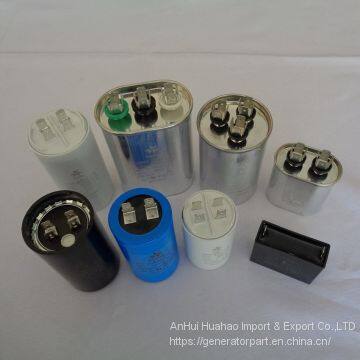

CBB60 CBB61 CBB65 CD60 Motor Run and Start Air Compressor Conditioner Refrigerator Capacitor photo-2

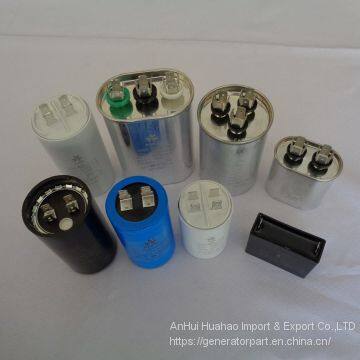

CBB60 CBB61 CBB65 CD60 Motor Run and Start Air Compressor Conditioner Refrigerator Capacitor photo-3

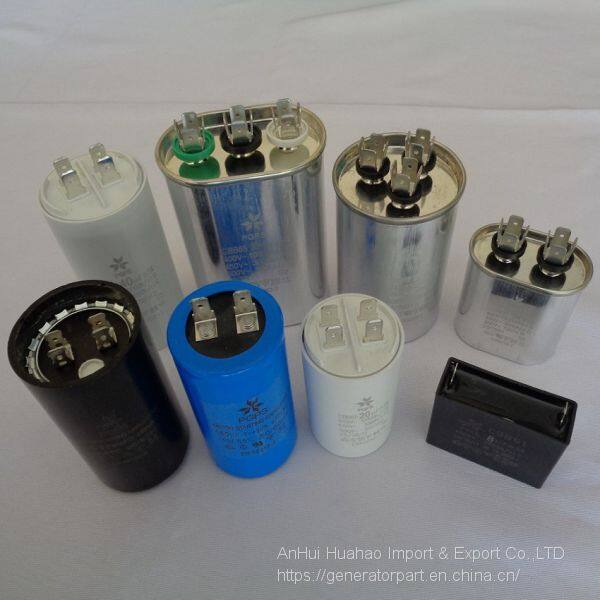

CBB60 CBB61 CBB65 CD60 Motor Run and Start Air Compressor Conditioner Refrigerator Capacitor photo-4
US$ 0.2 - 3 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
PGPS
Place of Origin:
China
Model Number:
CD60 CBB61 CBB60 CBB65
Contact Supplier Request Quote Chat Now
Anhui Huahao Import & Export Co.,LTD
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name PGPS
Place of Origin China
Model Number CD60 CBB61 CBB60 CBB65
Type Polypropylene Film Capacitor
Application AC / Motor
Rated Voltage 450V
Operating Temperature 0-85
Package Type Surface Mount
Capacitance 0-100uf

Work Shop Show

CBB60 Motor Run Capacitor
Features and use:
It is small in bulk, has long life-span and good self-healing Characteristic. It is widely used as the start-up and running capacitor that is special for micro water pump, cleaning machine, washing machine, and single-phase water pump motor.
Technical Specifications

Ambient Temperature -40 to 70  o C
Rated Voltage 250 to 500 VAC
Test Voltage T-T: 1.5 x Un
T-C: 2000 VAC
Capacitance Tolerance +/- 5%;  +/-10%
Insulation Resistance T-T: > 3000 MW-mF
T-C: > 1000 MW
Dissipation Factor Tan ≤ 0.004 (50 Hz)
Reference standard EN 60252

Alternate design include the followings:
Flat bottom-metal fixing stud M8×12
Fasten terminals 0.8×6.35 simple or double
Standard distance p=13.2mm±0.5
Unipolar cable-bipolar cable
Discharge resistance-plastic cover
Dimensions:

Capacitance
μF		 450VAC 250VAC
D(mm) H(mm) D(mm) H(mm)
1 25 57 25 57
3 25 57 25 57
5 30 70 25 57
8 35 60 35 60
10 35 70 35 60
12 35 70 35 60
15 35 70 35 70
18 40 70 35 70
20 40 70 35 70
25 40 80 35 70
30 45 92 40 70
35 45 92 40 70
40 45 92 40 70
45 45 92 40 70
50 50 92 45 92
55 50 100 45 92
60 50 116 45 92
70 50 116 45 92
80 60 120 50 100
90 60 120 50 100
100 60 120 50 116

CD60 Motor Start Capacitor
Aluminum Electrolytic Capacitor
Features and use:
It can be used in the startup of single-phase Ac motors (50Hz or 60Hz) to gain greater angular force under lower stating current. It is characterized by its exce-llent electric property, stable and dependable quality.
Technical Specifications

Working Temperature Range -40~+65ºC
Rated Voltage Range 110~330VAC
Rated Capacitance Range 21-1536Uf
Dissipation Factor Tan ≤ 0.01 (50 Hz)
Rated Tolerance of capacitance 30%
Without Voltage Between Terminal Apply 1.25 times working voltage, for 2
Seconds,with out break down or explosion
Withstand Voltage Between Terminal and case 2000Vac ,for 10 seconds,without break down or explosion

Dimension:


Capacitance
μF 		Rated Voltage
110-165Vac 		Rated Voltage
220-250Vac 		Rated Voltage
300-330Vac
21-25 36×70 36×70 36×85
25-30 36×70 36×70 36×85
30-36 36×70 36×70 36×85
36-43 36×70 36×85 36×85
43-52 36×70 36×85 36×85
47-56 36×70 36×85 36×85
53-64 36×70 36×85 46×85
64-77 36×70 36×85 46×85
72-86 36×70 36×85 46×85
88-108 36×70 46×85 46×111
108-130 36×70 46×85 46×111
124-149 36×70 46×85 46×111
130-156 36×70 46×85 46×111
145-174 36×70 46×111 52×111
161-193 36×70 46×111 52×111
189-227 36×85 46×111 52×111
216-259 36×85 46×111 52×111
223-280 36×85 46×111 52×111
243-292 36×85 46×111 52×111
270-324 36×85 52×111 52×111
324-389 36×85 52×111 52×111
340-408 46×85 52×111 52×111
378-454 46×85 52×111 52×111
400-480 46×85 52×111 52×111
430-515 46×85 52×111 52×111
460-552 46×85 52×111 52×111
540-648 46×111 52×111 52×111
890-708 46×111 65×111 65×111
645-774 46×111 65×111 65×111
708-850 46×111 65×111 65×111
720-850 46×111 65×111 65×111
720-865 46×111 65×111 65×111
800-960 46×111 65×111 65×111
815-978 46×111 65×111 65×111
829-995 46×111 65×111 65×111

CBB65 Air Conditioner Capacitor
Features and use:
The product is equipped inside with reliable explosion-proof equipment and is highly safe. With its good self-healing characteristic and long life-span, it is widely used for air-conditioners, refrigerators,generators,illuminating lamps, etc.
Technical Specifications

Working Temperature Range climate types: 40/85/21
Rated Voltage Range 250-450VAC
Rated Capacitance Range 3-100uF
Dissipation Factor Tan ≤0.002 (50Hz)
Rated Tolerance of capacitance 5% 10%
Testing Voltage between leading-out ends: 1.75UR  10S no break down
Insulation resistance between leading-out ends: 3000


Dimension:


Capacitance
μF 		Round Type Oval Type
D(mm) H(mm) L(mm) B(mm) H(mm)
5 42 60 52 32 60
7.5 42 60 52 32 60
10 42 70 52 32 8
12.5 42 70 52 32 60
15 42 80 52 32 60
20 45 80 71 45 80
25 45 90 71 45 80
30 50 100 71 45 90
35 50 100 71 45 90
40 50 110 71 45 90
45 50 110 71 45 90
50 50 110 71 45 90
55 55 130 71 45 110
60 55 130 71 45 110
70 60 120 71 45 110
80 60 120 71 45 130


note:
Special specs are available on request
