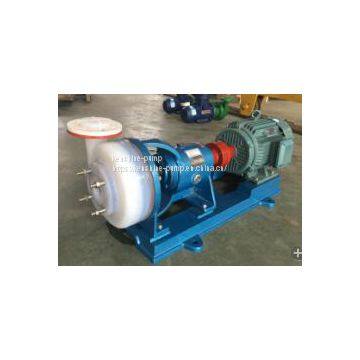

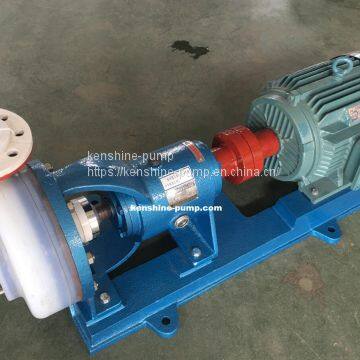

FSB Fluoroplastic alloy centrifugal chemical transfer pump
FSB-L, FSB-D fluoroplastic alloy centrifugal pump can be used to convey any concentration of all kinds of acid, alkali, salt and other corrosive medium, strong oxidizer etc. at the temperature 20℃ to 100℃. Pump shell and flow parts are all made of F46 fluorine alloy with strong corrosion resistance, high mechanical strength, not aging, no toxin, no decomposition.
Features:
Pump can work continuously and has compact structure, reliable performance, convenient operation and maintenance, high efficiency, energy saving.
Application:
FSB fluoroplastic chemical pump is suitable for transporting corrosive liquid in petroleum, chemical, pharmaceutical, pesticide, pickling, dyestuff, paint, smelting, papermaking, electroplating, food and so on.
shaft seal
The pump adopts the advanced external PTFE bellows mechanical seal, with multi-layer protection, to extend the service life of the machine seal. When conveying medium containing impurity particles, pump can be matched with no cooling water single end face hard to hard (silicon carbide to silicon carbide) mechanical seal, so the user needs to consider the solid content in the medium.
Performance range:
FSB-L fluoroplastic chemical pump is with shaft coupling and FSB-D pump is for closed coupling.
Flow:3 to 200m3/h
Head:10 to 80m
Pump material: F46/PVDF/FEP
Standard motor or Ex-proof motor
380V-415V,50HZ,3Phase, 440-460v, 60HZ, 3Phase
Model Meaning:
FSB50-30D/L
FSB means fluoroplastic chemical pump
50 means pump inlet (50mm)
30 means delivery head (30m)
D means closed coupling
L means shaft coupling type
| Model | Flow (m3/h) | Head (m) | Caliber(mm) | Power(KW) | Speed | NPSH | Efficiency | ||
| inlet | outlet | Shaft | Motor | rpm | m | % | |||
| FSB-L pump with shaft coupling | |||||||||
| 25FSB-10 | 3.6 | 10 | 25 | 25 | 0.69 | 1.5 | 2900 | 3 | 35 |
| 25FSB-20 | 3.6 | 20 | 25 | 25 | 0.97 | 1.5 | 2900 | 3 | 35 |
| 25FSB-25 | 3.6 | 25 | 25 | 25 | 1.25 | 1.5 | 2900 | 3 | 35 |
| 40FSB-15 | 5 | 15 | 40 | 32 | 0.51 | 3 | 2900 | 3 | 40 |
| 40FSB-20 | 10 | 20 | 40 | 32 | 1.16 | 3 | 2900 | 3 | 42 |
| 40FSB-30 | 10 | 30 | 40 | 32 | 1.18 | 3 | 2900 | 3 | 52 |
| 40FSB-40 | 6.3 | 40 | 40 | 25 | 3.1 | 4 | 2900 | 3 | 40 |
| 40FSB-50 | 6.3 | 50 | 40 | 25 | 3.55 | 4 | 2900 | 3 | 52 |
| 40FSB-80 | 6.3 | 80 | 40 | 25 | 7.11 | 7.5 | 2900 | 3 | 52 |
| 50FSB-20 | 12.5 | 20 | 50 | 32 | 1.49 | 3 | 2900 | 3.5 | 55 |
| 50FSB-25 | 12.5 | 25 | 50 | 32 | 1.86 | 3 | 2900 | 3.5 | 55 |
| 50FSB-30 | 15 | 30 | 50 | 32 | 1.9 | 3 | 2900 | 3.5 | 54 |
| 50FSB-40 | 12.5 | 40 | 50 | 32 | 4.3 | 7.5 | 2900 | 3 | 39 |
| 50FSB-50 | 12.5 | 50 | 50 | 32 | 5.8 | 7.5 | 2900 | 3 | 39 |
| 65FSB-32 | 25 | 32 | 65 | 50 | 4.8 | 5.5 | 2900 | 2 | 45 |
| 65FSB-40 | 25 | 40 | 65 | 40 | 7.2 | 11 | 2900 | 3 | 52 |
| 65FSB-50 | 25 | 50 | 65 | 40 | 8.6 | 11 | 2900 | 3.5 | 52 |
| 65FSB-80 | 25 | 80 | 65 | 40 | 14.1 | 18.5 | 2900 | 4.5 | 50 |
| 80FSB-20 | 50 | 20 | 80 | 65 | 4.7 | 5.5 | 2900 | 3 | 45 |
| 80FSB-25 | 50 | 25 | 80 | 65 | 5.7 | 7.5 | 2900 | 3 | 50 |
| 80FSB-30 | 50 | 30 | 80 | 65 | 6.9 | 7.5 | 2900 | 3.5 | 59 |
| 80FSB-40 | 50 | 40 | 80 | 50 | 10.2 | 11 | 2900 | 3.5 | 48 |
| 80FSB-50 | 50 | 50 | 80 | 50 | 11.9 | 15 | 2900 | 3.5 | 57 |
| 80FSB-55 | 50 | 55 | 80 | 50 | 13.5 | 18.5 | 2900 | 4 | 50 |
| 80FSB-80 | 50 | 80 | 80 | 50 | 24.6 | 30 | 2900 | 4 | 66 |
| 100FSB-20 | 100 | 20 | 100 | 80 | 8.6 | 11 | 2900 | 3.5 | 68 |
| 100FSB-32 | 100 | 32 | 100 | 80 | 11.9 | 15 | 2900 | 3.5 | 68 |
| 100FSB-40 | 100 | 40 | 100 | 65 | 21.3 | 30 | 2900 | 4.5 | 73 |
| 100FSB-50 | 100 | 50 | 100 | 65 | 23.9 | 30 | 2900 | 4.5 | 73 |
| 125FSB-32 | 160 | 32 | 125 | 80 | 24.15 | 30 | 2900 | 5 | 70 |
| 125FSB-50 | 200 | 50 | 125 | 100 | 39.2 | 55 | 2900 | 5 | 65 |
| 150FSB-32 | 150 | 32 | 200 | 125 | 35.3 | 45 | 1450 | 5 | 60 |
| FSB-D pump with closed coupling | |||||||||
| 40FSB-15(D) | 5 | 15 | 40 | 32 | 0.51 | 3 | 2900 | 3 | 40 |
| 40FSB-20(D) | 10 | 20 | 40 | 32 | 1.16 | 3 | 2900 | 3 | 42 |
| 40FSB-30(D) | 10 | 30 | 40 | 32 | 1.18 | 3 | 2900 | 3 | 52 |
| 50FSB-20(D) | 12.5 | 20 | 50 | 32 | 1.49 | 3 | 2900 | 3.5 | 55 |
| 50FSB-25(D) | 12.5 | 25 | 50 | 32 | 1.86 | 3 | 2900 | 3.5 | 55 |
| 50FSB-30(D) | 15 | 30 | 50 | 32 | 1.9 | 3 | 2900 | 3.5 | 54 |
| 65FSB-32(D) | 25 | 32 | 65 | 50 | 3.61 | 5.5 | 2900 | 3.5 | 65 |
| 80FSB-25(D) | 42 | 25 | 80 | 65 | 3.8 | 7.5 | 2900 | 3.5 | 67 |
| 80FSB-30(D) | 50 | 30 | 80 | 65 | 6.82 | 7.5 | 2900 | 3.5 | 68 |
