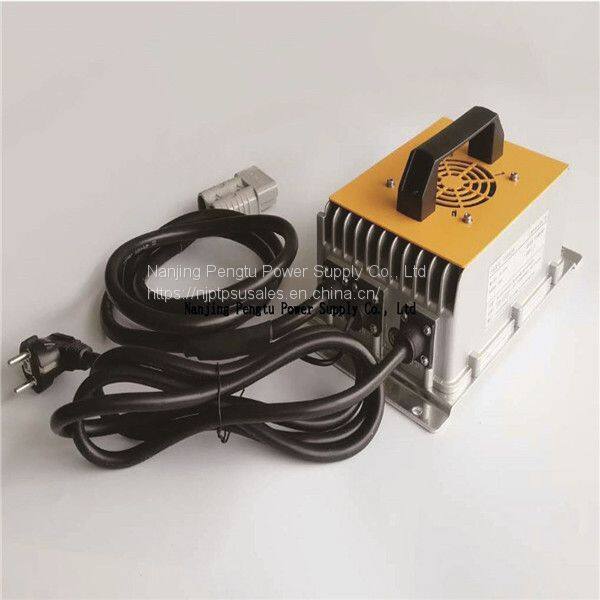

2000W 48V Portable car battery charger

Product introduction and application areas

2000W 48V Portable car battery charger.The chargers are designed with integrated die-casting structure. They are suitable for flooded lead-acid batteries, sealed (colloidal) lead-acid batteries, lithium batteries, nickel-metal hydride batteries, nickel-cadmium batteries, etc. They can be used to cycling charge and floating charge the battery in electric car, electric motorcycle, sightseeing car, patrol car, forklift, communication, electric power, ship,etc.

Technical parameters

. Ac input voltage range: 180-260VAC;45-65HZ

. AC max input current: 12A@220VAC

. Power factor: ≥0.98

. Noise: ≤55dB

. Protection grade: IP67

.Working temperature:-30℃~＋55℃

.Storage temperature:-40℃~＋95℃

Product specifications

.Dimensions:282*168*133mm

.Net weight:4.5kg

Optional advanced configuration

.Can be with CAN bus;

.Optional low pressure auxiliary 12v;

.Can be connected with three-color indicator light;

.Charging lock function(The vehicle power system can be locked through the relay during charging process);

.Can add CC, CP to meet the charging needs of various occasions;

.Optional national standard, European standard charging pile communication protocol.

Multiple protection

.Output over current protection        .Input over voltage protection

.Output over voltage protection        .Input under voltage protection

.Output short circuit protection        .Over temperature protection

.Output no-load protection              .Fully charge automatic shutdown

.Output reverse connection protection        .CAN failure protection

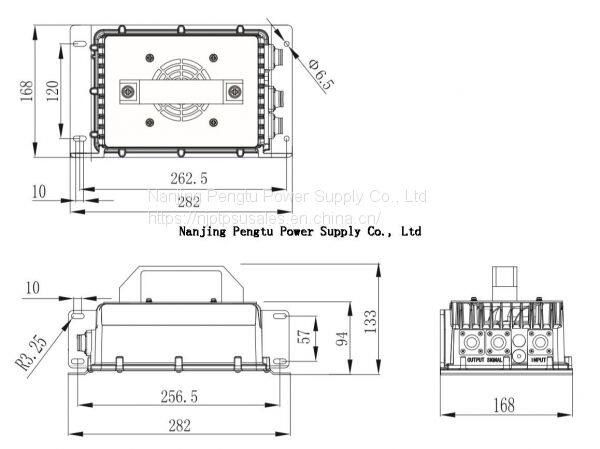

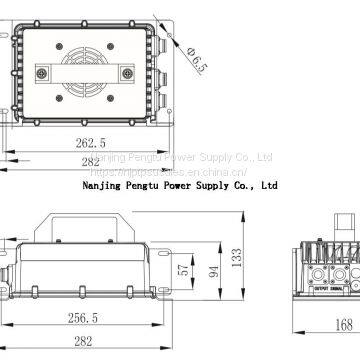

Mechanical Size&Model selection

Remark:Only typical models are listed. For other models, please determine the power, input voltage and output voltage and send an email to njptpowersales@163.com.
