Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > Cheap Silent Type 500kw Marine Diesel Generator
US$ 1,670 - 5,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
weichai
Place of Origin:
Shandong, China
Model Number:
20kw 30kw 40kw 50kw 60kw 80kw 100kw 150kw 200kw 250kw 300kw 350kw 400k
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin /Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality 20kw Silent Diesel GeneratorUS$ 1,670 - 5,000MOQ: 1 Set -
Deutz 120kw Diesel GeneratorUS$ 1,670 - 5,000MOQ: 1 Set
-
High Quality Weichai 750kva Silent Diesel GeneratorUS$ 1,900 - 2,000MOQ: 1 Set
-
High Quality Weichai Deutz 15kva Diesel GeneratorUS$ 1,900 - 2,000MOQ: 1 Set
-
4BT Engine Cheap Silent Type 30kw GeneratorUS$ 1,670 - 5,000MOQ: 1 Set
Brand Name
weichai
Place of Origin
Shandong, China
Model Number
20kw 30kw 40kw 50kw 60kw 80kw 100kw 150kw 200kw 250kw 300kw 350kw 400k
Rated Current
Depend
Speed
1500/1800rpm
Frequency
50/60HZ
Rated Voltage
400/230V
Product Description
| Technical parameters of diesel generator sets: | |
| Genset Technical data | |
| Genset Model | GF-22C TO GF-8700C |
| Prime Power | 10KW to 8700KW |
| Rated Voltage | 400/230V(voltage can be customized) |
| Frequency | 50/60Hz |
| Diesel generator type | open,silent,soundproof,trailer,container |
| Color | Customized |
| ATS | Optional |
| Controller | Deepsea/Smartgen |
| Warranty | 1year/1500hours |
| Certificate | ISO9001,CE,ISO14001 |
| Diesel Engine | |
| Brand | With Cummins Weichai Deutz Perkins SEDC Ricardo and so on |
| Rotating Speed | 1500/1800RPM |
| Speed Governor | Electrical /Mechanical |
| Cooling System/Type | Water-cooled/Naturally/Turbocharged Inter-cooling |
| Alternator | |
| Brand | Stamford/Leroy Somer/Marathon/Mecc Alte/Xingnuo... |
| Phase No.&Connecting Type | Three Phase and Four Lines 3P4W,Y Style Connection |
| Grading Protection | IP22 |
| Exciter Type | Brushless (AVR automatic voltage regulating) |
| Insulation Class | H degree |
| The components of the genset | |
| (1) Diesel Engine; (2)Alternator; (3) Control Panel (4) Accessories | |
The control panel is Quadruplication protection control panel, with the display of frequency table/water temperature/schedule/battery voltmeter. The genset with low oil pressure, high water temperature, over speed emergency, stop and other pre-protection. | |

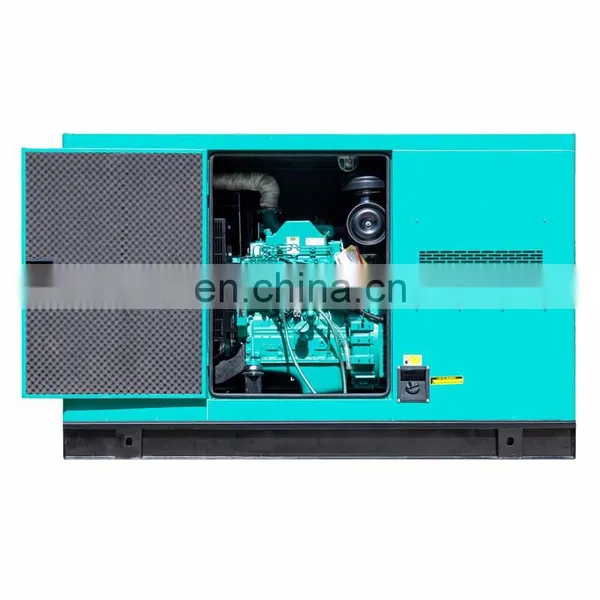

Open Silent Trailer Type
|
|
|
Product Sheetdata
More Details Information Please Contact Us
Diesel Engines for Wechai Shangchai (SDEC) Yuchai Deutz Ricardo Lovol Cumminss...and so on
Genset with cummins engine+Stamford Alternator(50Hz,1500Rpm)
| Genset Model | With Cummins engine model | Alternator Model | Gensets Power Standby Power | Gensets Power Rated Power | Engine Power | ||
| Engine | Stamford | kva | kw | kva | kw | Kw/Kva | |
| GF-22C | 4B3.9-G2 | PI144D | 22 | 18 | 20 | 16 | 24kw/30kva |
| GF-28C | 4B3.9-G2 | PI144E | 28 | 22 | 25 | 20 | 24kw/30kva |
| GF-30C | 4B3.9-G2 | PI144F | 30 | 24 | 27 | 22 | 24kw/30kva |
| GF-33C | 4BT3.9-G2 | PI144G | 33 | 26 | 30 | 24 | 36kw/40kva |
| GF-39C | 4BT3.9-G2 | PI144H | 39 | 31 | 35 | 28 | 36kw/40kva |
| GF-44C | 4BT3.9-G2 | PI144J | 44 | 35 | 40 | 32 | 36kw/40kva |
| GF-47C | 4BTA3.9-G2 | PI144K | 47 | 37 | 43 | 34 | 50kw/62.5kva |
| GF-55C | 4BTA3.9-G2 | UCI224D | 55 | 44 | 50 | 40 | 50kw/62.5kva |
| GF-62C | 4BTA3.9-G2 | UCI224E | 62 | 50 | 56 | 45 | 50kw/62.5kva |
| GF-80C | 6BT5.9-G2 | UCI224F | 80 | 64 | 73 | 58 | 87kw/109kva |
| GF-94C | 6BT5.9-G2 | UCI224G | 94 | 75 | 85 | 68 | 87kw/109kva |
| GF-103C | 6BT5.9-G2 | UCI274C | 103 | 83 | 94 | 75 | 87kw/109kva |
| GF-110C | 6BTA5.9-G2 | UCI274C | 110 | 88 | 100 | 80 | 110kw/135kva |
| GF-124C | 6BTA5.9-G2 | UCI274D | 124 | 99 | 113 | 90 | 110kw/135kva |
| GF-138C | 6BTAA5.9-G2 | UCI274E | 138 | 110 | 125 | 100 | 120kw/150kva |
| GF-154C | 6CTA8.3-G2 | UCI274E | 154 | 123 | 140 | 112 | 163kw/204kva |
| GF-176C | 6CTA8.3-G2 | UCI274F | 176 | 141 | 160 | 128 | 163kw/204kva |
| GF-200C | 6CTA8.3-G2 | UCI274G | 200 | 160 | 182 | 146 | 163kw/204kva |
| GF-220C | 6CTAA8.3-G2 | UCI274H | 220 | 176 | 200 | 160 | 200kw/250kva |
| GF-253C | 6LTAA8.9-G2 | UCDI274J | 253 | 202 | 230 | 184 | 235kw/294kva |
| GF-275C | 6LTAA8.9-G2 | UCDI274K | 275 | 220 | 250 | 200 | 220kw/240kva |
| GF-275C1 | NT855-GA | UCDI274K | 275 | 220 | 250 | 200 | 231kw/289kva |
| GF-313C | NTA855-G1A | HCI444D | 313 | 250 | 275 | 220 | 261kw/326kva |
| GF-330C | NTA855-G1B | HCI444D | 330 | 264 | 300 | 240 | 284kw/355kva |
| GF-344C | NTA855-G1B | HCI444ES | 344 | 275 | 313 | 250 | 284kw/355kva |
| GF-378C | NTA855-G2A | HCI444E | 378 | 303 | 344 | 275 | 313kw/391kva |
| GF-385C | NTA855-G4 | HCI444E | 385 | 308 | 350 | 280 | 317kw/391kva |
| GF-413C | NTA855-G7 | HCI444FS | 413 | 330 | 375 | 300 | 343kw429kva |
| GF-440C | NTA855-G7A | HCI444F | 440 | 352 | 400 | 320 | 360kw/450kva |
| GF-440C1 | KTA19-G2 | HCI444F | 440 | 352 | 400 | 320 | 336kw/420kva |
| GF-495C | KTA19-G3 | HCI 544C | 495 | 396 | 450 | 360 | 403kw/504kva |
| GF-550C | KTA19-G4 | HCI544D | 550 | 440 | 500 | 400 | 448kw/560kva |
| GF-578C | KTA19-G5 | HCI544E | 578 | 462 | 525 | 420 | 470kw/588kva |
| GF-649C | KTA19-G8 | HCI544E | 649 | 519 | 590 | 472 | 510kw/640kva |
| GF-633C | KTAA19-G6 | HCI544E | 633 | 506 | 575 | 460 | 520kw/650kva |
| GF-660C | KTAA19-G6A | HCI544E | 660 | 528 | 600 | 480 | 540kw/675kva |
| GF-688C | KTAA19-G6A | HCI544F | 688 | 550 | 625 | 500 | 540kw/675kva |
Genset Features
B and F series product
1. Original European Technology, Independent R and D.
2. Gen-sets Power Matching Coefficient.
3. Matched with Professional High-temperature Radiator.
4. Professional Application and Integration Capabilities.
5. Option Automation, Auto-switch, Auto-parallel Connection and other Functions Freely.
6. Key Components of The Controller, Circuit Breakers, Generators for the Domestic and International Famous
7.Strong power,high reliability
8.Diesel Engines for Wechai Shangchai (SDEC) Yuchai Deutz Cumminss
