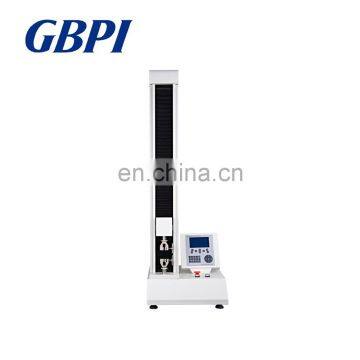

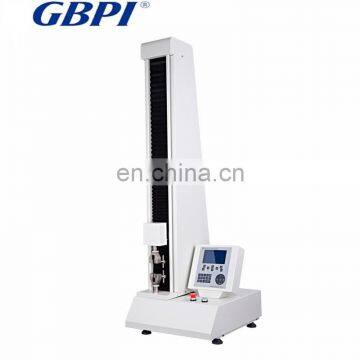

GBH-1 Electronic Tensile Strength Testing Machine
Electronic Tensile Strength Testing Machine
Standards:
ASTM D828-1997(2002) ,ASTM-D882-09,ASTM D1938-2006 ,ASTM D3330, ASTM F88-06 ,ASTM F904-08, JIS P8113-1998, GB/T8946-1998,GB 8808-1988 ,GB 13022-1991 ,YBB00112003,YBB00102003,YBB00132002.
Function:
To test the meaterial/product tensile strength, extensibility at break, peel force, peeling strength and heat-sealing strength,tear, punch, compressed, bending, shearing
Application:
* Films
Rigid films, shrik films, stretch films, plastic films, plastic composite films, paper-plastic composite films,aluminized films, aluminum foil, aluminum composite films, high barrier films and many others. Eg. PET, OPP, CPP, LDPE, BOPP
* Sheet
Engineering plastics, rubber, waterproof building materials, and thermal insulation materials, e.g. PP, PVC, PVDC, and nylon
*Packages
paper, plastics, rubber, paper, paper-plastic composite, glass, and metal packages, eg: bottles and containers.
Techinical Parameter:
Test range |
0~500N (0~3000N optional ), 1500% elongation |
Test accuracy |
within ±0.5% of the displayed value (grade 0.5) |
Test speed |
0-500mm/min (infinitely variable speeds) |
Displacement |
within ±0.5% of the displayed value |
Test width range |
30mm |
Travel distance range |
800mm |
Instrument size |
600×600×1300mm |
Power |
1000W |
Weight |
70kg |
Features:
1. Accurate test data, simple layout, use friendly;
2. Versatile test functions such as tensile, flexure, puncture, sealing, peeling etc
3. Measurement force range 0-500N is best value for flexible packaging materials test;
4. Automation save and print test reports;
5. Connecting computer to operate or without computer to test separately.
6. LCD screen on real time display, easily modify parameters;
7. adopts superior components;
8. Versatile operation languages support.
Factory View:
Certifications:
Our Customer:
Our Service:
1. One year guarantee and all lifetime techinical support
2. USA, Australia Aisa Local agent for service
3. Speedy reply, 12hrs response to customer questions
4. Software free update
5. Minor maintenance ---parts ship within 24 hrs
6. Major maintenance---Technical will be sent within 15 days
Our Lab:
Our Team:
Why Choose Us Contact Us?
1.We are the largest packaging test equipment manufacturer in China.
2. We are the only reference materail certificated supplier in the world.
3. Most of the provincial, municipal FDA using our testers in China.
