GHH Multifunctional Universal Tensile Tester for Peeling, Bonding, Sealing Puncture and Compression Test.

GHH Multifunctional Universal Tensile Tester for Peeling, Bonding, Sealing Puncture and Compression Test. thumbnail-1
GHH Multifunctional Universal Tensile Tester for Peeling, Bonding, Sealing Puncture and Compression Test. thumbnail-2
GHH Multifunctional Universal Tensile Tester for Peeling, Bonding, Sealing Puncture and Compression Test. photo-1
GHH Multifunctional Universal Tensile Tester for Peeling, Bonding, Sealing Puncture and Compression Test. photo-2
US$ 19,032 - 19,032 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
GBPI
Place of Origin:
Guangdong, China
Model Number:
GHH
Contact Supplier Request Quote Chat Now
Guangzhou Biaoji Packaging Equipment Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name GBPI
Place of Origin Guangdong, China
Model Number GHH
Power Electronic
Usage Strength Testing Machine
Product Description

Application.

The GHH Electronic Tensile Tester applicable in various kinds of metal and non-metallic materials, such as plastic film, non-woven fabrics, woven bags, packaged with the tensile, pe el, heat sealing, tear, puncture, compression, bending, shear test, as well as some product's special tests, can also achieve constant stress, constant strain test, to configure special device can complete the torsion test project. Automatically calculate tensile strength, bending strength, elongation at break, fixed elongation stress, modulus of elasticity, and other parameters according to GB, JIS, ASTM, DIN standard.

Features.

1. Flexible interface and controlling method, can do tests of stretching, peeling, heat-sealing, tearing, piercing, compression, bending, cutting, and so on. Can set variable parameters like speed, thickness, and fixture distance.

2. High precision measurement, the measurement accuracy can reach 0.5 grade.

3. The whole process is controlled by the computer; online display test result; can automatic data storage, data analysis and comparison functions; curve superimposed records; also with online printing function and scaling function.

4. Fully digitized controlling system together with imported AC servo system control displacement null shift.

5. Adopt high-precision ball screw, loading is stable and the tester has long life, and is chronically stable and energy saving.

6. Open data structure, user can invoke the result parameters or process data casually. Editable report, data can be easily exported to Excel to facilitate post-processing.

7.  Controlling unit can choose built-in one (looks simple and saves space) and external one (easy to upgrade, maintain, and offline operate).

8. With thorough position limitation protection, overload protection, scram and other security functions. Make the test safe reliable.

9. High sampling speed (100 times/s) makes the result more accurate.

10. Core parts are imported, more precise and more durable.

11. Pneumatic clips are optional; suitable for many kinds of clips.

Test force range
0~500N (0~3000N optional ), 1500% elongation
Test accuracy
within ±0.5% of the displayed value (grade 0.5)
Test speed
0-500mm/min (infinitely variable speeds)
Displacement
within ±0.5% of the displayed value
Test width range
30mm
Travel distance range
600mm
Instrument size
750×400×1000mm
Power
1000W
Power supply
AC 220V 50Hz
Weight
85kg

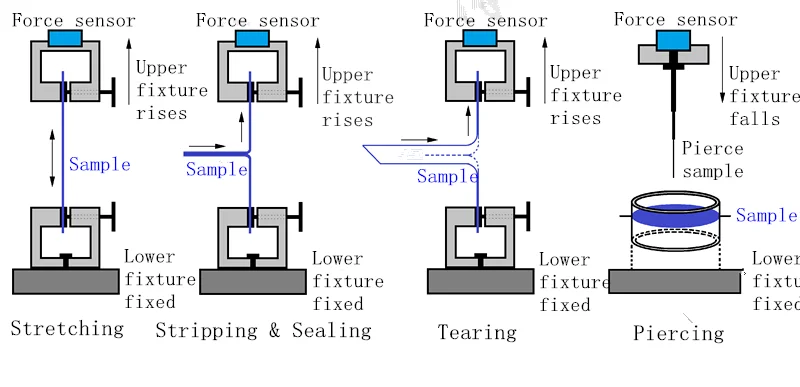

Working principle

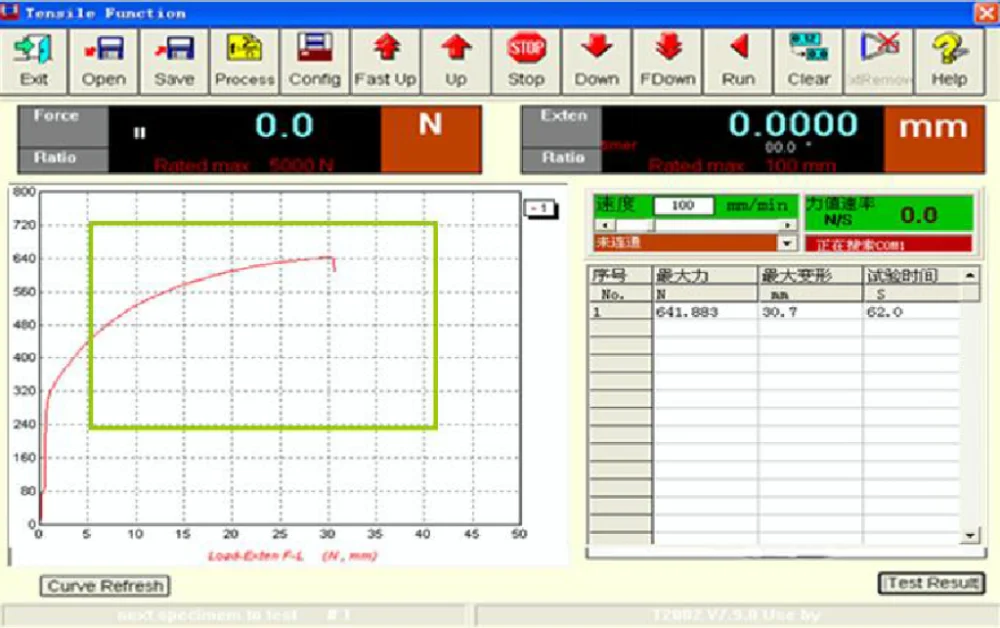

Software Interface

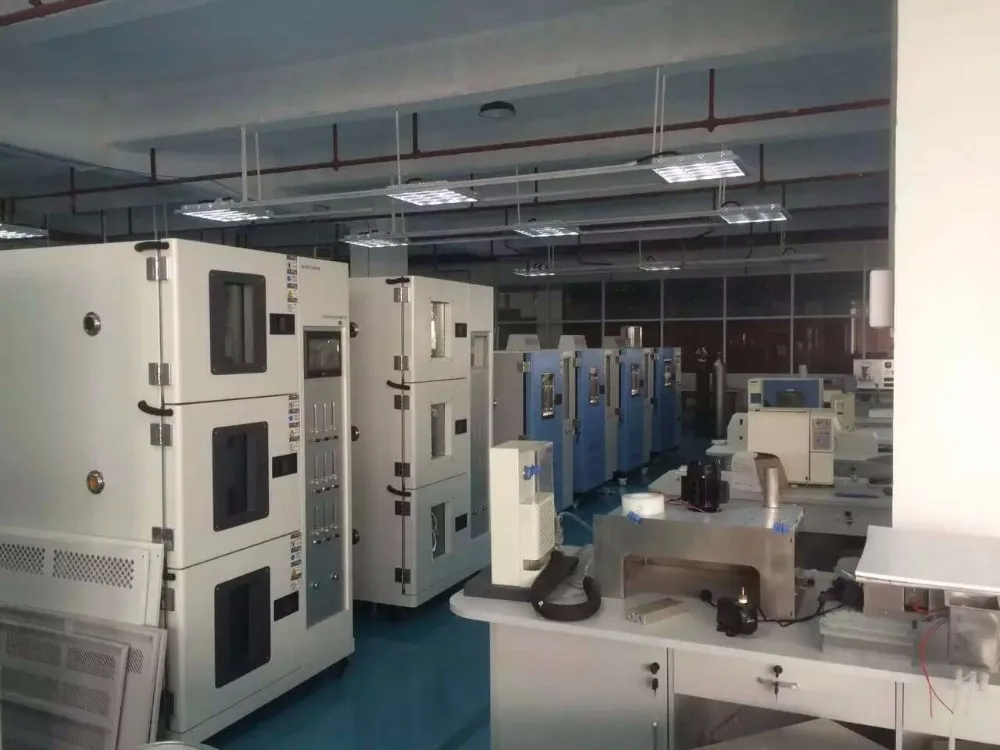

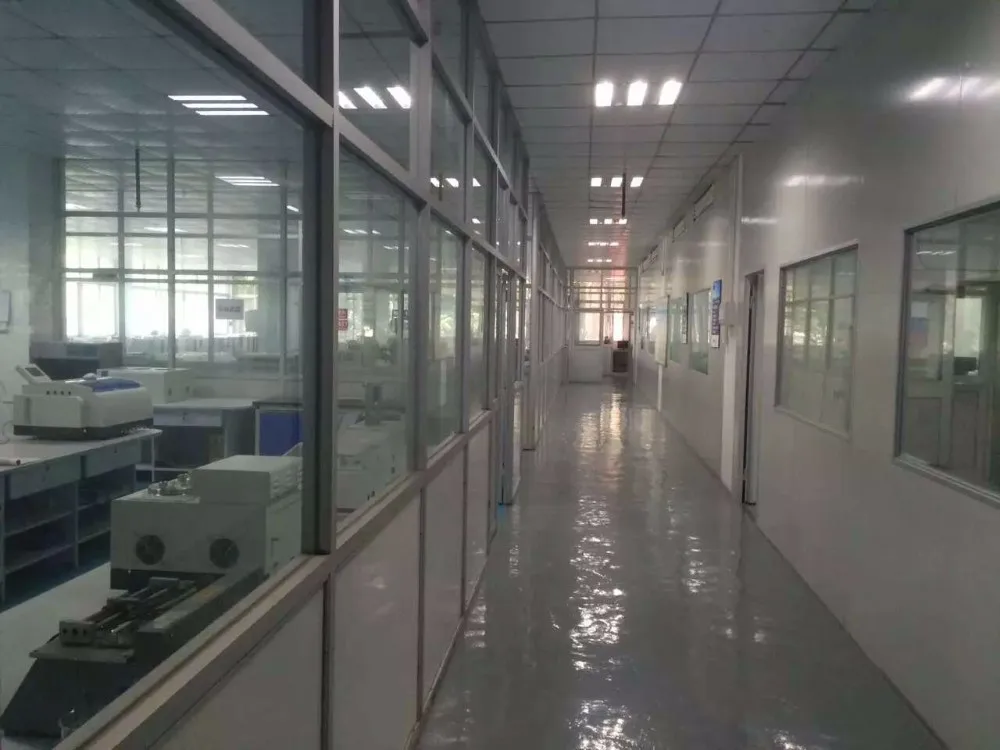

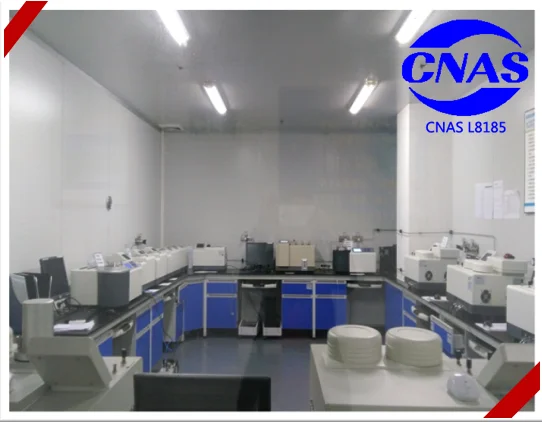

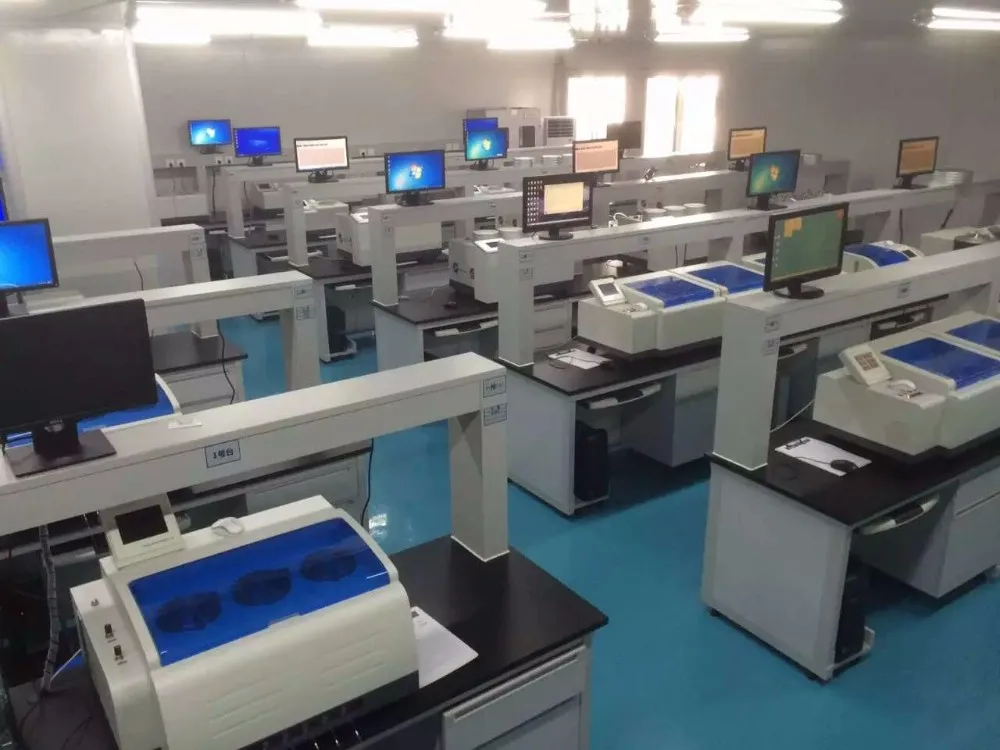

Our Company

About Us.

Guangzhou Biaoji Packaging Equipment Co, Ltd (GBPI) founded in 2002 is engaged in research, development and production of packaging machinery and test instrument for packaging material. We are ISO9001 certified and recognized by national authority as hi-tech enterprise, software enterprise, measuring instrument manufacturer, and standard substance
research unit. After many years' development, we are already one of the most professional quality control test instrument suppliers in packaging industry of the world, our product and technology at the internationally leading level.
"Quality is our life, service is our mission" is our core values. Guided by the need of customer and market, we spare no effort to provide our customer with precision, quality and durable instrument and equipment, and attentive and satisfactory service.

Welcome to visit our company!

Add: No.1 Minghua 3 Street, Jinxiu Road, Economic Development Zone, Guangzhou, China
Fax: +86-20-82087405   Tel: 0086-20-8615 3742

Web: /en/index.html
