Heat Sealing Pressure Testing Machine for Packaging
Heat seal property is the most important property of the plastic packaging film.GBB-A Heat seal tester can measure the temperature range,intensity,suitable speed,preesure and so on of the heat sealing of plastic film based material,flexible packaging composite membrane,coating paper,aluminum foil and other kinds of heat-sealing compound precisely.
To test package heating tempeature range, heating seal strength , heat sealing speed and pressure tec.
ASTM F 2029-2000
QB/T 2358-1998
YBB 00122003
-
Films
rigid films, shrik films, stretch films, plastic films, plastic composite films, paper-plastic composite films,aluminized films, aluminum foil, aluminum composite films, high barrier films and many others. Eg. PET, OPP, CPP, LDPE, BOPP
- Sheet
engineering plastics, rubber, waterproof building materials, and thermal insulation materials, e.g. PP, PVC, PVDC, and nylon
- Packages
paper, plastics, rubber,paper-plastic composite, glass, and metal packages, eg: bottles, containers
1.Dual-temperature, dual control, dual display;
2.An external cylinder,printer inside, use friendly;
3.Superior components imported brands configurations;
4.Elegant appearance, accurate test data;
5.Excellent performance of the start sealing temperature, sealing speed, heat sealing strength;
6.Versatile languages support.

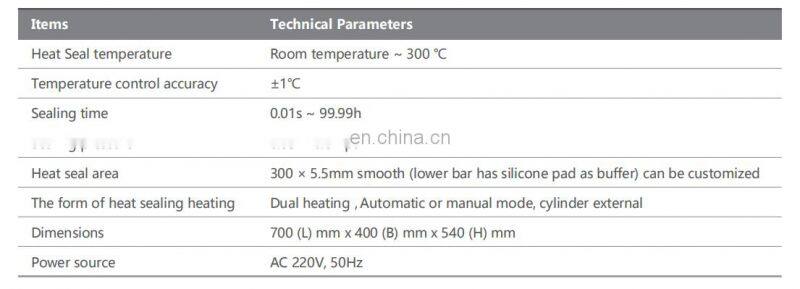

item |
GBB-H |
GBB-A |
GBB-F |
Heat sealing temperature |
20~200°C |
20~300°C |
20~300°C |
Temp control precision |
0.1°C |
1°C |
1°C |
Heat sealing time |
0.01s~99.99h |
||
Heat-sealing pressure |
0.05~0.8Mpa |
0~0.8Mpa |
0~0.8Mp. |
Compressed air |
|
8kg/cm2 |
8kg/cm2 |
Heating cover |
48x10mm smooth |
300mm×5.5mm smooth |
45×10mm smooth x 5pcs |
Heating mold |
Dual heating |
||
Power supply |
220V, 50HZ |
||
1. One year guarantee and all lifetime techinical support
2. USA, Australia Aisa Local agent for service
3. Speedy reply, 12hrs response to customer questions
4. Software free update
5. Minor maintenance ---parts ship within 24 hrs
6. Major maintenance---Technical will be sent within 15 days
About GBPI
GBPI is a professional manufacturer focused on developing
and producing packaging material test instruments. Founded in 2002, the company has received IOS9001 certification and reco gnized as high-tech enterprise and software enterprise by national authority. We hold numerous technology patents and software certificates from the national authority, and gained awards for technological progress.
