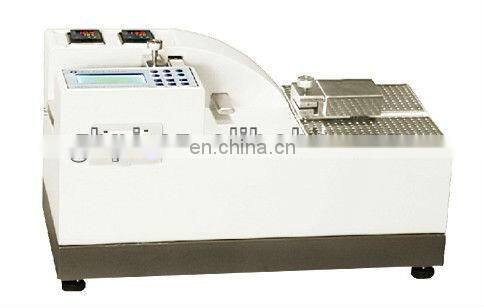

Hot Tack Tester
Standards:
ASTM F1921,ASTM F2029,QB/T 2358(ZBY 28004),YBB 00122003
Function & usage:
GBR type Hot tack tester is applicable in hot tack property test for flexible and semi-rigid packaging materials or pipe materials.
Techinical Parameter
Model |
GBR |
Temperature range: |
room temperature~250ºC |
Temp. control accuracy |
±0.2ºC |
Dwell pressure: |
0.04MPa~0.8MPa |
Hot sticking time |
0~99s |
Accuracy |
±1% of reading force |
Measuring range |
0-300 N |
Width of specimen: |
15mm or 25 mm or 25.4 mm (Optional) |
Length of specimen |
200 mm |
Power |
AC 220V 50Hz/60Hz |
Features:
1, The hot seal temperature, pressure and time can be set by users easily.
2, Temperature control system of digital P.I.D., with high accuracy.
3, Parallel heating surface, even temperature, good sealing efficiency.
4, International quality pressure control devices of higher accuracy.
5. Calibration with two method of weights and standard film;
6. Optional load cell range, easy to change and easy to broaden the test scope.
7. Test controlled by micro-computer, LED displays, with professional software.
Test principle
After sale Service:
l 2 years coverage
l Speedy reply, 12hrs response to customer questions
l Software free update
l Minor maintenance ---parts ship within 24 hrs
l Major maintenance---Technical will be sent within 15 days
l Free inhouse training for customer operator
