2018 High Speed Stand up Pouch Sealing Machine

2018 High Speed Stand up Pouch Sealing Machine thumbnail-1
2018 High Speed Stand up Pouch Sealing Machine thumbnail-2
2018 High Speed Stand up Pouch Sealing Machine photo-1
2018 High Speed Stand up Pouch Sealing Machine photo-2
US$ 100,000 - 200,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
GBPI
Place of Origin:
Guangdong, China
Model Number:
GF1600-B
Contact Supplier Request Quote Chat Now
Guangzhou Biaoji Packaging Equipment Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
huangpu
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name GBPI
Place of Origin Guangdong, China
Model Number GF1600-B
After-sales Service Provided Engineers available to service machinery overseas
Weight 2000KG
Dimension(L*W*H) 2100*2000*2000mm
Voltage 380V
Power 13KW
Application Beverage, Commodity, Food, Medical
Condition New
Automatic Grade Automatic
Driven Type Electric
Packaging Material Plastic
Packaging Type Pouch, Stand-up Pouch
Product Description

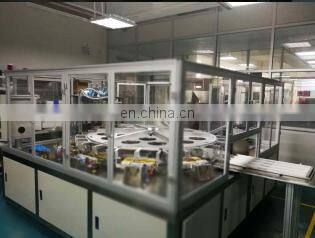

GF1600-B Spout Sealing Machine is specialized for inserting spouts and sealing bags fully automatically. It is applied to a variety of spouts and bags of different diameters and lengths, such as standing-up bags, 3-side sealing bags, and doypacks.

SPECIFICATIONS
Name
 High speed stand up pouch sealing machine
Bag types
self-stand bags, three-side sealing bags, doypacks, irregular bags and cubic bags
Spout standard
diameter 8.5mm or 10mm, customization is available
Bag width
medium tube 60-120mm, inclined tube 60~150mm
Bag length
medium tube 70~210mm, inclined tube 60~150mm
Processing speed
medium tube 90pcs/min (customized bag rack,three-side sealing bags and doypacks)

inclined tube 80pcs/min (irregular bags)
Main transmission structure
splitter (0 degree error)
Servo motor
special flange gear-down motor
Sealing method
heat sealing
Sealing blades
6 sets-- 1 set for cooling
Controlling method
PLC controlled
Temperature control
PID controlled, precision: 0.1 ℃
Sense method
photoelectric sensed
Cooling device
tube and water (current velocity: 0.5m/s)
Bag collecting quantity

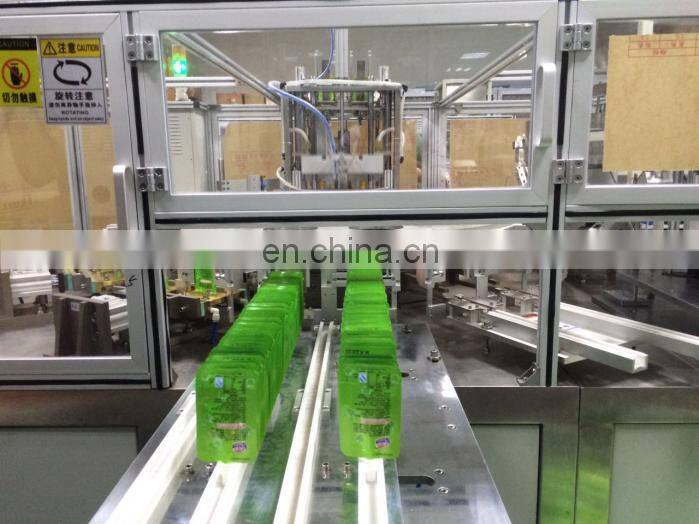

Dual-track collect bags, each track 40~50 pcs
Power
13KW
Electric source
380V, in three-phase four-wire system
Machine size
about 240cm(width) x 220cm(length) x 230cm(hight)
Weight
2000kg
Certifications
Main Structure

1.Fully automatic; a single set of machine needs only one operator, and the operator just needs to load enough spouts and bags at intervals.

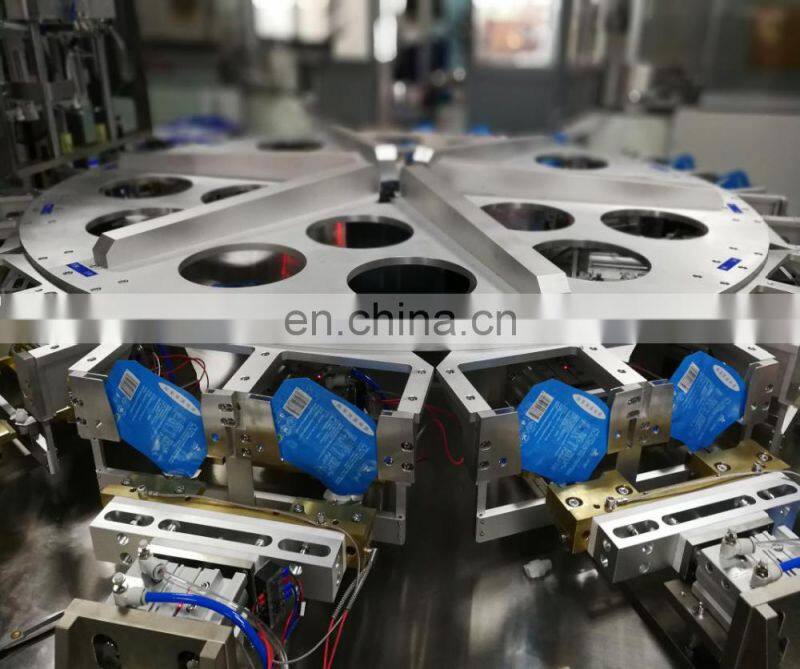

2.Adopting round disc structure, the equipment occupies small space.

3.All the components are made of aluminum and stainless steel, and meet the hygienic and quality requirements of food, pharmaceutical, environmental and industries.

4.Easy to use with precise control; runs stably and works long hours continuously.

5.Adopts imported temperature control module, SMC pneumatic component, Omron PLC control unit to insure the quality, performance, and life of the machine.

6.Automatically detects faults, gives alarms, stops, diagnoses and show where the fault is.

Factory and Lab
Our Team
Other Products

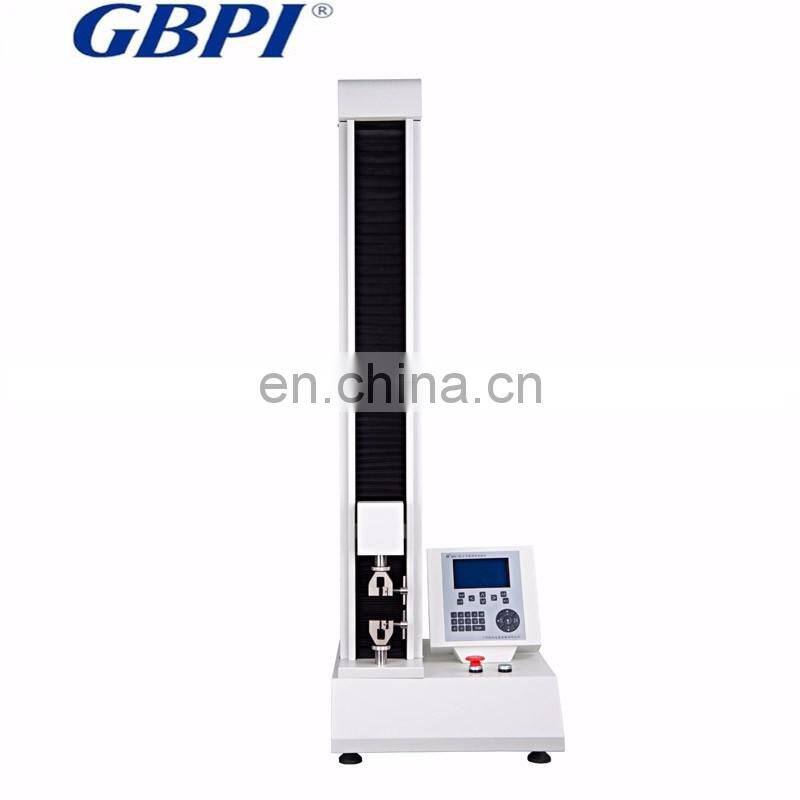

GBH-1 Tensile Tester

95%Response Rate

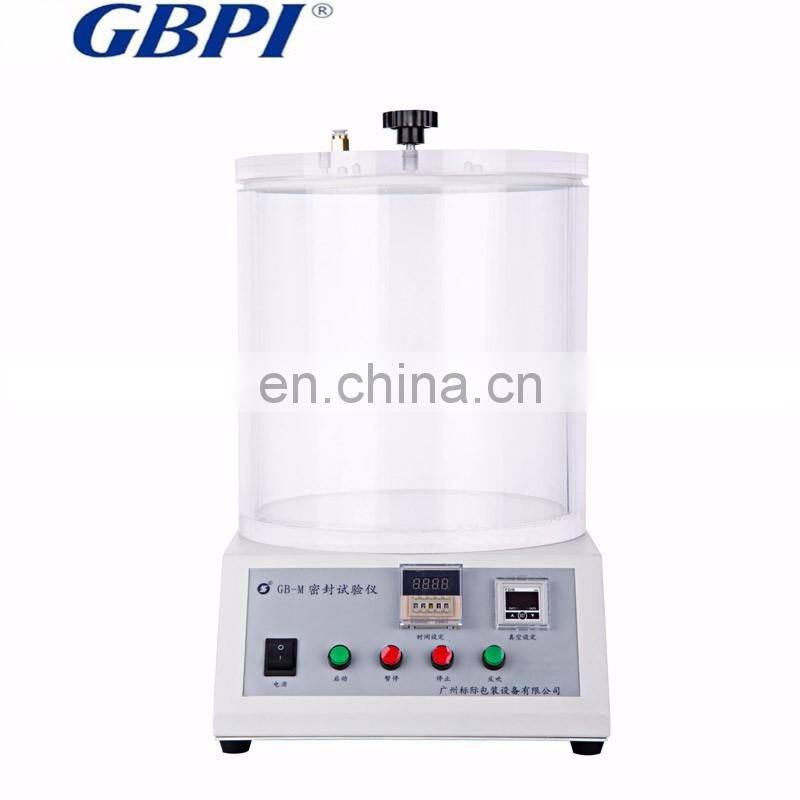

GB-M Leakage Tester

93.8% Response Rate

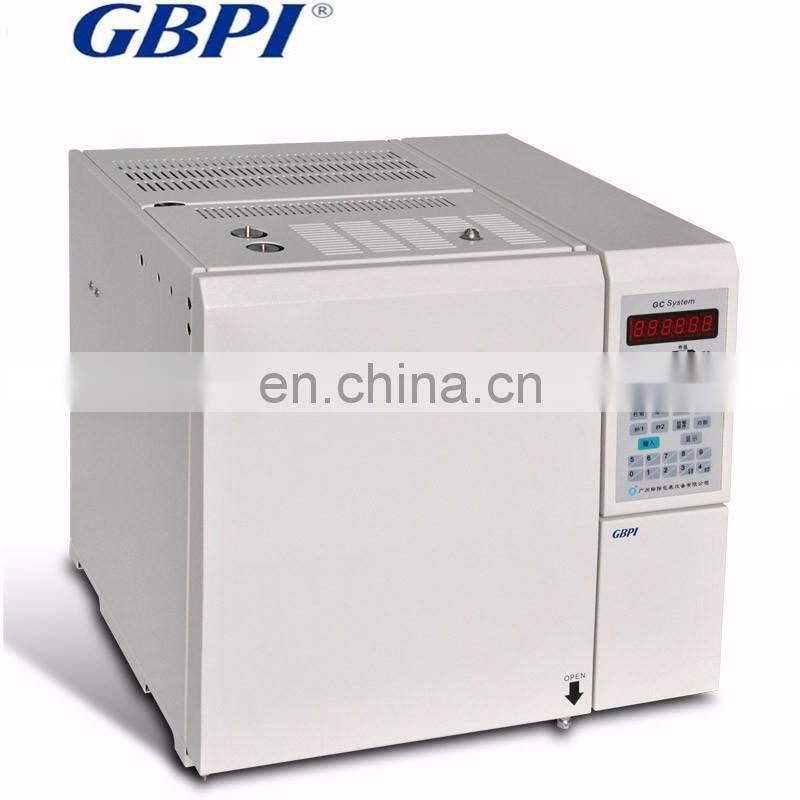

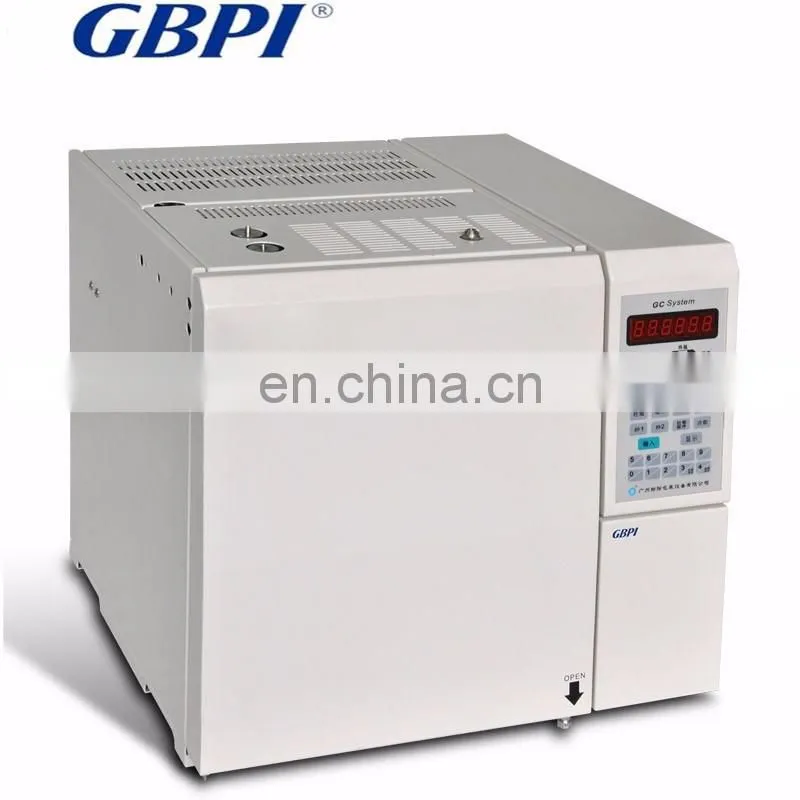

GC-9801 Gas Chromatography
