Home > Electrical & Electronics > Inverter > Power Inverter > PCN-3000W Series DC AC Inverter Sine Wave Inverter Supplier

PCN-3000W Series DC AC Inverter Sine Wave Inverter Supplier

PCN-3000W Series DC AC Inverter Sine Wave Inverter Supplier thumbnail-1
PCN-3000W Series DC AC Inverter Sine Wave Inverter Supplier thumbnail-2
PCN-3000W Series DC AC Inverter Sine Wave Inverter Supplier photo-1

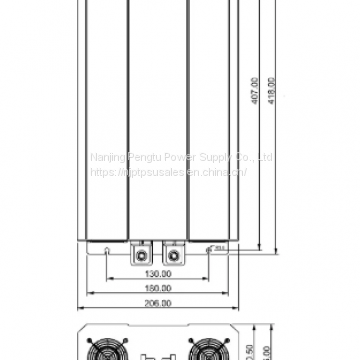

PCN-3000W Series DC AC Inverter Sine Wave Inverter Supplier photo-2
US$ 215 - 220 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Brand Name:
Pengtu
Place of Origin:
China
Model Number:
PCN-3000W
Contact Supplier Request Quote Chat Now
Nanjing Pengtu Power Supply Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Pengtu
Place of Origin China
Model Number PCN-3000W
Type DC/AC Inverters
Size 418*206*110mm
Weight 3KG±0.5kg
Output Power Other, 3000W
Output Type Multiple
Output Current 0.7A
Output Frequency 50Hz or 60Hz
Output Voltage 100vAC/110vAC/120vAC/220vAC/230vAC/240vAC
Input Voltage 12VDC/24VDC/48VDC

Product Description

Item

PN-3000W-12V

PN-3000W-24V

PN-3000W-48V

Output Power

3000W

Peak power

5000W

Input voltage range

DC12V(9.5-15.5V)

DC24V(19-31V)

DC48V(40-61V)

Output voltage (single choice)

(100vAC/110vAC/120vAC/220vAC/230vAC/240vAC)±5%

No-load current

≤0.7A

≤0.4A

≤0.3A

Output frequency

50Hz or 60Hz

Output waveform

Pure sine wave

Output waveform harmonic component

THD≤3%( Pure resistive load)

USB

Yes

Max output efficiency

>=90%

Undervoltage protection

Pre-warning for long time

Overvoltage protection

Buzzer warning for long time

Overload protection

5 times overload, shutdown

Over temperature protection

Warning for long time

Short circuit protection

Short circuit protection without breaking the circuit

Reverse protection

Yes, have no damage to the circuit

Undervoltage alarm range

10.5±0.5V

21±0.5V

42±1V

Undervoltage protection range

9.5±0.5V

19±0.5V

38±1V

Overvoltage protection range

15.5±0.5V

31±0.5V

61±1V

Undervoltage recovery range

13±0.5V

24±0.5V

48±1V

Overvoltage recovery range

14V±0.2V

28V±0.5V

54V±1V

Working temperature

-10°- +50°

Product size (mm)

418*206*110mm

Packing size (mm)

Outer box size (mm)

Net weight / gross weight (g)

Number / Box

FCL weight (g)

3000

Guarantee

12Months

Configuration

cooling method

Fan cooling




Note: The company's products are constantly updated, the technical parameters are for reference only, please refer to the actual product.


Product Tags: DC AC Inverter , 3000W Inverter , Sine Wave Inverter
