Specification
Commodity |
Tipper Trailer |
Inside dimension |
9000mm×2300mm×1700mm |
Rated volume |
35m³ |
Cargoes |
Coal,aggregates,gravel,sand |
Overall dimension |
9755mm×2500mm×3750mm |
Max.Payload |
50T |
Bottom thickness |
8mm |
Sides thickness |
5mm |
Cylinder |
196-5-7120（Whole set） |
Kingpin |
50mm 50mm Standard Bolt-on |
Thickness of upper wing plate |
14mm Q345 |
Thickness of lower wing plate |
16mm Q345 |
Web plate |
Height 480mm Thickness 8mm |
Axle |
FUWA 13T/ 3Pcs |
Tire |
TRIANGLE 12R22.5-18PR/12Ps |
Rim |
9.0-R22.5-t16/12Pcs |
Leaf spring |
10×13×90/ 6Pcs |
Landing gear |
JOST 25T E100 Single action |
Relay valve |
China made |
Chamber |
4double 2single |
Spare tire carrier |
1 Unit front-installed |
Tool box |
1 Unit side-installed |
Wheel cover |
Three-axle circular arc wheel cover(Iron material) |
Ladder |
One piece |
Lamps |
LED rear lamps,five side lights with iron netting protector |
Saddle height |
1350mm |
|
Front and rear gyration radius |
Front 2600mm , Rear 2200mm |
Others |
Standard |

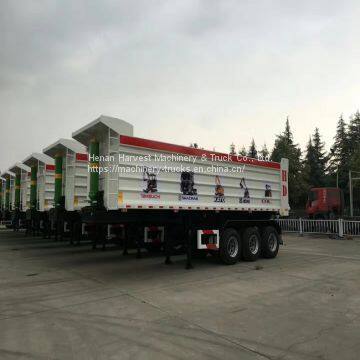

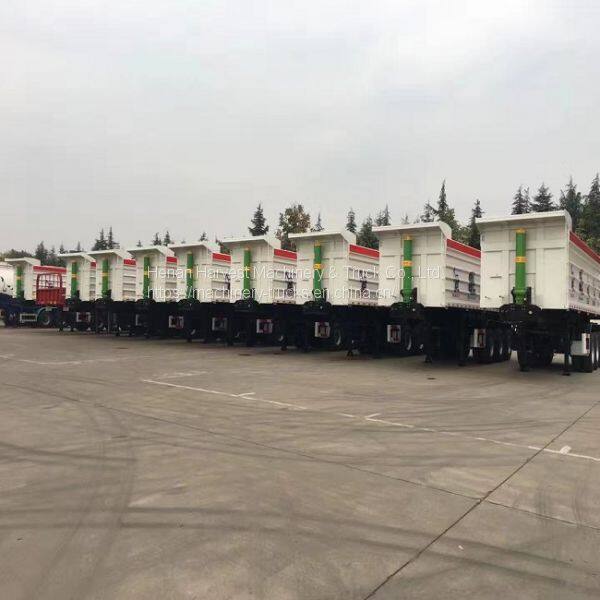

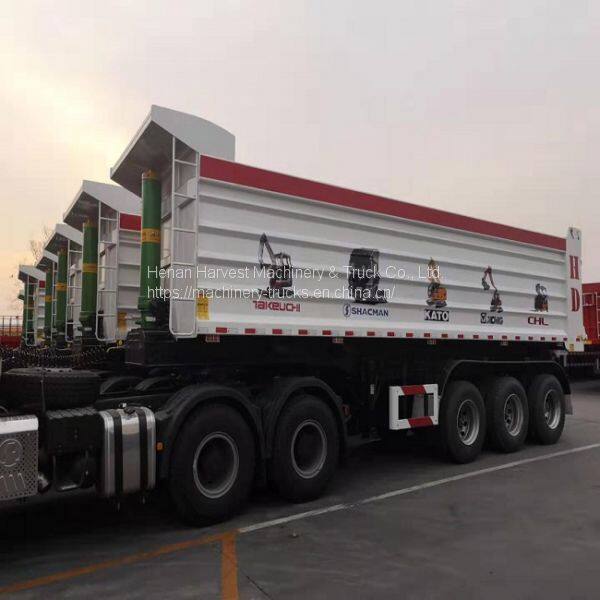

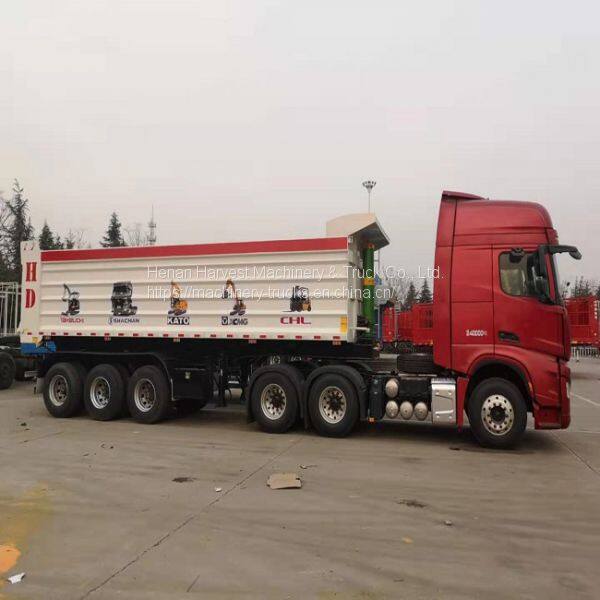

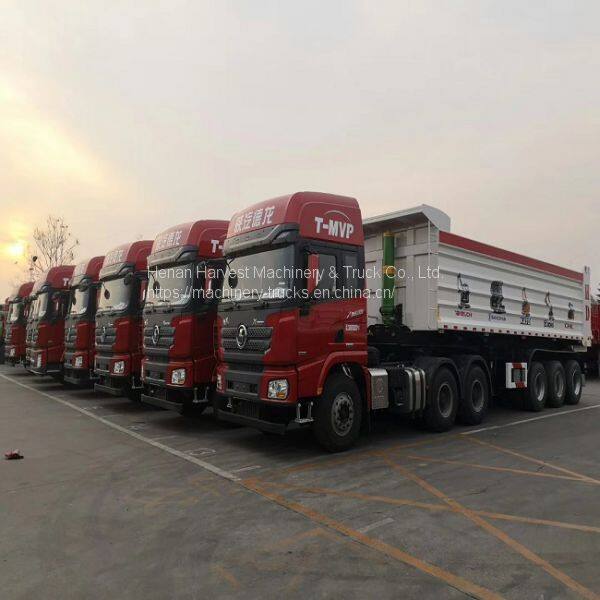

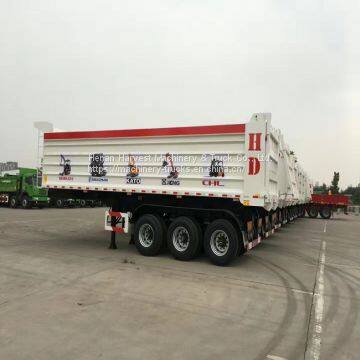

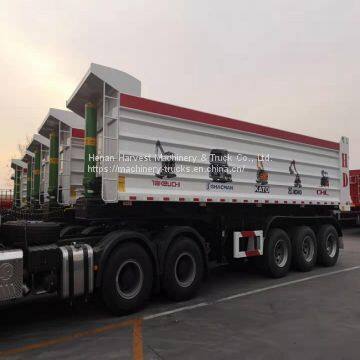

3 Axles 35cbm 50 Ton Dump Trailer for Philippines
We are manufacturer.
The trailer model we show is special for Phlippines market, all our trailers can be customized according to your unique request.
Dump semi trailer, solution for aggregate, breakstone, sand and grain transportation.
Characteristics :
> Stability-stable hydraulic lifting based on professional structure design.
> Durability-Q345 steel main beam with T700 high tensile dump box.
> Diversity-Different dump box's shapes (rectangle shape, U shape) for different cargo transporting, big stones, breakstone, sand, coal, grain and other bulk cargo.
Less Maintenance, Better Performance.

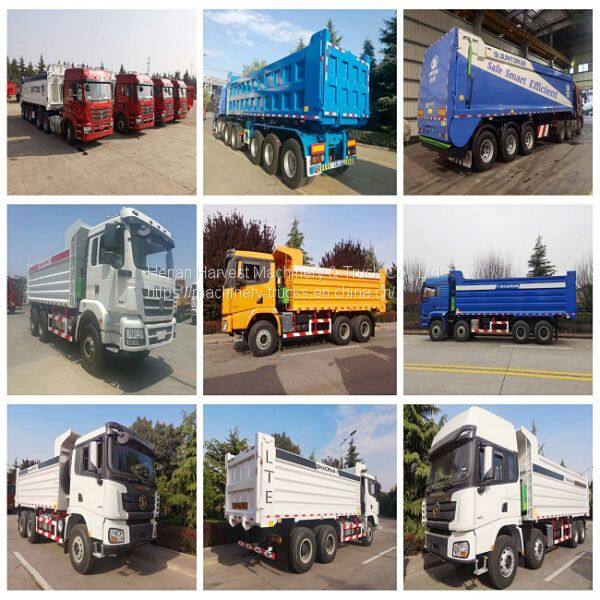

Our Other products
