Home > Products > Boom Truck Crane > Xcmg 35 Ton Hydraulic Crane XCT35 5-section Mobile Crane 2020 New Model XCMG CRANE

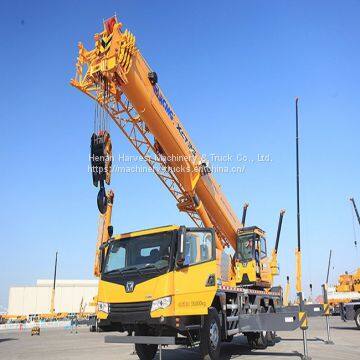

Xcmg 35 Ton Hydraulic Crane XCT35 5-section Mobile Crane 2020 New Model XCMG CRANE

Name: Xcmg 35 Ton Hydraulic Crane XCT35 5-section Mobile Crane 2020 New Model XCMG CRANE
Brand: XCMG
Availability: InStock

FOB Price

US$ 125000 - 135000 / Unit

1 Unit(Min. Order)

Port TIANJIN, SHANGHAI
Payment TermsT/T
Delivery Detail25 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	XCMG	Place of Origin	China
Model Number	XCT35	Certification	CE/ISO9001
After-sales Service Provided	Engineers available to service machinery overseas	Warranty	one year
Condition	New	Max. Lifting Load	35 ton
Span	7.6m	Max. Lifting Height	40.6m

Product Description

XCMG official 35ton hydraulic lift truck crane XCT35

XCT35 Truck crane is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.

Performance Characteristics:
* 5-section boom of 42 m with U-type profile is adopted; the max. lifting load is 35 t; the max. lifting height is 56.8 m; the max. working radius is 38.5 m; The performance takes the lead comprehensively.

* New energy-saving hydraulic system with high efficiency, durability and fine control (lifting: 2.5m/min, slewing: 0.1°/s)

* Optimal transmission system first created in the industry contributes to strong off-road performance and low oil consumption; the gradeability is 42%.

* Resulting in perfect combination of high power performance and low fuel consumption, i.e.12% reduction in fuel consumption for driving, 15% for operation, and 15% improvement in power performance.

* A new generation of appearance design makes the whole vehicle powerful and vigorous; Fashionable outlines of driver's cab and operator's cab bring perfect combination of sense of lays and sense of physical strength; ergonomics analysis and humanized details make inherent quality of easy driving comfortable operation and convenient maintenance.
Specification
Unit
XCT35
Span
m
7.6
Max.Lifting Height
m
40.6
Max.Lifting Load
t
35
Overall length
mm
13065
Overall width
mm
2750
Overall height
mm
3540
Total weight in travel
kg
35000
Engine Model

SC9DF300.2Q5
Engine rated power
rpm
221kW/1900
Engine rated torque
rpm
1400Nm/1400
Driving speed
km/h
3~90
Gradability

0.42
Min. turning diameter
m
22
Min. ground clearance
mm
260
Base boom
m
10.9
Max. main boom
m
42
