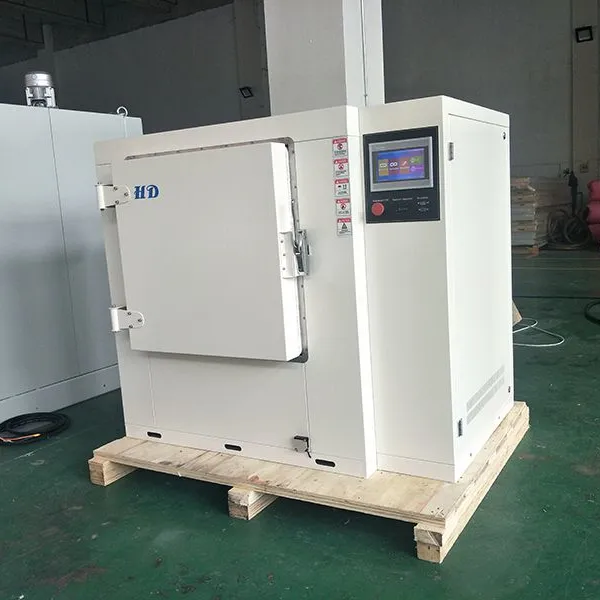

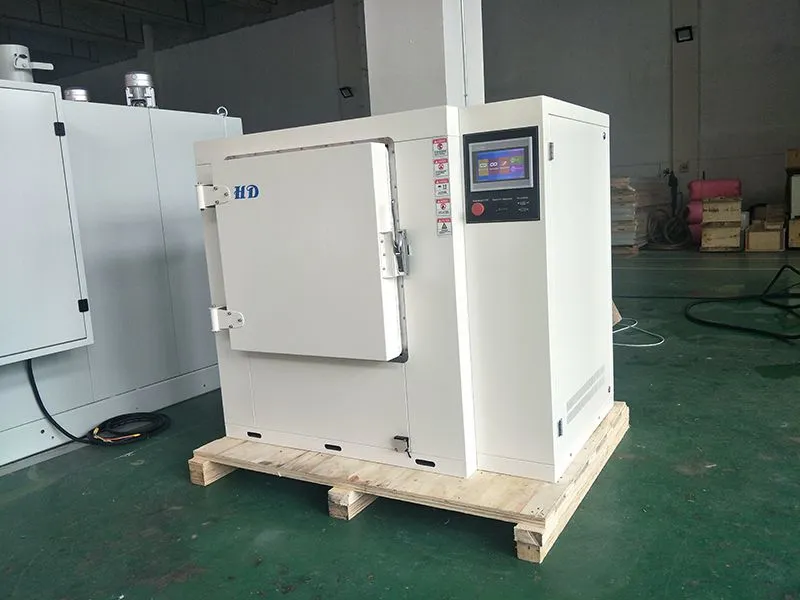

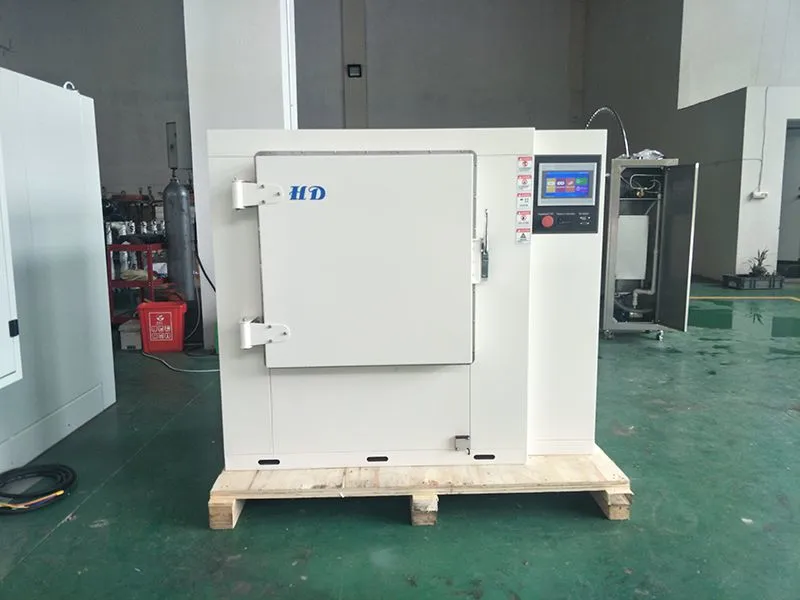

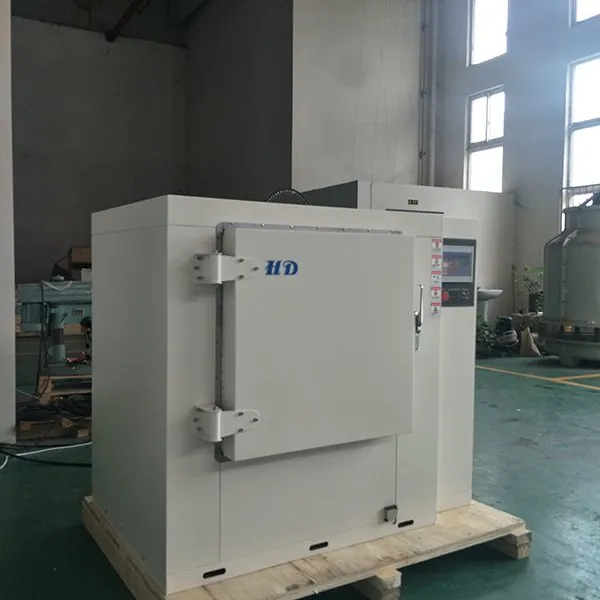

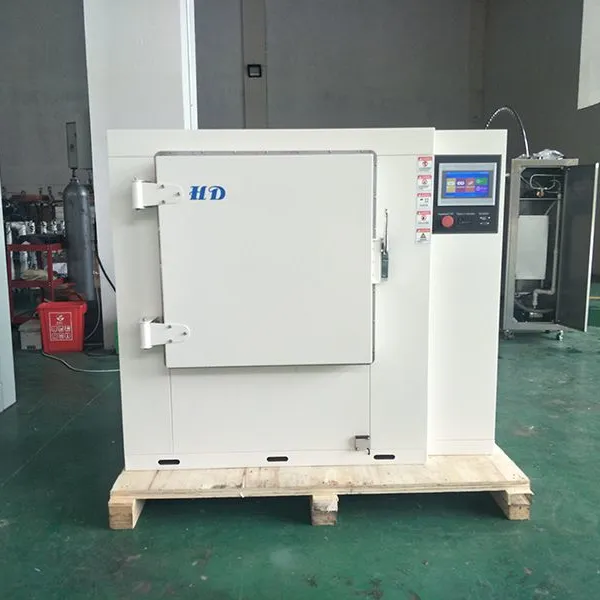

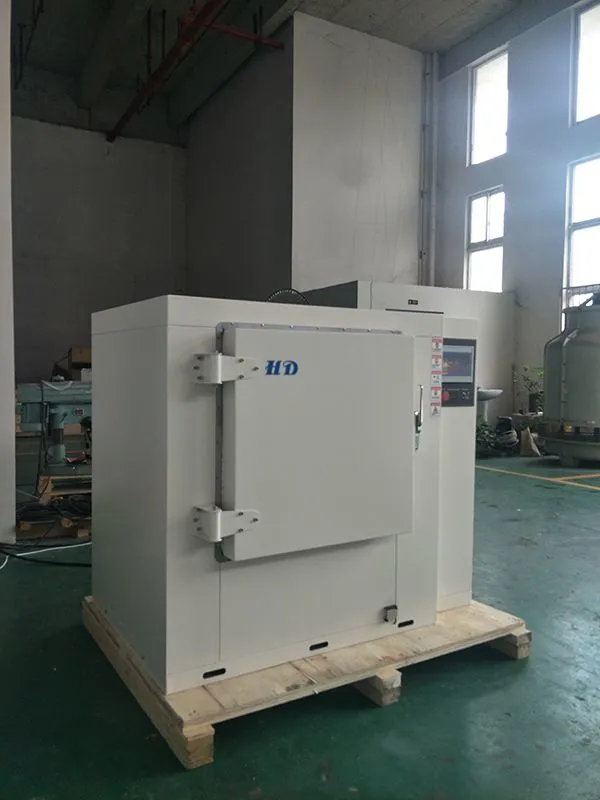

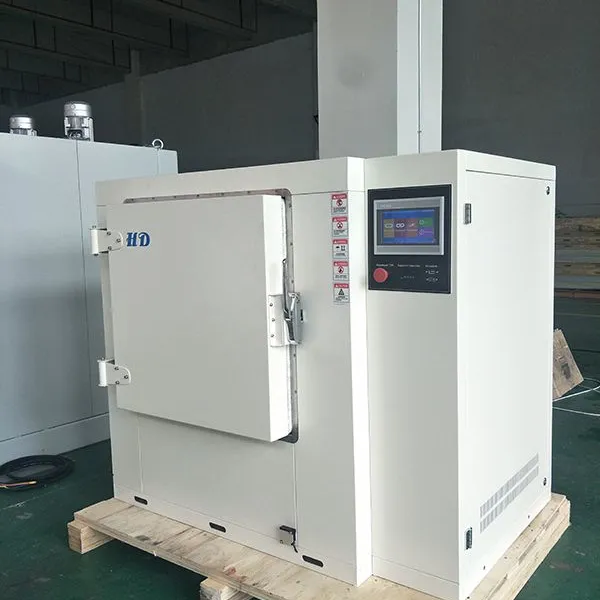

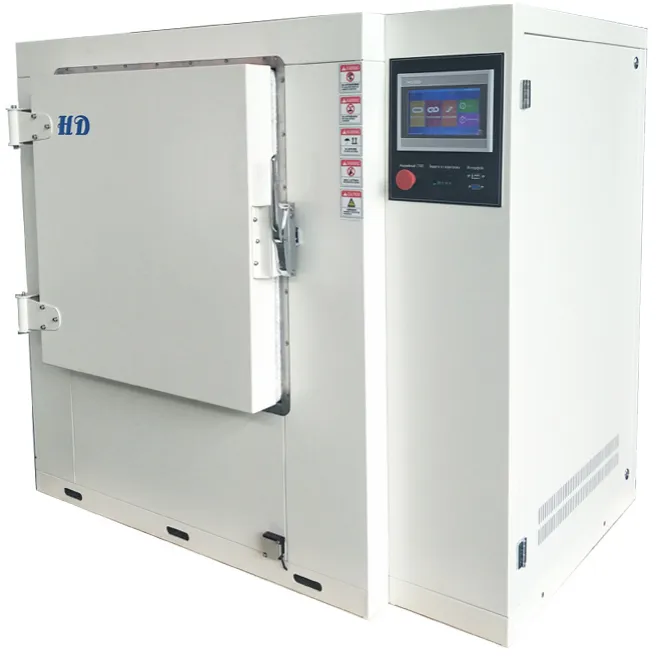

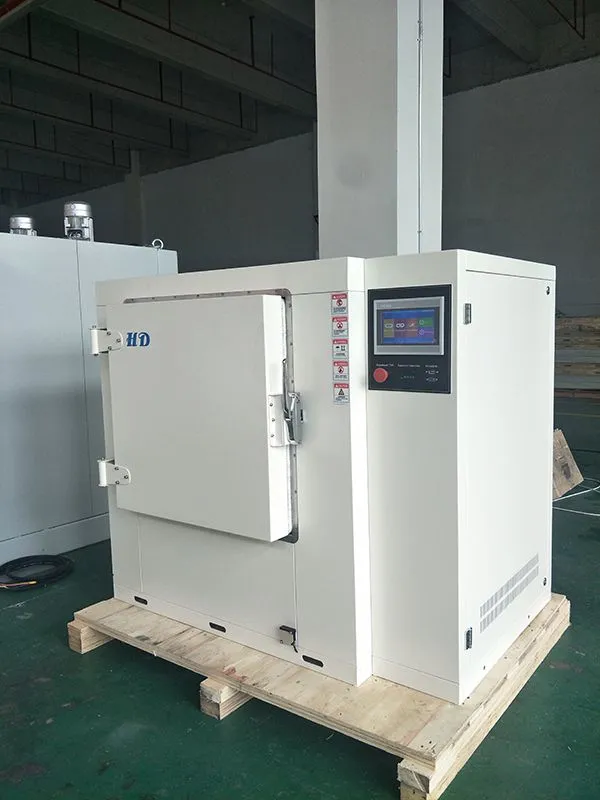

High temperature drying oven
Application:
One of the simulated climate environmental testing equipment, and is suitable for performance testing of various products or materials under high temperature conditions.
It can be used in scientific research units, product quality inspection centers and industrial and mining enterprise laboratories. Widely used in high temperature testing of electrical, electronic products and materials.
Features:
Testing chamber of drying oven is made of stainless steel, and is manufactured by argon arc welding process. Double layers silicone rubber seals and mechanical locking devices effectively seal the test chamber. The shell of the drying oven is made of cold-rolled steel sheet, and the double sides electrostatic epoxy polyester powder is sprayed at 180℃ for curing. The gap between the test chamber shell and the test chamber is filled with centrifugal glass wool felt to achieve the lowest heat loss.
Customers can adjust the height of the shelf as needed to make more efficient use of space.
Forced air convection duct structure; the air duct is located on the lower side of the oven, and the control cabinet is located at the bottom of the oven.
Security:
Have independent over-temperature protection, power supply leakage and circuit protection, to ensure safe operation.
Technical parameter:
Model |
HD-2001WG |
HD-2002WG |
HD-2005WG |
HD-2010WG |
|||
Volume |
101 L |
165 L |
510 L |
1000 L |
|||
Internal dimensions (D*W*H) |
450*450*500 mm |
550*500*600 mm |
850*750*800 mm |
1000*1000*1000 mm |
|||
External dimensions (D*W*H) |
690*1070*820 mm |
770*1120*920 mm |
1070*1390*1120 mm |
1220*1640*1320 mm |
|||
Testing hole |
Φ 32 mm |
||||||
Performance | |||||||
Maximum temperature |
200 ℃ |
||||||
Minimum temperature |
Room temperature + 10℃ |
||||||
Heating time |
Room temperature...200 ℃ ≤ 60min. |
||||||
Temperature fluctuation |
≤ 1 ℃ |
||||||
Temperature gradient |
≤ 2 ℃ |
||||||
Temperature deviation |
± 2 ℃ |
||||||
Controller |
Digital temperature controller, with self tuning PID function; |
||||||
Heater |
Nickel-chromium heating wire |
||||||
Power supply |
220 V |
380 V |
|||||
Power |
2 kW |
3.6 kW |
6.5 kW |
9.5 kW |
|||
Noise |
68 dB(А) |
68 dB(А) |
68 dB(А) |
68 dB(А) |
|||
Model |
HD-3001WG |
HD-3002WG |
HD-3005WG |
HD-3010WG |
||
Volume |
101 L |
165 L |
510 L |
1000 L |
||
Internal dimensions (D*W*H) |
450*450*500 mm |
550*500*600 mm |
850*750*800 mm |
1000*1000*1000 mm |
||
External dimensions (D*W*H) |
690*1070*820 mm |
770*1120*920 mm |
1070*1390*1120 mm |
1220*1640*1320 mm |
||
Testing hole |
Φ 32 mm |
|||||
Performance | ||||||
Maximum temperature |
300 ℃ |
|||||
Minimum temperature |
Room temperature + 10℃ |
|||||
Heating time |
Room temperature...300 ℃ ≤ 90 min. |
|||||
Temperature fluctuation |
≤ 1 ℃ |
|||||
Temperature gradient |
Within 200℃ ≤ 2℃; over 200℃ ≤ 4℃ |
|||||
Temperature deviation |
Within 200℃ ± 2℃; over 200℃ ± 4℃ |
|||||
Controller |
Digital temperature controller, with self tuning PID function; |
|||||
Heater |
Nickel-chromium heating wire |
|||||
Power supply |
220 V |
380 V |
||||
Power |
2 kW |
3.6 kW |
6.5 kW |
9.5 kW |
||
Noise |
68 dB(А) |
68 dB(А) |
68 dB(А) |
68 dB(А) |
||
