In Stock Mq131 Alternative 0-10ppm Ozone Disinfection Used Ozone Sensor Module O3 Ozone Sensor
US$ 25 - 40
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
GAMICOS
Place of Origin:
China
Model Number:
GMQ125
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in China
Delivery Detail:
3 days
Related Products
-
GLT500A 30-500m Steel Tape Battery Deep Well Underground Water Level IndicatorUS$ 149 - 500MOQ: 1 Piece -
GLT500 0-200M Submersible RS485 4-20mA Analog Water Level SensorUS$ 65 - 95MOQ: 1 Piece
-
Ultrasonic Diesel Fuel Tank Level Sensor With GPSUS$ 98 - 110MOQ: 1 Piece
-
GAMICOS Digital GPS Capacitive Diesel Fuel Level Sensor for Truck TankUS$ 58 - 70MOQ: 1 Piece
-
GLT622 Float Type Atg Magnetostrictive Fuel Level Sensor for Gas StationUS$ 1000 - 1200MOQ: 1 Piece
Brand Name
GAMICOS
Place of Origin
China
Model Number
GMQ125
Usage
Gas Sensor
Theory
Other, chemical
Output
Other, Urart
Mq131 alternative 0-10ppm Ozone Disinfection Used Ozone Sensor Module O3 Ozone Sensor
Description
GMQ series ozone sensor module is a general-purpose gas module that combines the electrochemical detection technology developed by our company and the sophisticated circuit design. The use of electrochemical principles to detect the concentration of ozone gas in the air has the characteristics of high sensitivity, high resolution, low power consumption and long service life. Built-in temperature sensor for temperature compensation. UART interface output can be provided to facilitate the back-end reading data.
Features:
1. High sensitivity
2. High resolution
3. Good stability
4. Long service life
5. Strong anti-interference ability
6. Temperature compensation
7. Low power consumption
2. High resolution
3. Good stability
4. Long service life
5. Strong anti-interference ability
6. Temperature compensation
7. Low power consumption
Application
Disinfection cabinets
Portable instruments
Air quality monitoring equipment
Smart home equipment and other places.
Specification
| Model | GMQ125 | GMQ114 |
| Range | 0-10ppm | 0-100ppm |
| Resolution | 0.01ppm | 0.1ppm |
| Output | UART output (3V level) | UART output (3V level) |
| Warm up time | ≤3min | ≤30s |
| Response time | ≤90s | ≤30s |
| Recovery time | ≤90s | ≤30s |
| Working voltage | 3.7~5.5VDC | 5±0.5VDC |
| Working temperature | -10℃~55℃ | -10℃~65℃ |
| Working humidity | 15%~90% RH | 15%~90% RH |
| Storage temperature | -20℃~55℃ | -20℃~65℃ |
| Service life | 2 years (in the air) | 3-5 years (in the air) |
Note:
1.GMQ125 can provide DAC output (0.4 ~ 2V voltage signal corresponding concentration: 0 ~ 10PPM).
2.When using the sensor module, it is necessary to avoid gas interference such as alcohol.

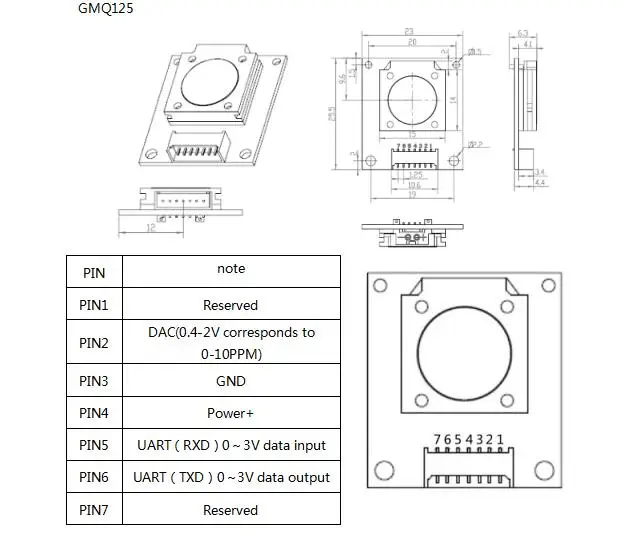

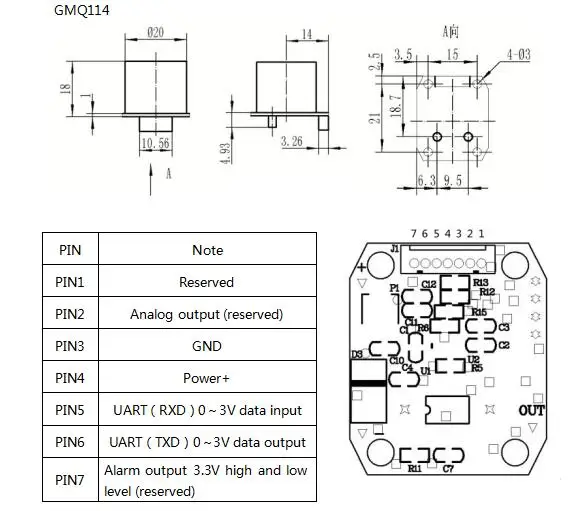

Product size and wiring
2.When using the sensor module, it is necessary to avoid gas interference such as alcohol.
Product size and wiring
